Southbend P32A-GC Platinum Heavy Duty Range

MPN#: P32A-GC
Southbend P32A-GC Platinum Heavy Duty Range
Free Freight?
Quick Ship
$19,580.50 /
$17,578.39 /
or enjoy small payments $377.76/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 19581
  • Please see specification sheet for installation clearance requirements
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Southbend P32A-GC Specifications

BTU 125,000 BTU
Number of Burners1 - 2
Total BTU16000 - 130000
Range Base StyleConvection Oven
Installation TypeFreestanding
Burner StyleGrates
BrandSouthbend
CertificationsNSF
Control TypeManual
HeatGas
Number of Ovens1
Width (in)32
Height (in)41
Depth (in)40.25
Weight800.00

Additional Information on Southbend P32A-GC

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend P32A-GC Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

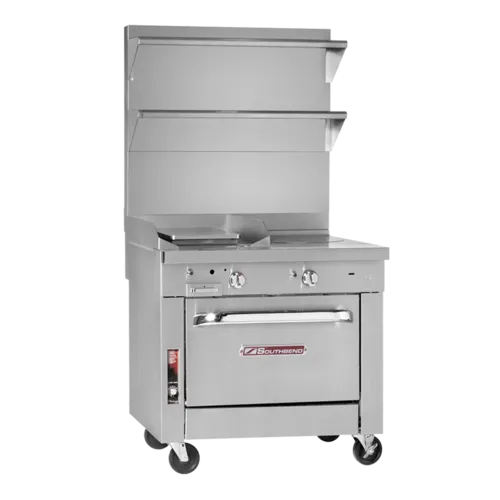

Southbend P32A-GC Description

Platinum Heavy Duty Range, gas, 32", (1) 16" griddle, 1" thick plate, (1) 16" charbroiler, cast iron grates, manual controls, (1) convection oven, includes (3) racks, stainless steel radiants, front, sides, exterior bottom & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF


A 16" griddle, a 16" charbroiler, and a convection oven in one, this 32" heavy-duty commercial gas range allows you to do so much in a single space.

You can cook up burgers and breakfast staples on the manually controlled griddle, which comes with two (2) burners with a total cooking power of 40,000 BTU. The plate has a 1" thickness to retain heat that it can use to speed up recovery and preheat. There are splashes on the rear and sides that protect from spills and splatters.

The charbroiler with four (4) burners and two (2) control knobs boosts the unit by 40,000 BTU. It has stainless steel radiants for even heat distribution on the adjustable and removable grates, which are cast iron to help with heat retention as well. At the high setting, the surface temperature can get up to 600 degrees Fahrenheit so you enjoy more cooking freedom. It has a removable drip tray so you can remove overflow liquids with speed.

The convection oven on this commercial range has a 45,000 BTU burner with a standing pilot and a fan that blows the air at two speeds to make sure that the entire cooking chamber is heated uniformly. You can cook on three (3) different racks with the confidence that each one will turn up perfectly. The temperature can be set between 175 and 550 degrees Fahrenheit using the high-precision thermostatic controls. The oven interior is porcelain enamel in construction so it is easy to clean.

This heavy-duty range has stainless steel front, sides, exterior bottom, and 6" adjustable legs, which can be installed safely on uneven floors. The lining and burner are fully insulated so the unit uses fuel in an efficient manner. The 9.25" deep rail at the front provides convenient work space when you need it. The 5" stainless steel flue riser promotes a safe and comfortable environment by pulling the heat and smoke away from the user and towards your ventilation hood.

This commercial gas range comes with cCSAus, CSA Flame, CSA Star, and NSF certifications. For more high-quality restaurant and heavy-duty ranges and commercial cooking equipment, make sure to browse our full collection!

Platinum Heavy Duty Commercial Gas Range, 32", (1) 16" griddle, 1" thick plate, (1) 16" charbroiler, cast iron grates, manual controls, (1) convection oven, includes (3) racks, stainless steel radiants, front, sides, exterior bottom & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF (Note: Qualifies for Southbend's Service First™ Program, see Service First document for details) (more commercial restaurant ranges and cooking equipment also available)

Standard Features
  • 32" wide sectional range with a convection-oven base
  • 9-1/4" deep front rail
  • Stainless steel front and sides
  • Fully insulated lining and burner box
  • 1-1/4" front gas manifold and 1" rear gas connection
  • 5" high stainless steel flue riser
  • Free battery-design assistance
  • Standard (1) year limited parts and labor warranty
  • More cooking equipment available

16" Charbroiler

  • Two 20,000 BTU NAT (18,000 BTU LP) burners with one high/low control knobs
  • Removable cast iron grates with adjustable front-to-back slope that flip over for either 1/8" or 1/4" grid width
  • 600°F even surface temperature on high setting
  • Stainless steel burner radiants
  • Removable drip tray

16" Griddle

  • Two 20,000 BTU NAT (18,000 BTU LP) burners with one control knob
  • Manual "G", or Thermostatic "T" controls available
  • “Insta-On” thermostatic control of griddle surface temperature in the range 180°F to 400°F
  • Battery spark ignition
  • 1" thick griddle plate with side and rear splashers
  • Removable stainless steel grease drawer

Options & Accesories

  • External pressure regulator
  • Front rail options:
    • Cutouts in front rail for sauce pans
    • 7-1/4" deep front rail (to match old style sectional)
    • Square belly bar mounted on 7-1/4" deep front rail
  • Casters (front two casters lock)
  • Cable restraint kit (to restrict movement when on casters)
  • Stainless steel oven interior
  • 24" or 36" high flue riser
  • Shelves on flue riser (one on 24" flue riser, one or two on 36" flue riser, 10" deep, shelving not available above charbroilers)
  • Tray or tubular shelving (shelving not available above charbroilers, 12" deep)
  • Open-frame base with casters for battery
  • Extra-deep rear-extending flue riser
  • Salamander or cheesemelter mounted on 36" high flue riser
  • Removable shelf inside cabinet
  • Grooved griddle surface (Griddle Only)
  • Chrome griddle surface (Griddle Only)
  • Plated fish grids (Charbroiler only)
  • Additional top configurations available. Contact factory for details
  • Removable, cast iron grate tops
  • Battery spark ignition for open tops
  • Electronic oven pilot ignition (no charge)

Construction

  • Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
  • Front Rail: 9-1/4" deep front rail.
  • Flue Riser: 5" high stainless steel flue riser
  • Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold).
  • Legs: 6" stainless steel adjustable legs standard.
  • Model 32A: 45,000 BTU NAT (45,000 BTU LP) convection oven with standing pilot and thermostat range of 175°F to 550°F (79°C to 288°C). Porcelain enamel interior, measuring 14” high x 26” wide x 24” deep. Three racks with five-position side rails. Two-speed, 1/2 hp blower motor.

Options for Southbend P32A-GC

Charbroiler options
Continuous front rail & belly bar
Top placement
Range depth
Spreaders
Griddle options
Oven options
Gas types
Prison options
Stainless steel options
Extended warranty
Mounting options
Accessories
What is included
  • Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
  • Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)
  • Factory note: NOTE: 5" flue riser, standard
