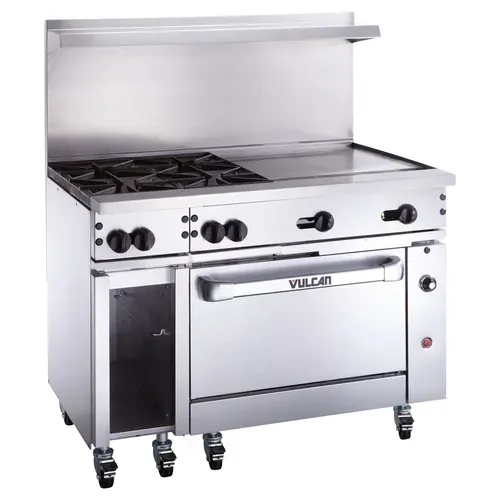

Vulcan 48C-2B36GT Restaurant Gas Range, 48" W with 2 (1) Convection Oven (1) 36" Griddle and Thermostatic Controls, - 155,000 BTU
- Please see specification sheet for installation clearance requirements
Vulcan 48C-2B36GT Specifications
Number of Burners | 1 - 2 |
---|---|
Total BTU | 131000 - 224000 |
BTU | 155,000 BTU |
Burner Type | 30,000 BTU burners |
Range Base Style | Convection Oven |
Burner Style | Tube |
Brand | Vulcan |
Made in | USA |
Quantity of Burners | 2 |
Oven Type | Convection |
Certifications | NSF |
Vent | Backriser With Hi-shelf |
48" Griddle options | (1) 36" Griddle |
Control Type | Thermostatic |
Legs | 6" adjustable legs |
Exterior Finish | Stainless Steel Front & Sides |
Base | Convection Oven |
BTU per Burner | 30000 |
Category | Range, 48" Restaurant, Gas |
Controls | Thermostatic |
Heat | Gas |
Range Configuration | Burners & (1) 36" Griddle |
Width (in) | 48 |
Height (in) | 58 |
Depth (in) | 34 |
Weight | 810.00 |
Additional Information on Vulcan 48C-2B36GT
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 48C-2B36GT Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 48C-2B36GT Description
If your kitchen needs a “Goldilocks” range that’s not too big and not too small and has burners, a thermostatic griddle, and a convection oven, the Vulcan 48C-2B36GT Endurance™ Restaurant Range is a great model to consider. For durability, this 48” wide model uses stainless steel construction on its high shelf, sides, front, and back riser.
The Endurance Series™ from Vulcan offers unrivaled performance in the restaurant-grade range market. WIth a fully MIG welded aluminized frame, little can go wrong with this range over its lifetime. With Vulcan’s Restaurant Gas Ranges operators can be sure that the equipment in their commercial kitchen is up to the task of keeping up with peak demand without issue.
To keep the twin open top burners on this range from consuming too much gas, a single pilot covers both of them. This arrangement uses a shrouded flash tube pilot system that also prevents the pilot from going out due to boilovers and spills. To make sure cleaning and maintenance of the open top burners is as easy as possible, the cast grates easily lift-off, and the burner heads also feature a lift-off design.
For precise griddling control, the 36” wide griddle features a snap action thermostat. To eliminate hot and cold spots while providing plenty of thermal mass, this griddle features a ⅞” thick griddle plate. A 4” wide grease trough fits spatulas for the removal of excess grease and crumbs. A pull-out crumb tray holds excess grease and crumbs and is easily accessible from the front of the range.
To quickly distribute heat in this convection oven a 115v/60/1-ph 4.0 amp blower is used. The oven cavity has a 26-3/8” wide opening and baker’s depth. A 6’ power cord and plug is included for the blower. The oven thermostat can be adjusted from 250°F to 500°F.
The total gas input of this range is 155,000 BTU/hr. More Restaurant Equipment, Cooking Equipment & Commercial Ranges are available.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
