Southbend P16N-X Platinum Heavy Duty Range
MPN#: P16N-X
Free Freight?
Quick Ship
$4,640.00 /
Calculate
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Southbend P16N-X Specifications
| BTU | 45,000 BTU |
|---|---|
| Number of Burners | 1 - 2 |
| Total BTU | 16000 - 130000 |
| Burner Type | 45,000 BTU open burners |
| Burner Style | Grates |
| Installation Type | Modular |
| Range Base Style | Modular Base |
| Brand | Southbend |
| Certifications | NSF |
| Control Type | Manual |
| Heat | Gas |
| Number of Ovens | None |
| Width (in) | 16 |
| Height (in) | 13.5 |
| Depth (in) | 37.5 |
| Weight | 150.00 |

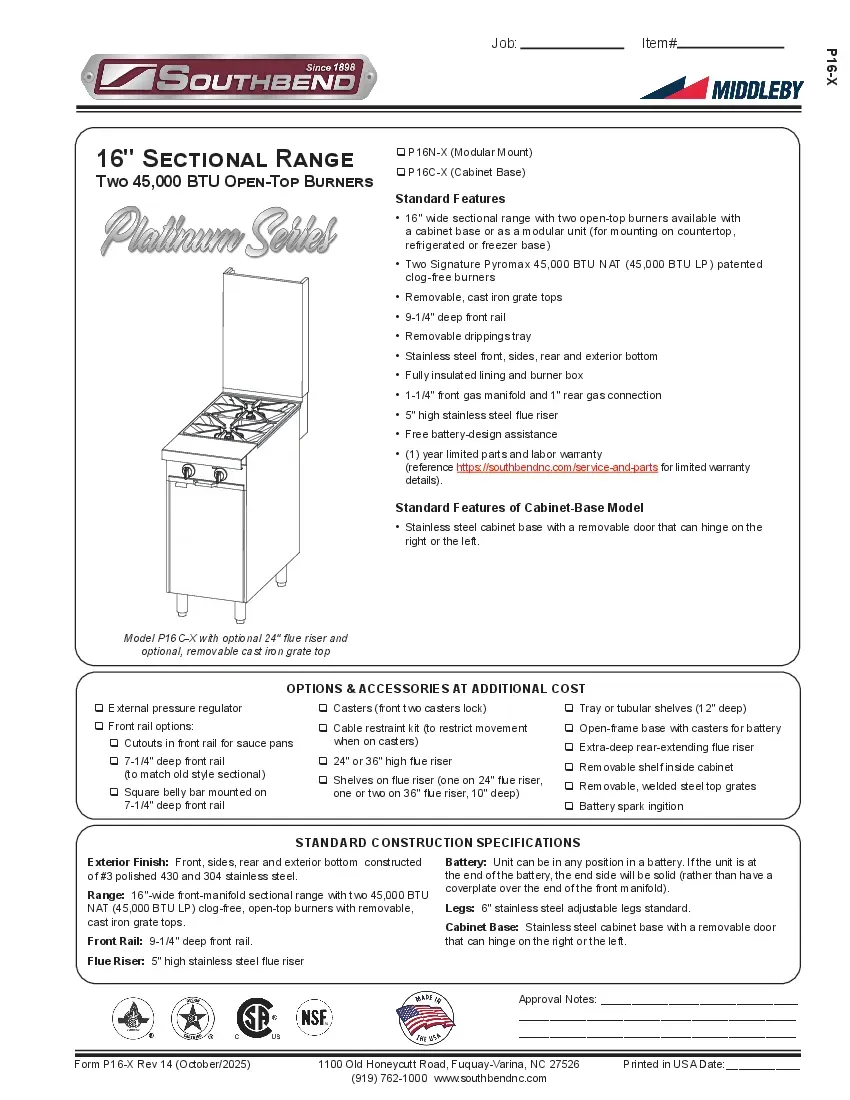

Additional Information on Southbend P16N-X
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Southbend P16N-X Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Southbend P16N-X Description
Platinum Heavy Duty Range, gas, 16", modular, (2) 45,000 BTU open burners, manual controls, stainless steel front, sides, rear & exterior bottom, 90,000 BTU, CSA Flame, CSA Star, cCSAus, NSF
This 16" heavy-duty commercial gas range adds two (2) manually controlled Signature Pyromax open burners right on your counter or refrigerated/freezer base. Boasting a total cooking power of 90,000, these burners have a clog-free design to make regular cleaning much simpler. Each one has a welded steel top grate to create a flat surface where pans and pots can be moved with ease. The grates are removable so they can be thoroughly cleaned. The front has a 9.25" deep front rail and a removable drip tray.
This commercial range is stainless steel on the front, sides, rear, and exterior bottom, making it a robust piece of equipment you can rely on for many years. This unit meets all CSA Flame, CSA Star, cCSAus, and NSF standards.
Browse more high-quality restaurant and heavy-duty ranges and commercial cooking equipment here at CKitchen!
Standard Features:
- 9-1/4" deep front rail
- Removable drippings tray
- Free battery-design assistance
- 5" high stainless steel flue riser
- Removable, welded steel top grate
- Fully insulated lining and burner box
- Stainless steel front, sides, rear, and exterior bottom
- 1-1/4" front gas manifold and 1" rear gas connection
- Two Signature Pyromax 45,000 BTU NAT (45,000 BTU LP) patented clog-free burners
- 16" wide sectional range with two open-top burners available with a cabinet base or as a modular unit (for mounting on countertop, refrigerated or freezer base)
Standard Features of Cabinet-Base Model
- Stainless steel cabinet base with a removable door that can hinge on the right or the left.
Options & Accessories
- Battery spark ignition
- 24" or 36" high flue riser
- External pressure regulator
- Removable, cast iron grate top
- Casters (front two casters lock)
- Removable shelf inside cabinet
- Tray or tubular shelves (12" deep)
- Extra-deep rear-extending flue riser
- Open-frame base with casters for battery
- Cable restraint kit (to restrict movement when on casters)
- Shelves on flue riser (one on 24" flue riser, one or two on 36" flue riser, 10" deep)
- Front rail options:
- Cutouts in front rail for sauce pans
- 7-1/4" deep front rail (to match old style sectional)
- Square belly bar mounted on 7-1/4" deep front rail
Standard Construction Specifications
Exterior Finish: Front, sides, rear, and exterior bottom constructed of #3 polished 430 and 304 stainless steel. Range: 16"-wide front-manifold sectional range with two 45,000 BTU NAT (45,000 BTU LP) clog-free, open-top burners with removable, welded steel top grate. Front Rail: 9-1/4" deep front rail. Flue Riser: 5" high stainless steel flue riser. Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold). Legs: 6" stainless steel adjustable legs standard. Cabinet Base: Stainless steel cabinet base with a removable door that can hinge on the right or the left.
