Southbend P16N-H Platinum Heavy Duty Range
Calculate
- Please see specification sheet for installation clearance requirements
Southbend P16N-H Specifications
| Number of Burners | 1 - 2 |
|---|---|
| Total BTU | 16000 - 130000 |
| Burner Style | Hot top |
| Installation Type | Modular |
| Range Base Style | Modular Base |
| Brand | Southbend |
| Certifications | NSF |
| Control Type | Manual |
| BTU | 40,000 BTU |
| Heat | Gas |
| Number of Ovens | None |
| Width (in) | 16 |
| Height (in) | 13.5 |
| Depth (in) | 37.5 |
| Weight | 150.00 |
Additional Information on Southbend P16N-H

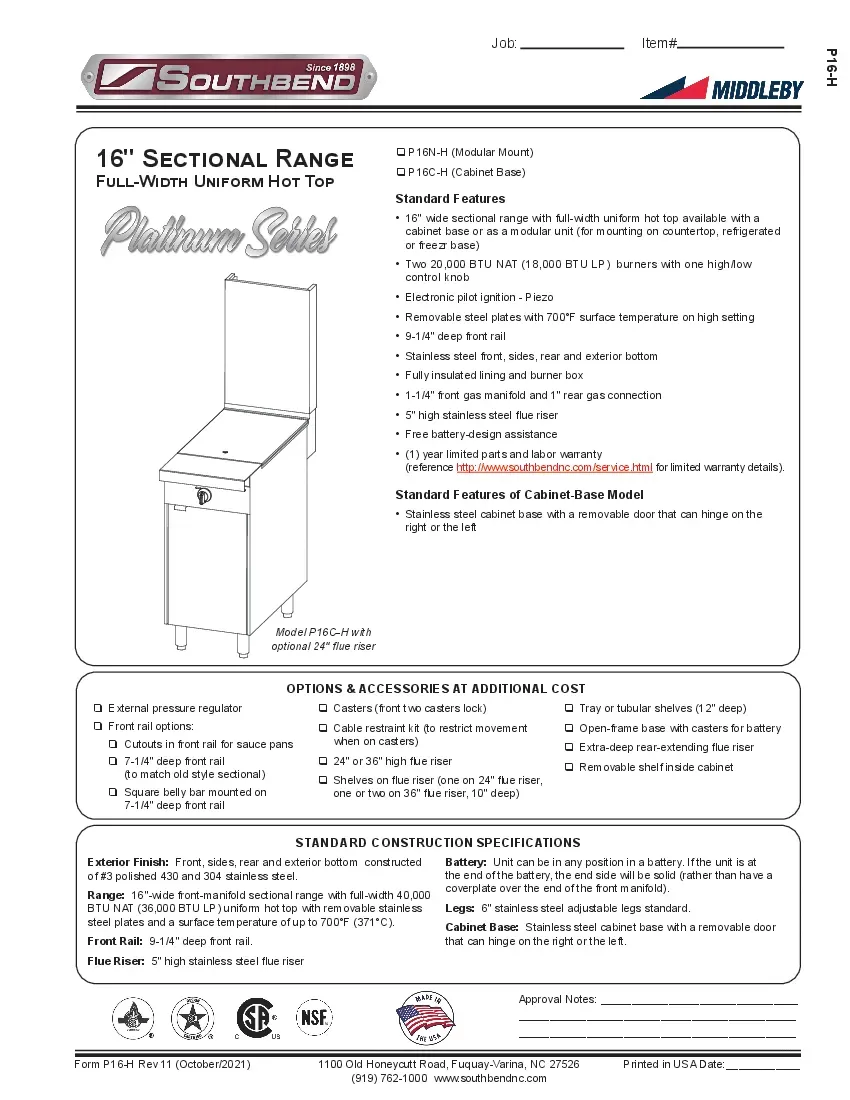

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Southbend P16N-H Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Southbend P16N-H Description
This 16" heavy-duty commercial gas range makes it easy to add a steel hot top to your existing kitchen. Powered by two (2) manually controlled burners, the hot top comes with removable steel plates that can get as hot as 700 degrees Fahrenheit to accommodate a wide variety of recipes. You can easily turn on the hot top using the piezo ignition, which doesn't require a match or lighter.
Designed to perform in the busiest environments, this commercial range is made of stainless steel including the front and sides, rear, and exterior bottom. The lining and the burner box have full insulation to assist in maintaining a consistent temperature. The heat and gases coming from the hot top are diverted away from users by the 5" stainless steel flue riser, making the space effortlessly safe and comfortable. There is a spacious 9.25" deep rail that you can use as additional workspace.
This heavy-duty range meets all CSA Flame, CSA Star, and cCSAus standards. The unit can be integrated into a battery in any position.
Need more premium-quality restaurant and heavy-duty ranges and commercial cooking equipment? CKitchen's got you covered!
Standard Features:
- 9-1/4" deep front rail
- Electronic pilot ignition - Piezo
- Free battery-design assistance
- 5" high stainless steel flue riser
- Fully insulated lining and burner box
- Stainless steel front, sides, rear and exterior bottom
- 1-1/4" front gas manifold and 1" rear gas connection
- Removable steel plates with 700°F surface temperature on high setting
- Two 20,000 BTU NAT (18,000 BTU LP) burners with one high/low control knob
- 16" wide sectional range with full-width uniform hot top available with a cabinet base or as a modular unit (for mounting on countertop, refrigerated or freezer base)
- Stainless steel cabinet base with a removable door that can hinge on the right or the left
- 24" or 36" high flue riser
- External pressure regulator
- Casters (front two casters lock)
- Removable shelf inside cabinet
- Tray or tubular shelves (12" deep)
- Extra-deep rear-extending flue riser
- Open-frame base with casters for battery
- Cable restraint kit (to restrict movement when on casters)
- Shelves on flue riser (one on 24" flue riser, one or two on 36" flue riser, 10" deep)
- Front rail options:
- Cutouts in front rail for sauce pans
- 7-1/4" deep front rail (to match old style sectional)
- Square belly bar mounted on 7-1/4" deep front rail
