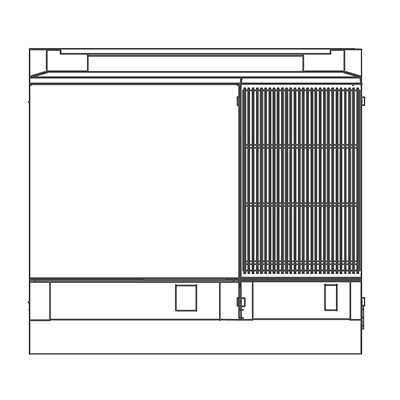

Southbend P36N-TTC Commercial Range, 36" W with (1) 24" Griddle & (1) 12" Charbroiler and Modular Base - 96,000 BTU

MPN#: P36N-TTC
Made in USA
Free Freight?
Quick Ship
$12,812.00
$11,501.97
or enjoy small payments $247.18/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 12812
  • Please see specification sheet for installation clearance requirements
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Southbend P36N-TTC Specifications

Number of Burners1 - 2
Total BTU16000 - 130000
Burner StyleGriddle Top
Installation TypeModular
Range Base StyleModular Base
BrandSouthbend
Made inUSA
CertificationsNSF
Control TypeThermostatic
BTU96,000 BTU
HeatGas
Number of OvensNone
Range Configuration(1) 24" Griddle & (1) 12" Charbroiler
Width (in)36
Height (in)13.5
Depth (in)37.75
Weight390.00

Additional Information on Southbend P36N-TTC

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend P36N-TTC Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Southbend P36N-TTC Description

Platinum Heavy Duty Range, gas, 36", modular, (1) 24" griddle, (1) 12" charbroiler, thermostatic controls, battery spark ignition, stainless steel front, sides, rear & exterior bottom, 96,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA


This 36" heavy-duty commercial gas range allows you to install a griddle and charbroiler on your counter, refrigerated base, or freezer base, so you can save space and still boost your production capacity. Built to handle the most exacting cooking jobs, this unit has stainless steel front, sides, and exterior bottom.

The griddle measures 24" and comes with four (4) 16,000 BTU burners. The 1" thick plate holds heat well to accelerate the preheating and recovery in between use. With the thermostatic controls, you can set the exact temperature within the temperature range of 180 degrees and 400 degrees Fahrenheit to get desired results every single time. Splash guards surrounding the rear and sides help prevent spills and splatters from escaping to nearby equipment and surfaces. For easy maintenance, the stainless steel grease drawer can be removed.

The 12" charbroiler comes with two (2) 16,000 BTU burners and stainless steel radiants that evenly heat the cast-iron grates to eliminate any cold and hot spots for uniform cooking results. The charbroiler can cook with temperatures of up to 600 degrees Fahrenheit. You can remove or adjust the grates so you can customize the setup to fit the needs of each recipe. The cast iron has heat-retaining abilities so the charbroiler won't take long to preheat or recover after each cooking session. The removable drip tray makes maintenance a breeze.

For increased efficiency and functionality, this commercial range has a 9.25" deep front rail and fully insulated lining and burner box. The 5" high stainless steel flue riser draws the heat and smoke produced by the unit away from the users and towards the ventilation hood.

This heavy-duty range meets all cCSAus, CSA Flame, CSA Star, and NSF standards. Build a kitchen that suits your every unique need with our amazing selection of premium-quality restaurant and heavy-duty ranges and commercial cooking equipment

Options for Southbend P36N-TTC

Charbroiler options
Continuous front rail & belly bar
Range depth
Mounting note
Griddle options
Gas types
Prison options
Stainless steel options
Extended warranty
Mounting options
Accessories
What is included
  • Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
  • Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)
  • Factory note: NOTE: 5" flue riser, standard
