Southbend P36N-XX Commercial Range, 36" W with 4 Burners and Modular Base - 180,000 BTU

MPN#: P36N-XX
Free Freight?
Quick Ship
$7,158.50
$6,426.54
or enjoy small payments $138.11/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 7159
  • Please see specification sheet for installation clearance requirements

Southbend P36N-XX Specifications

Total BTU131000 - 224000
Number of Burners3 - 5
Quantity of Burners4 Burners
Burner Type45,000 BTU open burners
Burner StyleGrates
Installation TypeModular
Range Base StyleModular Base
BrandSouthbend
CertificationsNSF
Control TypeManual
BTU180,000 BTU
HeatGas
Number of OvensNone
Width (in)36
Height (in)13.5
Depth (in)37.5
Weight375.00

Additional Information on Southbend P36N-XX

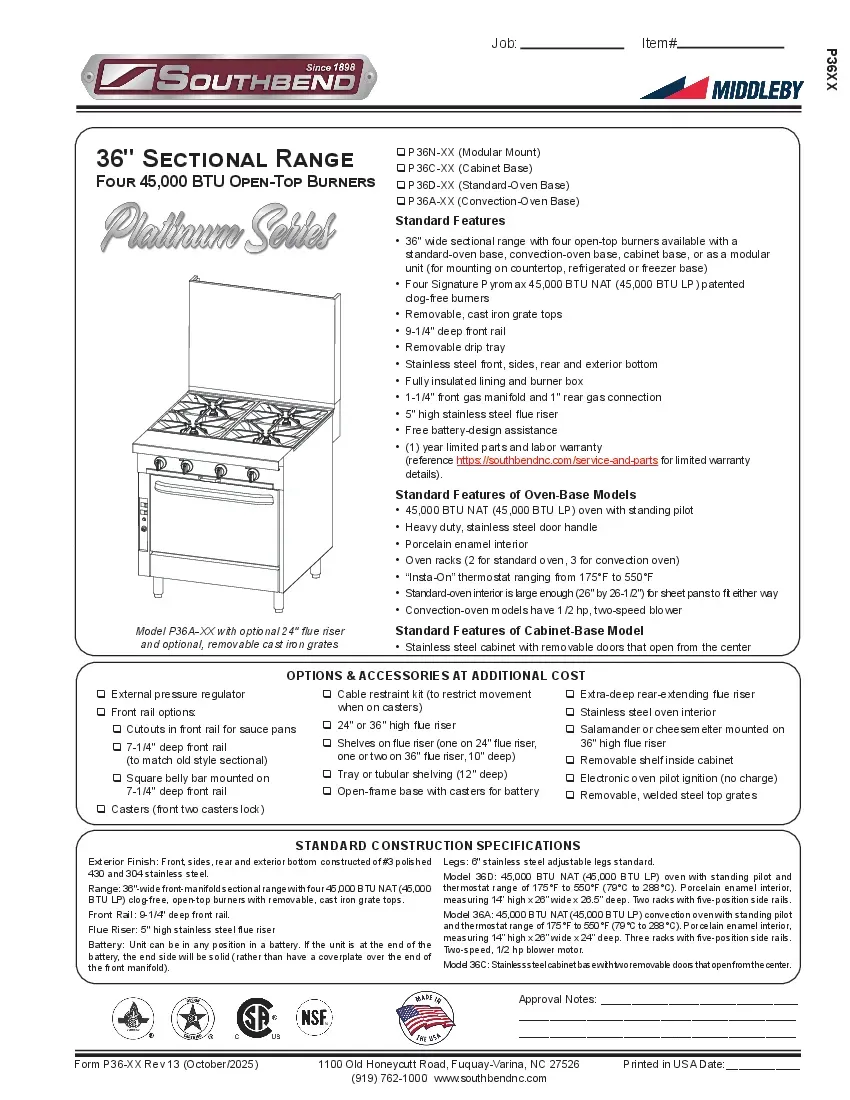

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend P36N-XX Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Southbend P36N-XX Description

Platinum Heavy Duty Range, gas, 36", modular, (4) 45,000 BTU open burners, manual controls, stainless steel front, sides, rear & exterior bottom, 180,000 BTU, CSA, NSF


With this 36" heavy-duty commercial gas range, you don't need additional floor space to add open burners. It can be installed on a counter, refrigerated base, or freezer base. The stainless steel front, sides, rear, and exterior bottom make for a tough and sleek piece of cooking equipment that boosts your production line.

The Signature Pyromax burners that each deliver cooking power of up to 45,000 BTU. They are designed to prevent clogging, which helps keep the gas flow and flame strength optimal and cleaning much easier. A removable welded steel top grate is mounted on each open burner to create a flat smooth surface where pots and pans are placed and can be safely moved around as needed. A removable drip tray saves you time and labor on maintenance.

This commercial range has a 9.25" deep front rail and fully insulated lining and burner box. The 5" stainless steel flue riser assists in clearing the space of heat and smoke coming from the unit by moving it towards the ventilation hood.

This heavy-duty range comes with CSA and NSF certifications. For more high-quality restaurant and heavy-duty ranges and commercial cooking equipment, we have a great collection you can check out!

Options for Southbend P36N-XX

Continuous front rail & belly bar
Range depth
Grate option
Flame failure & spark ignition
Top option in lieu of open burners
Mounting note
Gas types
Prison options
Stainless steel options
Extended warranty
Mounting options
What is included
  • Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
  • Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)
  • Factory note: NOTE: 5" flue riser, standard
