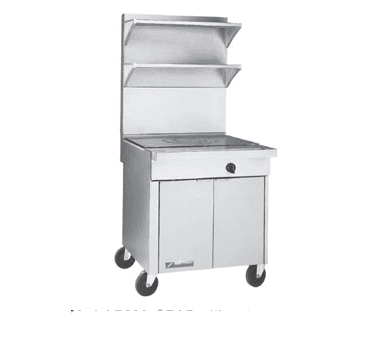

Southbend P36D-GRAD Commercial Range, 36" W with Graduated Hot Top and Standard Oven - 107,000 BTU

MPN#: P36D-GRAD
Free Freight?
Quick Ship
$12,852.00 /
$11,537.88 /
or enjoy small payments $247.95/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 12852
  • Please see specification sheet for installation clearance requirements
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Southbend P36D-GRAD Specifications

Number of Burners1 - 2
BTU107,000 BTU
Total BTU16000 - 130000
Installation TypeFreestanding
Burner StyleHot top
Range Base StyleStandard Oven
BrandSouthbend
CertificationsNSF
Control TypeManual
HeatGas
Number of Ovens1
Range ConfigurationGraduated Hot Top
Width (in)36
Height (in)41
Depth (in)37.5
Weight630.00

Additional Information on Southbend P36D-GRAD

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend P36D-GRAD Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Southbend P36D-GRAD Description

Platinum Heavy Duty Range, gas, 36", graduated hot top, manual controls, battery spark ignition, (1) standard oven, includes (2) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 107,000 BTU, CSA, NSF


This 36" heavy-duty commercial gas range is a full-width graduated hot top and a standard oven in one convenient unit. With the stainless steel front, sides, rear, exterior bottom, and 6" legs, this unit is a strong piece of cooking equipment you can depend on every single day. The legs can be set to different heights for installation on uneven flooring.

The graduated hot top is powered by a 62,000 BTU burner. The removable steel plates can get as hot as 900 degrees Fahrenheit at the center. The standard oven comes with a 45,000 BTU burner with a standing pilot and a temperature range of 175 degrees to 550 degrees Fahrenheit. With the thermostatic controls, you can set the exact temperature to create the perfect environment for each recipe. The cooking chamber is spacious, measuring 26" by 26.5" to fit sheet pans in either direction. There are two (2) racks, which you can set at five (5) different positions depending on how you want each dish to bake. The interior is made of porcelain enamel for easy cleaning.

This commercial range is made more functional and efficient with the 9.25" deep rail and the fully insulated lining and burner. The 5" stainless steel flue riser diverts the heat and smoke produced by the unit away from the users and towards the ventilation hood to maintain a safe and cool environment for users.

This heavy-duty range comes with CSA and NSF certifications. Check out the best restaurant and heavy-duty ranges and commercial cooking equipment at the best prices only here at CKitchen!

Options for Southbend P36D-GRAD

Continuous front rail & belly bar
Range depth
Oven options
Gas types
Prison options
Stainless steel options
Extended warranty
Mounting options
What is included
  • Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
  • Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)
  • Factory note: NOTE: 5" flue riser, standard

Southbend P36D-GRAD Accessories

Southbend PCF48 Caster Frame PCF48
$4,095.00
Southbend PCF64 Caster Frame PCF64
$4,882.50
Southbend PCF72 Caster Frame PCF72
$5,565.00
Southbend PCF80 Caster Frame PCF80
$6,142.50
Southbend PCF96 Caster Frame PCF96
$6,602.00

Southbend P36D-GRAD Parts

All Southbend P36D-GRAD Parts
