Southbend P12C-B Platinum Heavy Duty Range
MPN#: P12C-B
Free Freight?
Quick Ship
$4,507.00 /
Calculate
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Southbend P12C-B Specifications
| BTU | 35,000 BTU |
|---|---|
| Number of Burners | 1 - 2 |
| Total BTU | 16000 - 130000 |
| Burner Type | 35,000 BTU open burners |
| Installation Type | Freestanding |
| Burner Style | Grates |
| Range Base Style | Storage Base |
| Brand | Southbend |
| Certifications | NSF |
| Control Type | Manual |
| Heat | Gas |
| Number of Ovens | None |
| Width (in) | 12 |
| Height (in) | 41 |
| Depth (in) | 37.5 |
| Weight | 200.00 |
Additional Information on Southbend P12C-B

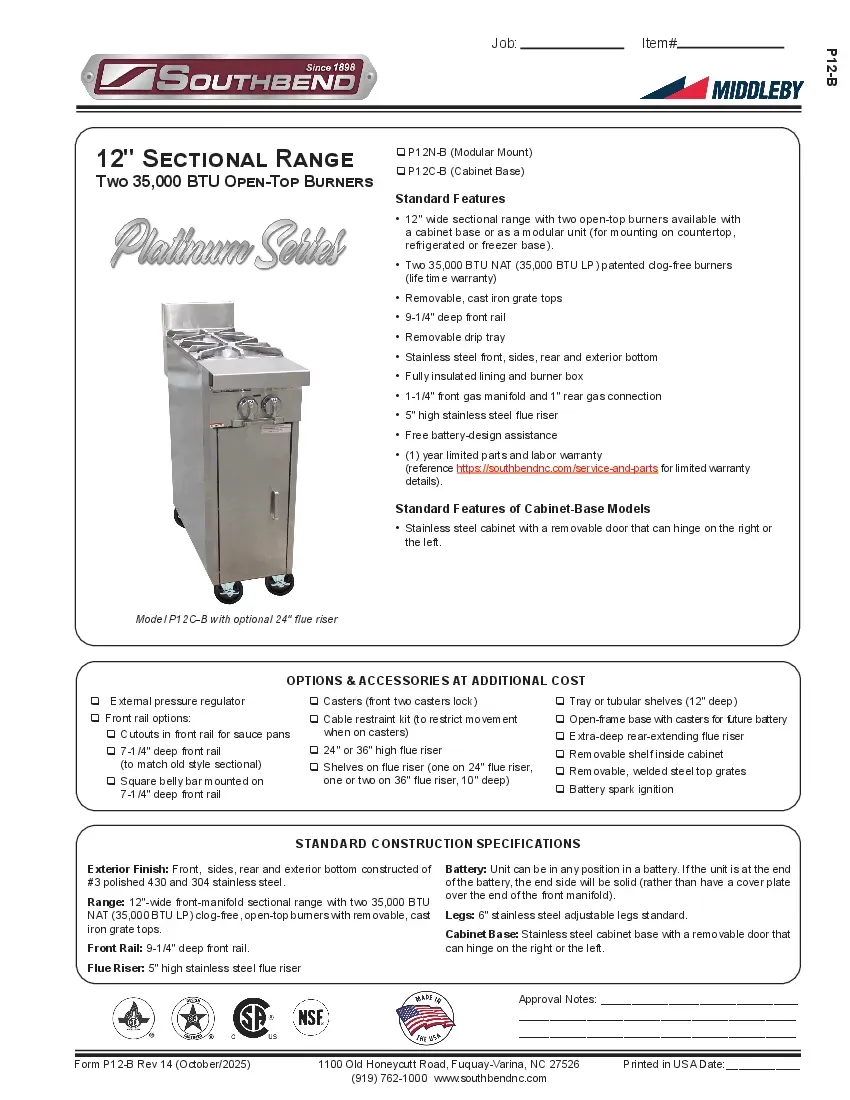

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Southbend P12C-B Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Southbend P12C-B Description
Platinum Heavy Duty Range, gas, 12", (2) 35,000 BTU open burners, manual controls, cabinet base, removable top grates & drip tray, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 70,000 BTU, CSA Flame, CSA Star, cCSAus, NSF
This 12" heavy-duty commercial gas range has two (2) 35,000 BTU open burners and a storage cabinet at the base, creating a reliable and powerful cooking station. The burners are manually controlled for easy operation and a clog-free design for smooth and seamless cooking. Each one has a top grate that creates a flat cooking surface where moving pots and pans becomes easier. These grates are also removable as well as the drip tray for thorough cleaning and maintenance. Built to withstand the rigors of daily use, this commercial range is stainless steel on the front, sides, rear, exterior bottom, and legs, which are 6" tall and adjustable to accommodate uneven floors. This unit meets all CSA Star, cCSAus, and NSF standards.
For more high-quality restaurant and heavy-duty ranges and commercial cooking equipment, make sure to browse our full collection!
Standard Features:
- Removable drip tray
- 9-1/4" deep front rail
- Free battery-design assistance
- 5" high stainless steel flue riser
- Removable, welded steel top grate
- Fully insulated lining and burner box
- Stainless steel front, sides, rear, and exterior bottom
- 1-1/4" front gas manifold and 1" rear gas connection
- Two 35,000 BTU NAT (35,000 BTU LP) patented clog-free burners (lifetime warranty)
- 12" wide sectional range with two open-top burners available with a cabinet base or as a modular unit (for mounting on countertop, refrigerated or freezer base).
Standard Features of Cabinet-Base Models
- Stainless steel cabinet with a removable door that can hinge on the right or the left.
Options & Accessories
- Battery spark ignition
- 24" or 36" high flue riser
- External pressure regulator
- Removable, cast iron grate top
- Casters (front two casters lock)
- Removable shelf inside cabinet
- Tray or tubular shelves (12" deep)
- Extra-deep rear-extending flue riser
- Open-frame base with casters for future battery
- Cable restraint kit (to restrict movement when on casters)
- Shelves on flue riser (one on 24" flue riser, one or two on 36" flue riser, 10" deep)
- Front rail options:
- Cutouts in front rail for saucepans
- 7-1/4" deep front rail (to match old style sectional)
- Square belly bar mounted on 7-1/4" deep front rail
Standard Construction Specifications
Exterior Finish: Front, sides, rear, and exterior bottom constructed of #3 polished 430 and 304 stainless steel. Range: 12"-wide front-manifold sectional range with two 35,000 BTU NAT (35,000 BTU LP) clog-free, open-top burners with removable, welded steel top grate. Front Rail: 9-1/4" deep front rail. Flue Riser: 5" high stainless steel flue riser. Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a cover plate over the end of the front manifold). Legs: 6" stainless steel adjustable legs standard. Cabinet Base: Stainless steel cabinet base with a removable door that can hinge on the right or the left.
