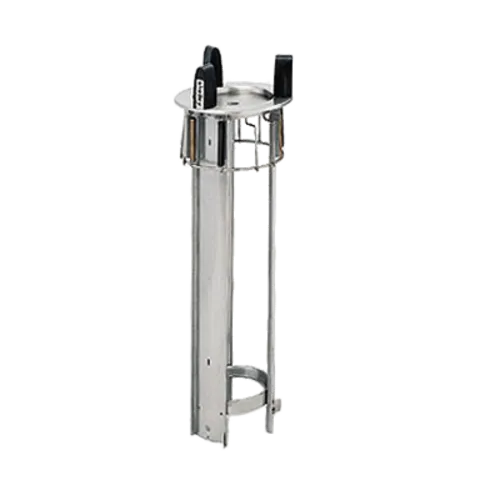

Delfield DIS-725-ET Heated Shielded Round Drop-In Dish Dispenser for 6 1/2" to 7-1/4" Dishes

MPN#: DIS-725-ET
Delfield DIS-725-ET Heated Shielded Round Drop-In Dish Dispenser for 6 1/2" to 7-1/4" Dishes

Call us for price

1-800-555-0666

Delfield DIS-725-ET Specifications

BrandDelfield
CertificationsNSF
TypeHeated
Dish Diameterfor 6 1/2" to 7-1/4" Dishes
ShapeRound
StyleShielded
Voltage120 Volts
Height (in)28
Weight21

Additional Information on Delfield DIS-725-ET

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-725-ET Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-725-ET Description

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size 7-1/4" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 10", flange diameter 10-5/8", 4.0 kW, cUL, UL, NSF (contact factory for price)

The Delfield DIS-725-ET drop-in dispenser is an excellent addition to any foodservice operation looking to convert a 28" high space into an even-temp heated storage area for 6.5" to 7.25" diameter dishware. This unit has a capacity of 72 plates or a stack height of 24". The cutout diameter is at 9.25" while the top flange diameter is 9.87".

Engineered for longevity, this unit has rugged and easy-to-clean stainless steel from the outer jacket, the welded rods and a removable plate on the dish carrier head to the top flange, vertical side channels, and bottom brace all welded together, providing excellent weight support and protection from contamination. The top flange is encircled by three high-impact guideposts to keep the top plates stable.

The tube can easily be switched on and off and is equipped with a 400-watt convection heating element and a fan motor, warming the plates at 120 to 140 degrees Fahrenheit, which you can adjust using the thermostat located inside the motor housing. With the air intake filter in tow, the plates are protected from dirt and other foreign particles.

This dish dispenser levels the stack automatically after a plate is taken so there’s always a clean dish ready. Stainless steel spring supports are easy to attach or remove so you can reduce or boost the tension according to the weight of the stack.

This Delfield drop-in dish dispenser comes with cUL, UL, and NSF certifications. A 4' (2.7m) cord with NEMA 5-15P plug is included. You’ll also get a one-year warranty on parts and a 90-day standard warranty on labor.

Get the best food holding and warming equipment at the best prices only here at CKitchen!

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size 7-1/4" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 10", flange diameter 10-5/8", cUL, UL, NSF

Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
  • DIS-ET/QT Series Only
    • 4’ cord and plug
    • Filtered air intake
    • Outer stainless steel jacket
    • QT- Shall have a stainless steel cover
    • On/off switch and adjustable thermostat
    • Convection heating module and fan motor
    • ET temperature range is 120-140°F (49-60°C)
    • QT temperature range is 150-170°F (66-77°C)
Options & Accessories
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.

Options for Delfield DIS-725-ET

Lift gate option
What is included
  • Voltage: 120v/60/1-ph, 5.5 amps, NEMA 5-15P, standard
