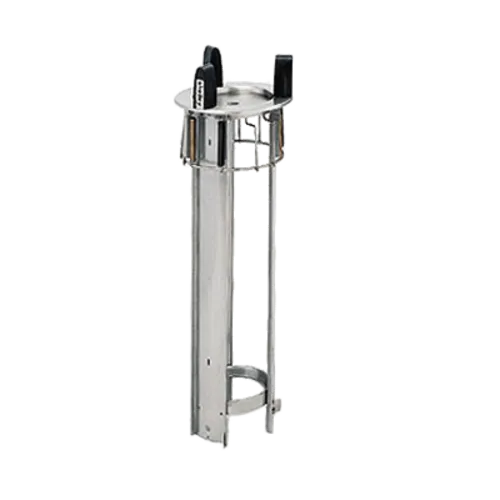

Delfield DIS-500-ET Heated Shielded Round Drop-In Dish Dispenser for 3" to 5" Dishes

MPN#: DIS-500-ET
Delfield DIS-500-ET Heated Shielded Round Drop-In Dish Dispenser for 3" to 5" Dishes

Call us for price

1-800-555-0666

Delfield DIS-500-ET Specifications

BrandDelfield
CertificationsNSF
TypeHeated
Dish Diameterfor 3" to 5" Dishes
ShapeRound
StyleShielded
Voltage120 Volts
Height (in)28
Weight17

Additional Information on Delfield DIS-500-ET

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-500-ET Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-500-ET Description

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 5" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 7-3/4", flange diameter 8-3/8", 4.0 kW, cUL, UL, NSF (contact factory for price)

Made to fit in 28" high spaces in the kitchen, the DIS-500-ET drop-in even-temp heated dish dispenser seamlessly adds a storage, heating, and dispensing station that can hold a 24" stack of dishware measuring 3" to 5" in diameter. The dispensing tube is evenly heated at 120°F to 140°F using a 400-watt convection module heating element with fan motor.

The tube can be easily switched on and off while a thermostat allows you to set the temperature. for ease of operation and flexibility. The stack automatically raises after the top plate is removed for immediate access to clean, hot plates.

This drop-in dish dispenser tube features all stainless steel vertical side channels, bottom brace, and top flange, making it super easy to clean and reliably sturdy. The stainless steel welded rods with stainless steel top plate enhance the unit’s durability. Three (3) high-impact guideposts are mounted on the flange to keep the stack of plates from wobbling or falling off. Stainless steel spring supports can be removed so you can set the proper tension and height of the existing stack.

This Delfield drop-in even-temp dish dispenser comes with cUL, UL, and NSF certifications. It is rated at  5.5 amps and requires a 120/60/1 electrical connection. 4' (2.7m) cord with NEMA 5-15P plug supplied. Enjoy a one-year parts warranty and a 90-day labor standard warranty.

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 5" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 7-3/4", flange diameter 8-3/8", cUL, UL, NSF

Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
  • DIS-ET/QT Series Only
    • 4’ cord and plug
    • Filtered air intake
    • Outer stainless steel jacket
    • QT- Shall have a stainless steel cover
    • On/off switch and adjustable thermostat
    • Convection heating module and fan motor
    • ET temperature range is 120-140°F (49-60°C)
    • QT temperature range is 150-170°F (66-77°C)
Options & Accessories
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.

Options for Delfield DIS-500-ET

Lift gate option
What is included
  • Voltage: 120v/60/1-ph, 5.5 amps, NEMA 5-15P, standard
