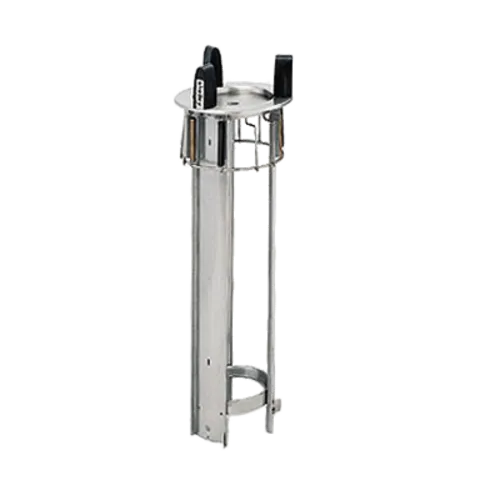

Delfield DIS-650 Unheated Open Round Drop-In Dish Dispenser for 5-3/4" to 6-1/2" Dishes

MPN#: DIS-650
Delfield DIS-650 Unheated Open Round Drop-In Dish Dispenser for 5-3/4" to 6-1/2" Dishes

Call us for price

1-800-555-0666

Delfield DIS-650 Specifications

BrandDelfield
CertificationsNSF
TypeUnheated
Dish Diameterfor 5-3/4" to 6-1/2" Dishes
ShapeRound
StyleOpen
Height (in)28
Weight9

Additional Information on Delfield DIS-650

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-650 Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-650 Description

Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 6-1/2" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 9-1/4", flange diameter 9-7/8", cUL, UL, NSF (contact factory for price)

This DIS-650 drop-in dish dispenser is great for stacking and heating bread and butter plates or any small dishware with a diameter of 5.75" to 6.5". Designed for 28" high spaces with a 9.25" diameter cutout and a 9.87" diameter top flange, this unit should easily accommodate 72 plates or a maximum stack height of 24".

For instant access to the plates, the self-leveling mechanism slowly raises the stack after the topmost plates are removed. With the stainless steel spring supports that can be added or taken out in the field, you can always set the height just above the flange.

The tube and exterior have a stainless steel construction as well as the vertical side channels, top supporting flange, and bottom brace, which are also welded together for excellent weight support. The dish carrier head is made of stainless steel welded rods and a removable stainless steel plate. There are also three guideposts keep the stack of plates balanced during transport.

This Delfield drop-in dish dispenser is cUL, UL, and NSF-approved. Enjoy a one-year parts warranty and a 90-day labor standard warranty.

Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 6-1/2" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 9-1/4", flange diameter 9-7/8", cUL, UL, NSF

Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
  • DIS-ET/QT Series Only
    • 4’ cord and plug
    • Filtered air intake
    • Outer stainless steel jacket
    • QT- Shall have a stainless steel cover
    • On/off switch and adjustable thermostat
    • Convection heating module and fan motor
    • ET temperature range is 120-140°F (49-60°C)
    • QT temperature range is 150-170°F (66-77°C)
Options & Accessories
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.
