Delfield DIS-500 Unheated Open Round Drop-In Dish Dispenser for 3" to 5" Dishes

MPN#: DIS-500
Delfield DIS-500 Unheated Open Round Drop-In Dish Dispenser for 3" to 5" Dishes

Call us for price

1-800-555-0666

Delfield DIS-500 Specifications

BrandDelfield
CertificationsNSF
TypeUnheated
Dish Diameterfor 3" to 5" Dishes
ShapeRound
StyleOpen
Height (in)28
Weight7

Additional Information on Delfield DIS-500

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-500 Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-500 Description

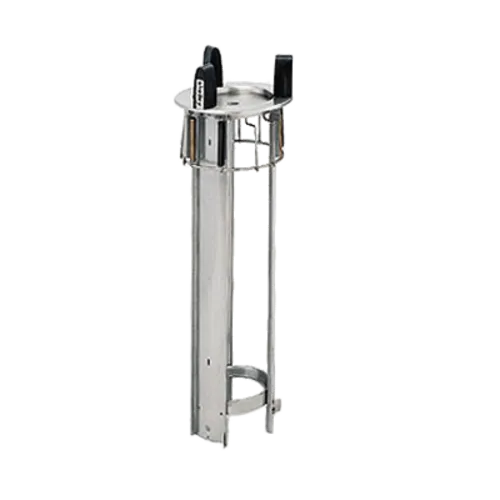

Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 5" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 7-3/4", flange diameter 8-3/8", cUL, UL, NSF (contact factory for price)

If you need a stack of clean small dishware readily accessible, store yours on the Delfield DIS-500 dish dispenser for 3 to 5" diameter plates. This dish dispenser has a 28" depth, a 7.75" diameter cutout, and an 8.37" diameter flange to easily accommodate a stack of 72 plates or a max height of 24". The tube slowly and safely raises the stack after a plate is removed so customers or staff members can easily get one when needed. You can even add or detach the stainless steel spring supports from the side channels to bring the stack of plates to a safe, ergonomic height.

The tube has stainless steel on the three (3) vertical side channels, top supporting flange, and bottom brace so that it has a labor-saving, corrosion-resistant dish dispenser. To safeguard the plates, the dish carrier head features stainless steel welded rods and a removable plate. A trio of impact-resistant guideposts surrounds the flange to ensure your dishware doesn’t slide off.

This Delfield drop-in dish dispenser comes with cUL, UL, and NSF certifications. Enjoy a one-year parts warranty and a 90-day labor standard warranty.

Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 5" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 7-3/4", flange diameter 8-3/8", cUL, UL, NSF

Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
  • DIS-ET/QT Series Only
    • 4’ cord and plug
    • Filtered air intake
    • Outer stainless steel jacket
    • QT- Shall have a stainless steel cover
    • On/off switch and adjustable thermostat
    • Convection heating module and fan motor
    • ET temperature range is 120-140°F (49-60°C)
    • QT temperature range is 150-170°F (66-77°C)
Options & Accessories
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.

Options for Delfield DIS-500

Lift gate option
