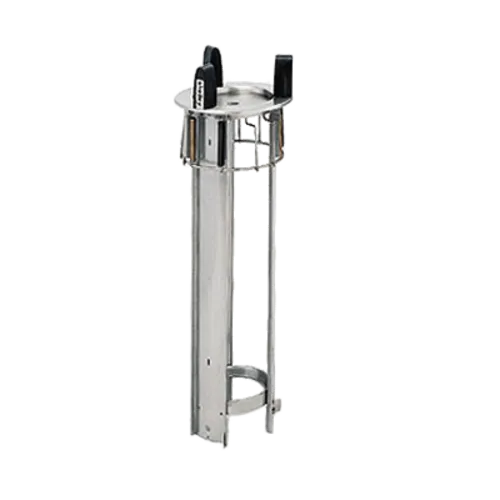

Delfield DIS-575 Unheated Open Round Drop-In Dish Dispenser for 5 to 5-3/4" Dishes

Name: Delfield DIS-575 Unheated Open Round Drop-In Dish Dispenser for 5 to 5-3/4" Dishes
Brand: Delfield
SKU: DIS-575
Availability: InStock

MPN#: DIS-575

Delfield DIS-575 Unheated Open Round Drop-In Dish Dispenser for 5 to 5-3/4" Dishes

Call us for price

1-800-555-0666

View all Delfield Tray & Dish Dispensers

Delfield DIS-575 Specifications

Brand	Delfield
Certifications	NSF
Type	Unheated
Dish Diameter	for 5 to 5-3/4" Dishes
Shape	Round
Style	Open
Height (in)	28
Weight	8

Additional Information on Delfield DIS-575

delfield-dis-575.specsheet.pdf

warranty-sheet.pdf

service-manual.pdf

brochure.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-575 Certifications

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-575 Description

Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 5-3/4" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 8-1/2", flange diameter 9-1/8", cUL, UL, NSF (contact factory for price)

Transform a 28" high counter space into a storage and dispensing station for your 5" to 5.75" diameter plates with the Delfield DIS-575 drop-in dish dispenser. With a 8.5" diameter cutout and 9.12" diameter flange, this unit has a maximum capacity of 72 dishes or a 24" tall stack. The tube automatically moves the stack of plates up so the plates are level and easy to pick up. You can attach or remove stainless steel spring supports to set the height just above the top flange for easy access.

All three (3) vertical side channels, top supporting flange, and bottom brace all the way to the welded dish carrier head rods and removable plate are constructed with stainless steel making them super durable but also easy to wipe clean! Keeping the plates fixed in place are three (3) high-impact guideposts.

This Delfield drop-in dish dispenser comes with cUL, UL, and NSF certifications. Enjoy a one-year parts warranty and a 90-day labor standard warranty.

Standard Features:

Spring supports to be stainless steel
High impact plastic guide posts mounted to flange
One year parts and 90 day labor standard warranty
Flange, channels and bottom to be integrally welded
Carrier head made of welded rods with a removable top plate
Top flange, bottom brace and vertical side channels are stainless steel
Self-leveling mechanism, field adjustable by adding or removing springs
DIS-ET/QT Series Only
- 4’ cord and plug
- Filtered air intake
- Outer stainless steel jacket
- QT- Shall have a stainless steel cover
- On/off switch and adjustable thermostat
- Convection heating module and fan motor
- ET temperature range is 120-140°F (49-60°C)
- QT temperature range is 150-170°F (66-77°C)

Options & Accessories

Special voltages
Hold-down rod for dispenser tubes
Shorten dispenser tubes to special length
Stainless steel tube cover (500-725 sizes only)
Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)

Specifications

Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.
