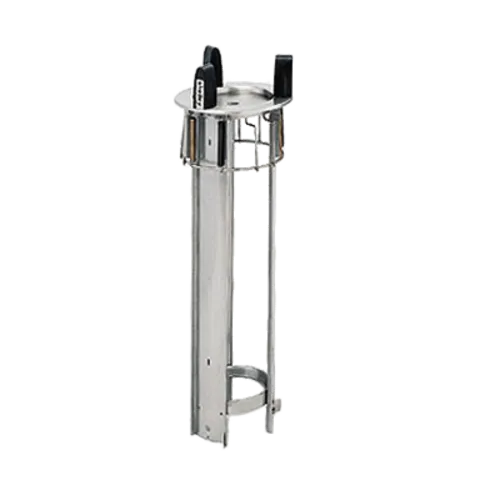

Delfield DIS-575-ET Heated Shielded Round Drop-In Dish Dispenser for 5 to 5-3/4" Dishes

MPN#: DIS-575-ET
Delfield DIS-575-ET Heated Shielded Round Drop-In Dish Dispenser for 5 to 5-3/4" Dishes

Call us for price

1-800-555-0666

Delfield DIS-575-ET Specifications

BrandDelfield
CertificationsNSF
TypeHeated
Dish Diameterfor 5 to 5-3/4" Dishes
ShapeRound
StyleShielded
Voltage120 Volts
Height (in)28
Weight17

Additional Information on Delfield DIS-575-ET

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-575-ET Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-575-ET Description

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 5-3/4" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 8-1/2", flange diameter 9-1/8", 4.0 kW, cUL, UL, NSF (contact factory for price)

If you have a lot of small 5" to 5.75" diameter dishware you need to heat and move around your restaurant or cafeteria, this DIS-575-ET drop-in even-temp heated dish dispenser will be a great addition to your business. This unit can support a maximum stack height of 24" or approximately 72 plates. The self-leveling design ensures that a hot new plate is always on hand. is removed for immediate access to clean, hot plates. You can simply add or remove the stainless steel spring supports so maintain the proper tension for the weight of the plates.

A 400-watt convection heating element warms the cavity at 120°F to 140°F to keep the plates perfectly warm for longer. An air intake filter makes sure no foreign particles enter the unit.

This dish dispenser is constructed with stainless steel from the welded rods and removable plate on the dish carrier head all the way to the bottom brace, vertical side channels, and top flange for a long-lasting build that’s easy to maintain. Three guideposts on the flange are made of high-impact plastic to keep the stack of dishes in place. An on/off switch and a thermostat is included to operate the tube easily.

This Delfield drop-in even-temp dish dispenser comes is certified by cUL, UL, and NSF for safe and commercial use. It is rated at 5.5 amps and requires a 120/60/1 electrical connection. 4' (2.7m) cord with NEMA 5-15P plug supplied. Enjoy a one-year parts warranty and a 90-day labor standard warranty.

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 5-3/4" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 8-1/2", flange diameter 9-1/8", cUL, UL, NSF

Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
  • DIS-ET/QT Series Only
    • 4’ cord and plug
    • Filtered air intake
    • Outer stainless steel jacket
    • QT- Shall have a stainless steel cover
    • On/off switch and adjustable thermostat
    • Convection heating module and fan motor
    • ET temperature range is 120-140°F (49-60°C)
    • QT temperature range is 150-170°F (66-77°C)
Options & Accessories
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.

Options for Delfield DIS-575-ET

Lift gate option
What is included
  • Voltage: 120v/60/1-ph, 5.5 amps, NEMA 5-15P, standard
