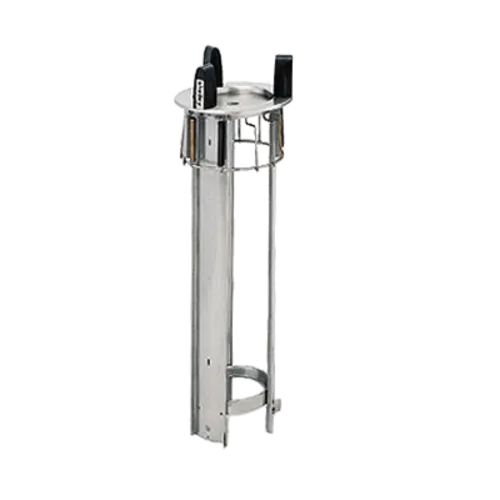

Delfield DIS-913 Unheated Open Round Drop-In Dish Dispenser for 8-1/8 to 9-1/8" Dishes

MPN#: DIS-913
Delfield DIS-913 Unheated Open Round Drop-In Dish Dispenser for 8-1/8 to 9-1/8" Dishes

Call us for price

1-800-555-0666

Delfield DIS-913 Specifications

BrandDelfield
CertificationsNSF
TypeUnheated
Dish Diameterfor 8-1/8 to 9-1/8" Dishes
ShapeRound
StyleOpen
Height (in)28
Weight12

Additional Information on Delfield DIS-913

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-913 Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-913 Description

Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size 9-1/8" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter, 11-7/8", flange diameter 12-1/2", cUL, UL, NSF (contact factory for price)

The DIS-913 drop-in dispenser for 8.12" to 9.12" diameter plates can slide into available 28" high space in your kitchen or dining area to instantly add storage for up to 72 plates or a max stack height of 24". This unit has a 11.87" cutout diameter and 12.5" top flange diameter. You can remove or add these stainless steel springs to the side channels to modify the right height of the stack of plates. No need to reach inside the tube for new dishes! Every time the first plate is removed, the tube will automatically raise the stack to the set height to keep the top plates visible and within reach.

To make sure this unit keeps up with your busy operations, the top flange, vertical side channels, bottom brace, and dish carrier head with welded rods and removable top plate are all stainless steel. The top of the stack shouldn’t wobble or tip over, thanks to the three (3) high-impact plastic posts keeping them inside the diameter of the flange.

This Delfield drop-in dish dispenser is cUL, UL, and NSF-approved. Enjoy a one-year parts warranty and a 90-day labor standard warranty.

Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size 9-1/8" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter, 11-7/8", flange diameter 12-1/2", cUL, UL, NSF

Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
  • DIS-ET/QT Series Only
    • 4’ cord and plug
    • Filtered air intake
    • Outer stainless steel jacket
    • QT- Shall have a stainless steel cover
    • On/off switch and adjustable thermostat
    • Convection heating module and fan motor
    • ET temperature range is 120-140°F (49-60°C)
    • QT temperature range is 150-170°F (66-77°C)
Options & Accessories
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.
