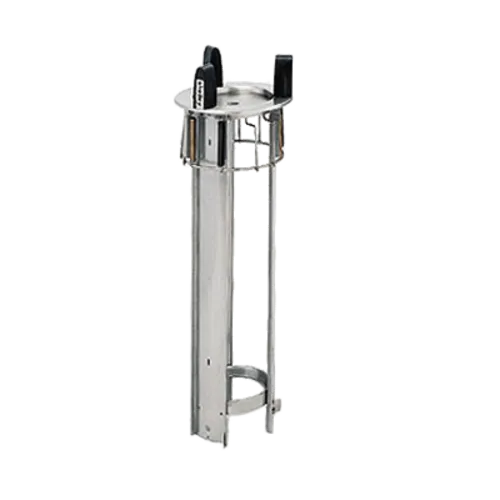

Delfield DIS-1450-ET Heated Shielded Round Drop-In Dish Dispenser for 12" to 14 1/2" Dishes
Call us for price
1-800-555-0666Delfield DIS-1450-ET Specifications
Brand | Delfield |
---|---|
Certifications | NSF |
Type | Heated |
Dish Diameter | for 12" to 14 1/2" Dishes |
Shape | Round |
Style | Shielded |
Voltage | 120 Volts |
Height (in) | 28 |
Weight | 37 |
Additional Information on Delfield DIS-1450-ET
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Delfield DIS-1450-ET Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Delfield DIS-1450-ET Description
Sized for units in a 28" high space, the DIS-1450-ET is a drop-in even-temp heated dish dispenser designed to hold a 24" stack of 12" to 14.5" diameter plates. The stack automatically raises after the top plate is removed for immediate access to the next clean hot plates. This unit is powered by a 400-watt convection heating element with a fan motor to maintain the temperature inside the dispensing tube at 120°F to 140°F. This tube has an on/off switch and a thermostat for ease of operation and flexibility.
This tube features all stainless steel vertical side channels, bottom brace, and top flange, making it reliably sturdy and super easy to clean. The carrier head is made of stainless steel welded rods and a stainless steel top plate to enhance the unit’s durability. Three (3) high-impact guideposts are mounted on the flange to keep the stack of plates from wobbling or falling off. Stainless steel spring supports can be added or removed so you can set the proper tension and height of the existing stack.
This Delfield drop-in even-temp dish dispenser comes with cUL, UL, and NSF certifications. It is rated at 5.5 amps and requires a 120/60/1 electrical connection. Enjoy a one-year parts warranty and 90-day labor standard warranty. 4' (2.7m) cord with NEMA 5-15P plug supplied.
Get the best food holding and warming equipment at the best prices only here at CKitchen!
Standard Features:
- Spring supports to be stainless steel
- High impact plastic guide posts mounted to flange
- One year parts and 90 day labor standard warranty
- Flange, channels and bottom to be integrally welded
- Carrier head made of welded rods with a removable top plate
- Top flange, bottom brace and vertical side channels are stainless steel
- Self-leveling mechanism, field adjustable by adding or removing springs
- DIS-ET/QT Series Only
- 4’ cord and plug
- Filtered air intake
- Outer stainless steel jacket
- QT- Shall have a stainless steel cover
- On/off switch and adjustable thermostat
- Convection heating module and fan motor
- ET temperature range is 120-140°F (49-60°C)
- QT temperature range is 150-170°F (66-77°C)
- Special voltages
- Hold-down rod for dispenser tubes
- Shorten dispenser tubes to special length
- Stainless steel tube cover (500-725 sizes only)
- Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
- Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
- Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
- 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
