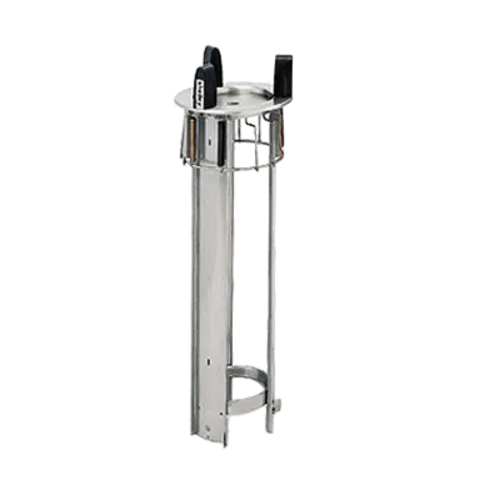

Delfield DIS-650-ET Heated Shielded Round Drop-In Dish Dispenser for 5-3/4" to 6-1/2" Dishes

MPN#: DIS-650-ET
Delfield DIS-650-ET Heated Shielded Round Drop-In Dish Dispenser for 5-3/4" to 6-1/2" Dishes

Call us for price

1-800-555-0666

Delfield DIS-650-ET Specifications

BrandDelfield
CertificationsNSF
TypeHeated
Dish Diameterfor 5-3/4" to 6-1/2" Dishes
ShapeRound
StyleShielded
Voltage120 Volts
Height (in)28
Weight19

Additional Information on Delfield DIS-650-ET

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield DIS-650-ET Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield DIS-650-ET Description

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 6-1/2" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 9-1/4", flange diameter 9-7/8", 4.0 kW, cUL, UL, NSF (contact factory for price)

The DIS-650-ET drop-in dish dispenser is sized for 5.75" to 6.5" diameter dishware. This unit is made to fit 28" high spaces, and you can easily load it with as many as 72 plates or a stack as tall as 24". The cutout diameter measures 9.25" while the top flange diameter is at 9.87".

The exterior and the tube are all made of stainless steel, making this unit highly durable and reliable for long-term use. The stainless steel vertical side channels, top supporting flange, and bottom brace are welded together for added stability and strength. The dish carrier head features stainless steel welded rods and a removable stainless steel plate to keep the plates secure inside while three guideposts on the top flange stabilize the visible plates from the stack.

The plates are always clean and warm, thanks to the 400-watt convection heating element and fan motor to heat the tube cavity at 120°F to 140°F. Thanks to an air intake filter, no dirt and harmful particles will make it to the plates. The temperature inside the tube can be adjusted using the built-in thermostat and with the on/off switch, you can turn the heat off the tube as needed.

The dish dispenser uses a self-leveling mechanism to automatically boost the stack up to the set level every time the top plates are removed. You can increase or decrease the tension on the changing weight of the plates during operation by adding or removing stainless steel spring supports.

This Delfield drop-in dish dispenser comes with cUL, UL, and NSF certifications. You’ll also get a one-year warranty on parts and a 90-day standard warranty on labor.

Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 6-1/2" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 9-1/4", flange diameter 9-7/8", cUL, UL, NSF

Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
  • DIS-ET/QT Series Only
    • 4’ cord and plug
    • Filtered air intake
    • Outer stainless steel jacket
    • QT- Shall have a stainless steel cover
    • On/off switch and adjustable thermostat
    • Convection heating module and fan motor
    • ET temperature range is 120-140°F (49-60°C)
    • QT temperature range is 150-170°F (66-77°C)
Options & Accessories
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.

Options for Delfield DIS-650-ET

Lift gate option
What is included
  • Voltage: 120v/60/1-ph, 5.5 amps, NEMA 5-15P, standard
