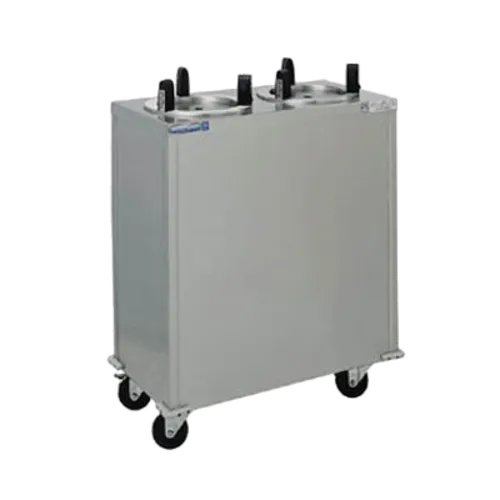

Delfield CAB2-1200ET Stainless Steel Enclosed Base 2 Stack Heated Mobile Plate Dish Dispenser for 10-1/8" to 12" Dishes
Contact us for details
Calculate
Delfield CAB2-1200ET Specifications
| Model | Cabinet |
|---|---|
| Dispenser Type | Dish Dispenser |
| Base Style | Enclosed |
| Heat Type | Heated |
| Series | ShelleymaticВ® |
| Brand | Delfield |
| Number of Compartments | 2 |
| Heating Element | 700 watt |
| Certifications | NSF |
| Type | Mobile |
| Casters | 4" casters |
| Dish Diameter | 10-1/8" to 12" |
| Material | Stainless Steel Construction & Plastic Guide Posts |
| Voltage | 120 Volts |
| Width (in) | 37 |
| Height (in) | 36 |
| Depth (in) | 19 |
| Weight | 192 |
Additional Information on Delfield CAB2-1200ET
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Delfield CAB2-1200ET Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Delfield CAB2-1200ET Description
The CAB2-1200ET dispenser by Delfield is an enclosed two-stack dish dispenser that features two (2) dispensing tubes that can each handle up to 10.12 to 12" diameter 72 dishes measuring at a maximum stacking height of 24". A self-leveling mechanism ensures there’s always a plate ready at all times!
Made of high-quality materials, this plate dispenser has 20-gauge stainless steel on the exterior to the corners and a 16-gauge stainless steel top. Each dispenser tube has an on/off switch and is powered by a 700-watt convection heating element and fan motor to heat plates evenly at 120°F to 140°F. You can adjust the temperature using the thermostat located in each motor housing of the tubes. The air intake is filtered to keep the plates clean and sanitary.
This two-stack dish dispenser has four (4) 4" polyolefin swivel casters that are easy to maneuver but also lockable for excellent stability. The non-marring bumpers on each corner of the unit help prevent injury as well as equipment and wall damage.
The dispenser top flange with three (3) high-impact posts, vertical side channels, and bottom brace are all constructed with stainless steel and are welded together for added strength.
This Delfield two-stack dish dispenser is cUL, UL, and NSF for safe commercial use. It is rated at 11.0 Amps and requires a 120v/60Hz/1. 9’ (2.7m) cord with NEMA 5-20P plug supplied. Looking for more food holding and warming equipment? Check out our full selection here at CKitchen!
Standard Features:
- Non-marring gray corner bumpers
- Spring supports to be 14-gauge S/S
- Field adjustable self-leveling mechanism
- (4) 4.00” locking polyolefin swivel casters
- One year parts and 90 day labor warranty
- Cabinet top to be 16-gauge stainless steel
- High impact plastic guide posts mounted to flange
- Outer body and corners to be 20-gauge stainless steel
- Dispenser flange, channels and bottom to be integrally welded
- Carrier head made of welded rods with a removable 18-gauge top plate
- Dispenser top flange, vertical side channels and bottom brace are stainless steel
- Heated, QT & ET Features
- 9’ cord and plug
- Air intake shall be filtered
- On/off switch on each dispense
- ET maintains 120-140°F (49-60°C)
- QT maintains 150-170°F (66-77°C)
- Adjustable thermostat per dispenser
- QT- stainless steel cover per dispenser
- 22-gauge stainless steel jacket around dispenser
- Convection heating module and fan motor per dispenser
- Wrap-around bumpers
- Four 4” or 5” polyurethane casters
- Hold-down rod for dispenser tubes
- Flange-mount feet in lieu of casters
- Shorten dispenser tubes to special length
- 220 volt, 50/60 cycle, single phase electrical connections
- Stainless steel tube cover (-500 through -725 models only)
- Stainless steel dome cover (-813 through -1450 models only)
- 12” diameter S/S dish dispenser tray (-1200 and -1450 models only)
- Rods for oval dishes and diameter adjustment (-813 through -1450 only)
- Note: Inclusion of these options will alter the electrical specifications of unit
