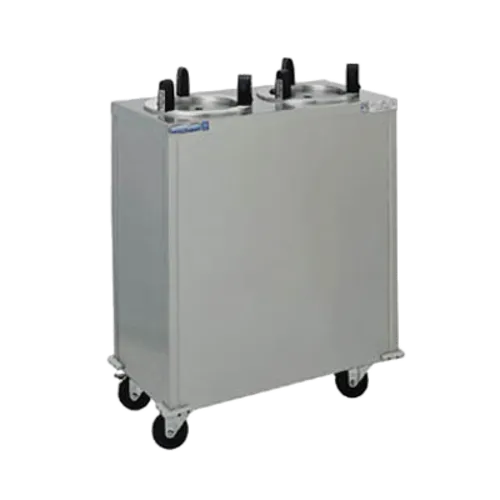

Delfield CAB2-650 Stainless Steel Enclosed Base 2 Stack Unheated Mobile Plate Dish Dispenser for 5-3/4" to 6-1/2" Dishes
MPN#: CAB2-650
Free Freight?
Quick Ship
$3,481.00 /
Contact us for details
Calculate
Product Protection
Starting at
Delfield CAB2-650 Specifications
| Model | Cabinet |
|---|---|
| Base Style | Enclosed |
| Dispenser Type | Platter Dispenser |
| Series | ShelleymaticВ® |
| Heat Type | Unheated |
| Brand | Delfield |
| Number of Compartments | 2 |
| Certifications | NSF |
| Type | Mobile |
| Casters | 4" casters |
| Dish Diameter | 5-3/4" to 6-1/2" |
| Material | Stainless Steel Construction & Plastic Guide Posts |
| Width (in) | 28.25 |
| Height (in) | 36 |
| Depth (in) | 17 |
| Weight | 127 |
Additional Information on Delfield CAB2-650
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Delfield CAB2-650 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Delfield CAB2-650 Description
Shelleymatic® Dispenser, Plate, enclosed mobile design, two self-elevating dish dispensing tubes, maximum dish size approximately 6-1/2" diameter, stainless steel construction, 4" casters, cUL, UL, NSF
Shelleymatic® Plate Dispenser, enclosed mobile design, two self-elevating dish dispensing tubes, maximum dish size approximately 6-1/2" diameter, stainless steel construction, 4" casters, cUL, UL, NSF (more food holding and warming equipment available)
Standard Features:
Standard Features:
- Non-marring gray corner bumpers
- Spring supports to be 14-gauge S/S
- Field adjustable self-leveling mechanism
- (4) 4.00” locking polyolefin swivel casters
- One year parts and 90 day labor warranty
- Cabinet top to be 16-gauge stainless steel
- High impact plastic guide posts mounted to flange
- Outer body and corners to be 20-gauge stainless steel
- Dispenser flange, channels and bottom to be integrally welded
- Carrier head made of welded rods with a removable 18-gauge top plate
- Dispenser top flange, vertical side channels and bottom brace are stainless steel
- Heated, QT & ET Features
- 9’ cord and plug
- Air intake shall be filtered
- On/off switch on each dispense
- ET maintains 120-140°F (49-60°C)
- QT maintains 150-170°F (66-77°C)
- Adjustable thermostat per dispenser
- QT- stainless steel cover per dispenser
- 22-gauge stainless steel jacket around dispenser
- Convection heating module and fan motor per dispenser
Options & Accessories
- Wrap-around bumpers
- Four 4” or 5” polyurethane casters
- Hold-down rod for dispenser tubes
- Flange-mount feet in lieu of casters
- Shorten dispenser tubes to special length
- 220 volt, 50/60 cycle, single phase electrical connections
- Stainless steel tube cover (-500 through -725 models only)
- Stainless steel dome cover (-813 through -1450 models only)
- 12” diameter S/S dish dispenser tray (-1200 and -1450 models only)
- Rods for oval dishes and diameter adjustment (-813 through -1450 only)
- Note: Inclusion of these options will alter the electrical specifications of unit
Specifications
Cabinet top shall be 16-gauge stainless steel with all corners welded and polished and reinforced with heavy-gauge channels. Cabinet exterior panels and corner support angles shall be 20-gauge stainless steel. Unit shall have four 4.00" (10cm) diameter polyolefin swivel casters (all locking), and non-marking gray bumpers at each corner. Dispenser tube shall have 3 vertical side channels and a bottom brace of 22-gauge stainless steel. Top supporting flange shall be 18-gauge stainless steel. Flange, channels and bottom brace shall be integrally welded together. Flange shall have 3 guide posts molded from high impact plastic. Self-leveling mechanisms shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. The dish carrier head shall be stainless steel welded rods with a removable 18-gauge stainless steel top plate.
