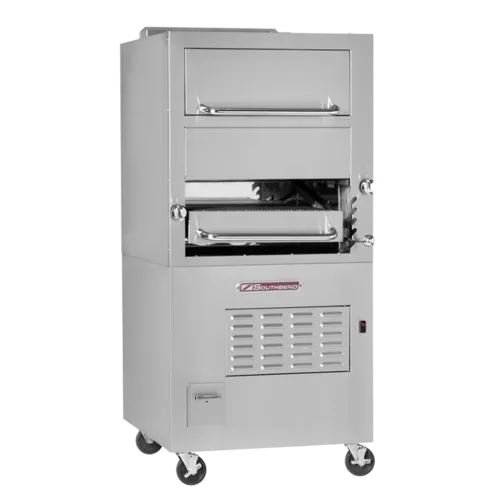

Southbend P32N-171 Platinum Heavy Duty Broiler

MPN#: P32N-171
Southbend P32N-171 Platinum Heavy Duty Broiler
Free Freight?
Quick Ship
$21,589.50 /
$19,381.97 /
or enjoy small payments $416.52/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 21590
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Southbend P32N-171 Specifications

Total BTU135000 - 150500
BTU149,000 BTU
Heating SourceInfrared
Installation TypeModular
Base StyleWithout Base
BrandSouthbend
CertificationsNSF
HeatGas
StyleSingle
Voltage120 Volts
Width (in)45.5
Height (in)51.75
Depth (in)55
Weight800.00

Additional Information on Southbend P32N-171

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend P32N-171 Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Southbend P32N-171 Description

Platinum Heavy Duty Broiler, gas, 32", single deck, infrared burners, no base, warming oven, stainless steel front, sides & 6" adjustable legs, 149,000 BTU, CSA, NSF
Platinum Heavy Duty Deck-Type Broiler, 32", single deck, infrared burners, no base, warming oven, stainless steel front, sides & 6" adjustable legs, 149,000 BTU, CSA, NSF (commercial restaurant ranges, commercial grills, salamander broilers, and more cooking equipment also available)

Standard Features:
  • 6” Adjustable legs
  • Stainless steel front, sides, and back
  • Fully insulated lining and burner boxes
  • 104,000 BTU (NAT or LP) infra-red burners
  • 90 second preheat with no waiting between loads
  • 1-1/4” font manifold and rear gas connection standard
  • Rugged grid height adjustment mechanism with four positions
  • Broiler grid is 24-1/2” wide and 28” deep -easily rolls out 17-1/4”
  • Warranty: two years on specified operational parts and one year on labor from date of purchase
Standard Features of Oven Bases
  • Porcelain enamel interior
  • NEMA 4 water-resistant controls
  • Heavy-duty, stainless steel door handle
  • “Instant-On” thermostat ranging from 175°F to 550°F
  • Convection oven models have 1/2hp, two-speed blower
  • 2 oven racks with standard oven and 3 racks with convection oven
  • 45,000 BTU NAT (45,000 BTU LP) oven with electronic pilot ignition
  • Standard oven interior is large enough to fit 26” x 26” sheet pan either way
Standard Construction Specifications
Exterior Finish: Top, front, sides, and back are 430 stainless steel #3 polish. Broiler: Infrared broiler with overhead warming oven. 104,000 BTU (NAT or LP) broiler burners with separate controls. Fully insulated lining and burner box. Roll-out broiler grid is 24-1/2” wide and 28” deep (rolls out to 17-1/4”), with four height positions. Battery: Position in battery -left, right, or on end. If the item is at the end of a battery, the end side will be solid (rather than have a coverplate over the end of the front manifold). Legs: Stainless steel 6” adjustable legs standard. Warming Oven: 25” wide and 25” deep oven, located on top of broiler, is heated by the broiler flue gases. 3,000-watt electric heating element optional. Model 32D: 45,000 BTU NAT (45,000 BTU LP) with electronic ignition and thermostat range of 175°F to 550°F. Porcelain enamel interior, measuring 14” high x 26” wide x 26-1/2” deep. Two racks with 5-position side rails. Model 32A: 45,000 BTU NAT (45,000 BTU LP) convection oven with electronic ignition and thermostat range of 175°F to 550°F. Porcelain enamel interior, measuring 14” high x 26” wide x 24” deep. Three racks with 5-position side rails. Two-speed, 1/2 hp blower motor. Model 32C: Stainless steel cabinet with removable doors that open from the center. Model 32N: No base, modular mount.

Options for Southbend P32N-171

Correctional & prison options
Warming oven heating element
Gas types
Extended warranty
Mounting options
What is included
  • Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
  • Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)
Voltage
