Southbend HDB-24-316L 52,000 BTU Outdoor Infrared Broiler with 2 Ceramic Burners

MPN#: HDB-24-316L
Southbend HDB-24-316L 52,000 BTU Outdoor Infrared Broiler with 2 Ceramic Burners
Free Freight?
Quick Ship
$16,552.00 /
$14,859.56 /
or enjoy small payments $319.33/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 16552
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Southbend HDB-24-316L Specifications

Total BTU20000 - 69500
Installation TypeFreestanding
Heating SourceInfrared
Base StyleStorage Base
BrandSouthbend
CertificationsNSF
HeatGas
StyleSingle
Voltage120 Volts
Width (in)24
Height (in)44
Depth (in)44
Weight525.00

Additional Information on Southbend HDB-24-316L

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend HDB-24-316L Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Southbend HDB-24-316L Description

Outdoor Infrared Broiler, gas, 24", ceramic burners, 1,600°F tile temperatures, 316L stainless steel construction, 120v/60/1-ph, 1.0 amp, cord & plug, 52,000 BTU, NSF, cCSAus, CSA Star, CSA Flame

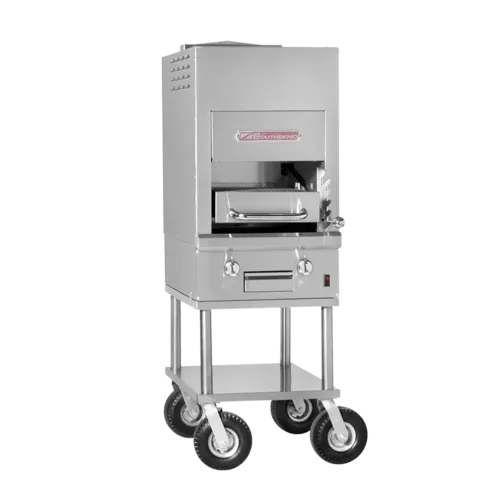

The Southbend HDB-24-316L is a 24” infrared broiler designed for heavy-duty outdoor use. At the heart of this broiler are (2) ceramic burners that provide intense, uniform heat for the broiling area. Each burner can reach tremendous temperatures up to 1,600° F in as little as 90 seconds, providing radiant heat that can rapidly sear meats and lock in flavorful juices into the product.

This deck-type broiler is built with all-stainless steel construction. The exterior panels are made of low-carbon 316L stainless steel with #3 polish, which are reinforced by 316L stainless steel interior panels. This ensures the broiler can withstand the sun, wind, and other elements.

This compact broiler measures 24” wide x 44” deep x 44” high. It has a roll-out broiling area with dimensions of 16” wide x 26 1/2” deep. The front 3” of the broiling area serves as a holding area for keeping food products warm before serving. The broiling grid has a round pattern for creating branding marks on your food products. You can adjust the height of the grid to bring it closer or farther from the heating elements.

The broiler’s lining and the burner boxes are fully insulated to ensure that the high temperatures stay inside. A blower also delivers fresh air to blow away smoke and vapors that may affect the efficiency of the broiler.

The Southbend HDB-24-316L is supported by 4” stainless steel adjustable legs. For an additional fee, you may opt for a unit with casters equipped with locks for the front set. You may also purchase any of Southbend’s stainless steel equipment stands that come at various heights. The unit can be mounted on any of these stands or on a countertop.

This broiler operates on 120v/60/1-ph and 1.0 amp. It is certified by NSF, cCSAus, CSA Star, and CSA Flame. Need more cooking equipment for your kitchen? We have a great selection here at CKitchen including ranges, commercial grills, and commercial kettles.

Options for Southbend HDB-24-316L

Gas types
Insulator bases
Stand
What is included
  • Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
  • Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)
