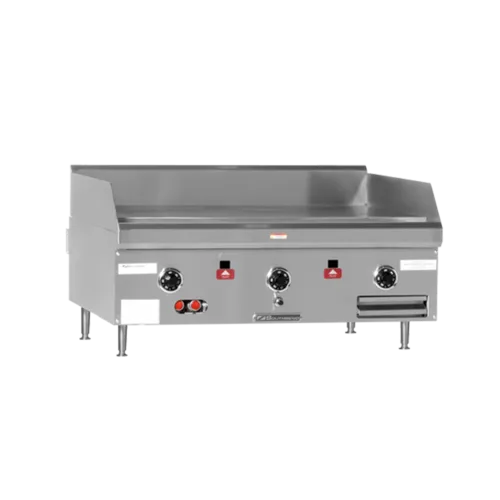

Southbend HDG-60V High Volume 60'' Countertop Gas Griddle with Thermostatic Controls - 150,000 BTU
MPN#: HDG-60V
1/2
Free Freight?
Quick Ship
$17,529.00 /
Calculate
Product Protection
Starting at
Southbend HDG-60V Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 105000 - 156000 |
| Installation Type | Countertop |
| Series | High Volume |
| Power Type | Natural or Propane Gas |
| Cooking Surface Material | Polished Steel |
| Construction | Stainless Steel |
| Burner Style | Tube |
| With Griddle | Yes |
| Brand | Southbend |
| Certifications | NSF |
| Number of Burners | 4 |
| Control Type | Thermostatic |
| BTU | 150,000 BTU |
| Heat | Gas |
| Usage | Standard Duty |
| Width (in) | 60 |
| Height (in) | 40.6 |
| Depth (in) | 33.5 |
| Weight | 780.00 |
Additional Information on Southbend HDG-60V
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Southbend HDG-60V Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Southbend HDG-60V Description
High Volume Griddle, countertop, gas, 60", 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides, towel bar & integrated stand, 150,000 BTU, CSA, NSF
High Volume Commercial Countertop Griddle, gas, 60", 1" thick polished steel plate, thermostatic controls, battery spark ignition, stainless steel front, sides, towel bar & integrated stand, 150,000 BTU, CSA, NSF (more flat top grills & griddles, countertop ranges, commercial grills, and other cooking equipment available)
Standard Features:
Standard Features:
- Protected flue opening
- Flame failure safety device
- Stainless steel front towel bar
- Electronic spark ignition (battery)
- 30,000 BTU (NAT) burner per 12”
- 1” thick polished rolled steel plate
- Embedded load sensing thermostat
- 5” high rear and 4” side splash guards
- Reinforced, insulated double wall sides
- Each burner equipped with runner tube
- 3/4” rear gas connection and pressure regulator
- Fully welded griddle plate with protected exhaust vent
- Two grease basins with large capacity (16 quarts each)
- Exclusive “NO COLD” Zone - Uniform heat distribution across surface
- “Instant-on” thermostatic controls for precise settings between 200°F and 400°F
- Stainless steel front, vent and sides are standard, rear and bottom panels are aluminized steel.
Standard Construction Specifications
Exterior Finish: Front, sides and vent are constructed of #3 polished 430 and 304 stainless steel. Bottom and rear are aluminized steel. Sides are reinforced and fully insulated. 5” rear and 4” side splash. Griddle Plate: 48” wide unit, 30,000 BTU (NAT) per 12” burner. Fully welded, 1” thick polished steel griddle plate with side splash guards. Basin: Second grease basin provided as spare for quick change. (Excluding model HDG-24V) Griddle Controls: Independent, “Instant-on” thermostatic controls with uniform temperature range of 200°F to 400°F. (Thermostatic models ONLY). Casters: 4” casters for stand. Gas Heat Control System: Each foot of griddle is heated by a “U” shaped burner. Each burner is controlled by a thermostatic control. For safety, each pilot has a flame failure device. A 3/4” rear gas connection is standard.
