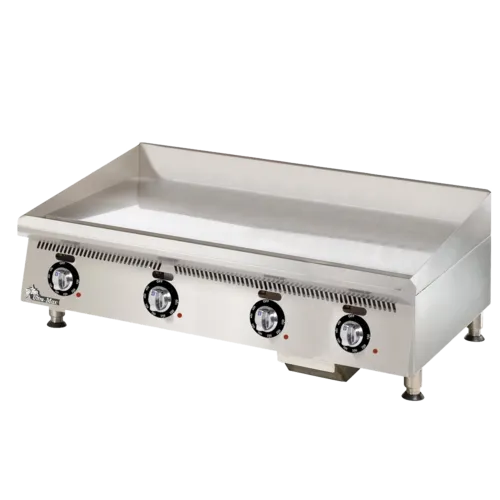

Star 860TCHSA Ultra-Max® 60'' Countertop Gas Griddle with Thermostatic Controls - 150,000 BTU
MPN#: 860TCHSA
1/2
Free Freight?
Quick Ship
$19,430.00 /
Sign-In here for more information
Calculate
Product Protection
Starting at
Star 860TCHSA Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 105000 - 156000 |
| Cooking Surface Material | Chrome |
| Installation Type | Countertop |
| Power Type | Natural or Propane Gas |
| Construction | Stainless Steel |
| Series | Ultra-Max® |
| With Griddle | Yes |
| Brand | Star |
| Made in | USA |
| Certifications | cULus |
| Number of Burners | 4 |
| Control Type | Thermostatic |
| BTU | 150,000 BTU |
| Category | Griddle, Counter Unit, Gas |
| Heat | Gas |
| Usage | Heavy Duty |
| Width (in) | 60 |
| Height (in) | 18 |
| Depth (in) | 34.2 |
| Weight | 656.00 |
Additional Information on Star 860TCHSA
middleby-financial-flyer.pdf
warranty-sheet.pdf
installation-operation.pdf
star-860tchsa.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Star 860TCHSA Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Star 860TCHSA Description
Ultra-Max® Commercial Griddle, countertop gas, 60" W x 24" D cooking surface, 1" thick T1 steel hexavalent chrome griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 150,000 BTU, cULus, UL EPH Classified, Made in USA
Standard Features:
- 30,000 BTU per 12" section of griddle and standing pilot ignition
- 1" (25 mm) thick polished steel or optional chrome countertop griddle plate
- Wide operating temperature range - between 150°F (66°C) and 550°F (288°C)
- 4.375" (111 mm) rear and side countertop range splash guard and a 3.5" (89 mm) by 1" (25 mm) grease trough for easy cleanup
- Optional mechanical snap-action thermostats use sensors embedded 0.1875" (5 mm) from the cooking surface every 12" (305 mm) for precise temperature control
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.
Options & Accessories
- Steel stand with legs or casters
- Manual control valve or mechanical snap-action thermostat
- 0.001-inch (0.025 mm) thick hexavalent chrome surface on ultra-tough T1 steel plate (not available on manual control models)
