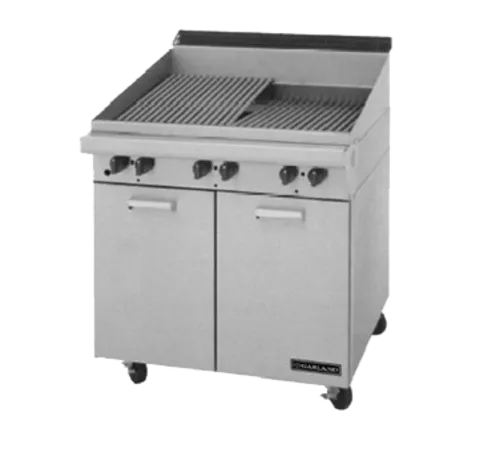

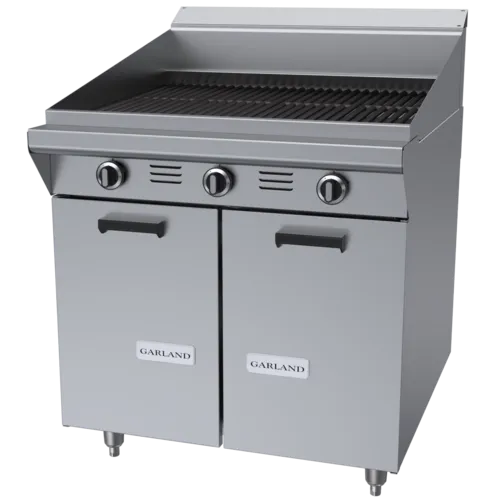

Garland US Range MST34B Master Series Heavy Duty Range

MPN#: MST34B
Garland US Range MST34B Master Series Heavy Duty Range
Free Freight?
Quick Ship
$10,098.00 /

Contact us for details

$8,262.00 /
or enjoy small payments $177.55/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 10098
  • Please see specification sheet for installation clearance requirements
  • Additional required flue riser sold separately

Garland US Range MST34B Specifications

BTU 90,000 BTU
Total BTU16000 - 130000
Number of Burners6 - 8
Installation TypeFreestanding
Burner StyleGrates
Range Base StyleStorage Base
BrandGarland/US Range
CertificationsCE
Exterior FinishStainless Steel Front & Sides
BaseStorage
Gas TypeLP
HeatGas
Number of OvensNone
Range ConfigurationCharbroiler
Width (in)34
Height (in)46.25
Depth (in)38
Weight510.00

Additional Information on Garland US Range MST34B

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Garland US Range MST34B Certifications

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Garland US Range MST34B Description

Master Series Heavy Duty Range, gas, 34", charbroiler, briquettes, flat/tilt grates, spark ignition, pilot valve with flame fail, storage base, stainless steel front & sides, 6" legs, 90,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
This heavy-duty commercial gas range is a charbroiler on the top and a storage base at the bottom. The charbroiler is fitted with six (6) burners that deliver a total of 90,000 BTU cooking power. Each one has flame failure protection to keep your operation safe. The unit features briquettes that help enhance the flavor of the meats. The grates are dual-sided, one with rounded bar patterns and another with diamond patterns so you can achieve that beautiful searing effect you are after. These grates can be adjusted to a flat or tilted position to modify the heat levels during cooking and get that perfect broil. This commercial range uses a piezo spark ignition, so turning on the unit is like pushing a button. The storage base provides additional space where you can keep charbroiling supplies immediately accessible when you need them. The entire unit is supported by 6" chrome legs that can be adjusted to various working heights.

This heavy-duty range has stainless steel construction on the front and sides to prevent rust and wear and tear. The unit has passed CSA Flame, CSA Star, and NSF standards for safe commercial use.

CKitchen has a wide selection of restaurant and heavy-duty ranges and commercial cooking equipment from some of the top manufacturers in the industry for assured quality and performance at amazing prices!

Standard Features:
  • Stainless steel front rail
  • 1-1/4" NPT front manifold
  • Stainless steel front doors
  • Stainless steel front and sides
  • 15,000 BTU (4.39 kW) burners
  • Storage base interior of aluminized steel
  • 6" (152mm) chromed steel adjustable legs
  • Piezo spark ignition with constant burning pilots
  • Sentry total flame failure protection for all burners
  • Electric Spark ignition on all pilots Suffix -E models
  • Modular top broilers (suffix "BT"), modular broiler is 14-1/2" (368mm) from broiler base to working height
  • Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite sides
Optional Features:
  • Dais base
  • Stainless steel main back
  • Gas regulator 3/4" or 1-1/4"
  • Rear gas connection; 3/4" NPT
  • End caps and cover (NC, specify)
  • Gas shut off valve; 3/4", 1" or 1-1/4" NPT
  • 6" (152mm) stainless steel adjustable legs
  • 230 volt, 50 cycle components, electric ignition, (export)
  • Dual-sided, steel diamond, (fine) in lieu of cast iron grate
  • Polyurethane non‑marking swivel casters (4) w/front brakes
  • Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
  • Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/ restraining device, please specify
Specification:
Master Series Charbroiler with stainless steel front and sides. Broiling area consists of heavy duty rack sections which are easily moved for flat or tilt position broiling. Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite side. 15,000 BTU (4.39 kW) burners controlled by individual Hi-Lo valves. Sentry total flame failure protection for all burners Large capacity full length grease drawers. Heavyweight, long lasting briquettes. Cabinet, 17" (432mm), 24" (610mm), or 34" (864mm), wide by 34" (869mm) deep, with two stainless steel full-sized hinged doors and front. Natural gas or propane. Available in modular models, suffix BT. NOTE: Broilers supplied with casters must be installed with an approved restraining device.

Options for Garland US Range MST34B

Grate
Stainless steel finishes
Gas connection
Gas type
Mounting options
What is included
  • Standard parts/labor warranty: Two year limited parts and labor warranty, covers products purchased and installed in the USA only, standard
  • NOTE: Note: All Master Series Ranges, storage, modular, fryers, attachment & under-fired char broilers require a high shelf or back guard attachment
