Garland US Range CG-60F Master 60'' Countertop Gas Griddle with Thermostatic Controls - 150,000 BTU
SKU#: CG-60F
Free Freight?
Quick Ship
$14,285.00
Contact us for details
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Garland US Range CG-60F Specifications
Plate Thickness | 1 Inch |
---|---|
Total BTU | 105000 - 156000 |
Burner Style | Combi |
Installation Type | Countertop |
Series | Master |
Power Type | Natural or Propane Gas |
Cooking Surface Material | Polished Steel |
Construction | Stainless Steel |
With Griddle | Yes |
Brand | Garland/US Range |
Certifications | NSF |
Number of Burners | 5 |
Control Type | Thermostatic |
BTU | 150,000 BTU |
Exterior Finish | Stainless Steel |
Controls | Electronic thermostatic |
Heat | Gas |
Usage | Heavy Duty |
Voltage | 120 Volts |
Width (in) | 60 |
Height (in) | 21 |
Depth (in) | 38.75 |
Weight | 765.00 |

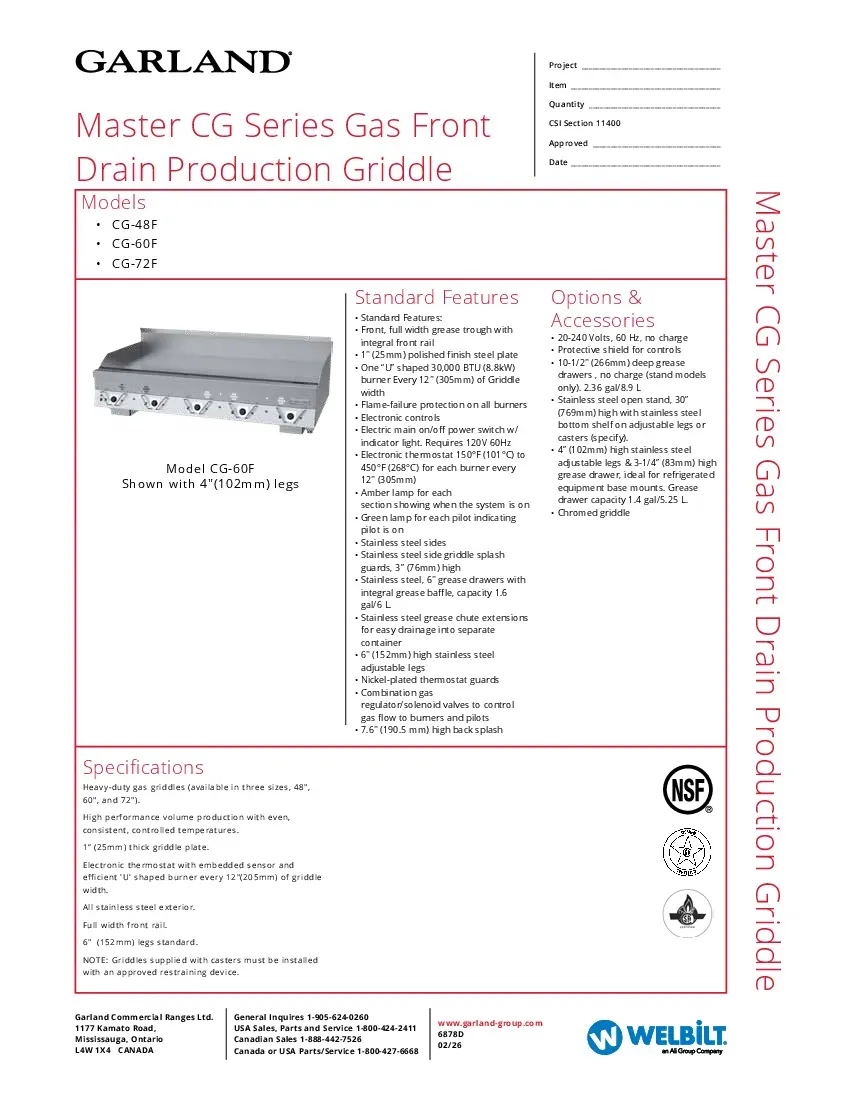

Additional Information on Garland US Range CG-60F
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range CG-60F Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range CG-60F Description
Master Griddle, countertop, gas, front drain, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, electronic ignition, stainless steel side & rear splash, stainless steel exterior, EnerLogic™ Technology, 150,000 BTU (Garland), 44kW, CSA, NSF
Master Griddle, countertop, gas, front drain, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, electronic ignition, stainless steel side & rear splash, stainless steel exterior, EnerLogic™ Technology, 150,000 BTU (Garland), 44 kW, CSA, NSF
Heavy duty gas Commercial Griddles (available in three sizes, 48", 60", and 72"). High performance volume production with even, consistent, controlled temperatures. 1” (25mm) thick griddle plate. Electronic thermostat with embedded sensor and efficient 'U' shaped burner every 12"(205mm) of griddle width. All stainless steel exterior. Full width front rail. 6" (152mm) legs standard.
Standard Features:
- Electronic Controls
- Stainless steel sides
- Nickel plated thermostat guards
- 7.6" (190.5 mm) High back splash
- 1" (25mm) polished finish steel plate
- Green lamp for each pilot indicating pilot is on
- 6" (152mm) high stainless steel adjustable legs
- Front, full width grease trough with integral front rail
- Stainless steel side griddle splash guards, 3” (76mm) high
- Amber lamp for each section showing when the system is on
- Electric main on/off powerswitch w/ indicator light. Requires 120V 60Hz
- One “U” shaped 30,000 BTU (8.8kW) burner Every 12" (305mm) of Griddle width
- Stainless steel, grease drawers with integral grease baffle std capacity 1.6gal/6 L.
- Stainless steel grease chute extensions for easy drainage into separate container
- Combination gas regulator/solenoid valves to control gas flow to burners and pilots
- Electronic thermostat 150°F (101°C) to 450°F (268°C) for each burner every 12" (305mm)
- Protective Shield for controls
- 20-240 Volts, 60 Hz, no charge
- 10-1/2” (267mm) sloped grease drawers (Stand Models Only), no charge. 1.4 gal/5.25 L
- Stainless steel open stand, 30.292” (769mm) high with stainless steel bottom shelf on adjustable legs or casters (specify).
- 4” (102mm) high stainless steel adjustable legs & 3-1/4” (83mm) high grease drawer, ideal for refrigerated equipment base mounts.Grease drawer capacity 2.36 gal/ 8.9 L.
Heavy duty gas Commercial Griddles (available in three sizes, 48", 60", and 72"). High performance volume production with even, consistent, controlled temperatures. 1” (25mm) thick griddle plate. Electronic thermostat with embedded sensor and efficient 'U' shaped burner every 12"(205mm) of griddle width. All stainless steel exterior. Full width front rail. 6" (152mm) legs standard.
