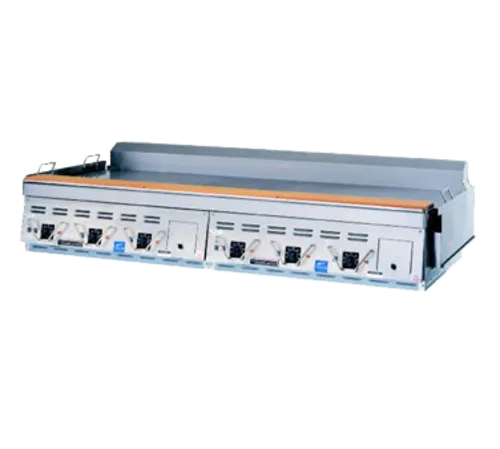

Garland US Range CG-36R Master 36'' Countertop Gas Griddle with Thermostatic Controls - 90,000 BTU

Standard Features:

• Full width front rail
• Electronic controls
• Gas regulator valve
• Stainless steel sides
• Stainless steel backguard
• Stainless steel valve panel
• 8" (203mm) high back splash
• Stainless steel grease trough
• 120V, 60Hz electrical required
• Gas pilot ignition indicator light
• Nickel plated thermostat guards
• Contoured grease chute opening
• 1" (25mm) polished finish steel plate
• Rear grease trough with bottom drawer.
• Stainless steel side griddle splashguards
• 6" (152mm) high stainless steel adjustable legs
• Electric main on/off power switch w/ indicator light
• Electric on/off switch for each thermostat burner system, also has indicator light
• One “U” shaped 30,000 BTU (8.8kW) burner every 12" (305mm) of griddle width
• Electronic thermostat 150°F (101°C) to 450°F (268°C) for each burner every 12" (305mm)
• Stainless steel 6" (152mm) deep, std grease drawers with integral grease baffle. Capacity 1.6 gal/6 L.
  • NOTE: Commercial Griddles supplied with casters must be installed with an approved restraining device.

Optional Features:

• Protective Shield for controls
• 208-240 Volts, 60 Hz, no charge
• Optional extended rear gas connection
• 3/4” x 36” Quick Disconnect gas hose w/restraining device
• 10-1/2" (267mm) sloped grease drawers (Stand Models Only), no charge. 1.4 gal/5.25 L
• Stainless steel open stand, 30.292" (769mm) high with stainless steel bottom shelf on adjustable legs or casters (specify)
• 4” (102mm) high stainless steel adjustable legs & 3-1/4” (83mm) high grease drawer, ideal for refrigerated equipment base mounts. Grease drawer capacity 2.36 gal/ 8.9 L.

Specifications:
Heavy duty gas griddles (available in four sizes, 24” 36", 48", 60", and 72". High performance volume production with even, consistent, controlled temperatures. 1"(25mm) thick griddle plate. Electronic thermostat with embedded sensor and efficient 'U' shaped burner every 12"(205mm) of griddle width All stainless steel exterior. Full width front rail. 6" (152mm) legs standard or optional stand available.
