Garland US Range CG-72R Master 72'' Countertop Gas Griddle with Thermostatic Controls - 180,000 BTU

MPN#: CG-72R
Garland US Range CG-72R Master 72'' Countertop Gas Griddle with Thermostatic Controls - 180,000 BTU
Free Freight?
Quick Ship
$16,426.00 /

Contact us for details

$13,439.00 /
or enjoy small payments $288.80/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 16426
  • Please see specification sheet for installation clearance requirements
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Garland US Range CG-72R Specifications

Plate Thickness1 Inch
Total BTU157000 - 240000
Installation TypeCountertop
SeriesMaster
Power TypeNatural or Propane Gas
Cooking Surface MaterialPolished Steel
ConstructionStainless Steel
With GriddleYes
BrandGarland/US Range
CertificationsNSF
Number of Burners6
BTU180,000 BTU
Control TypeThermostatic
Exterior FinishStainless Steel
ControlsElectronic thermostatic
HeatGas
UsageHeavy Duty
Voltage120 Volts
Width (in)72
Height (in)21
Depth (in)38.75
Weight905.00

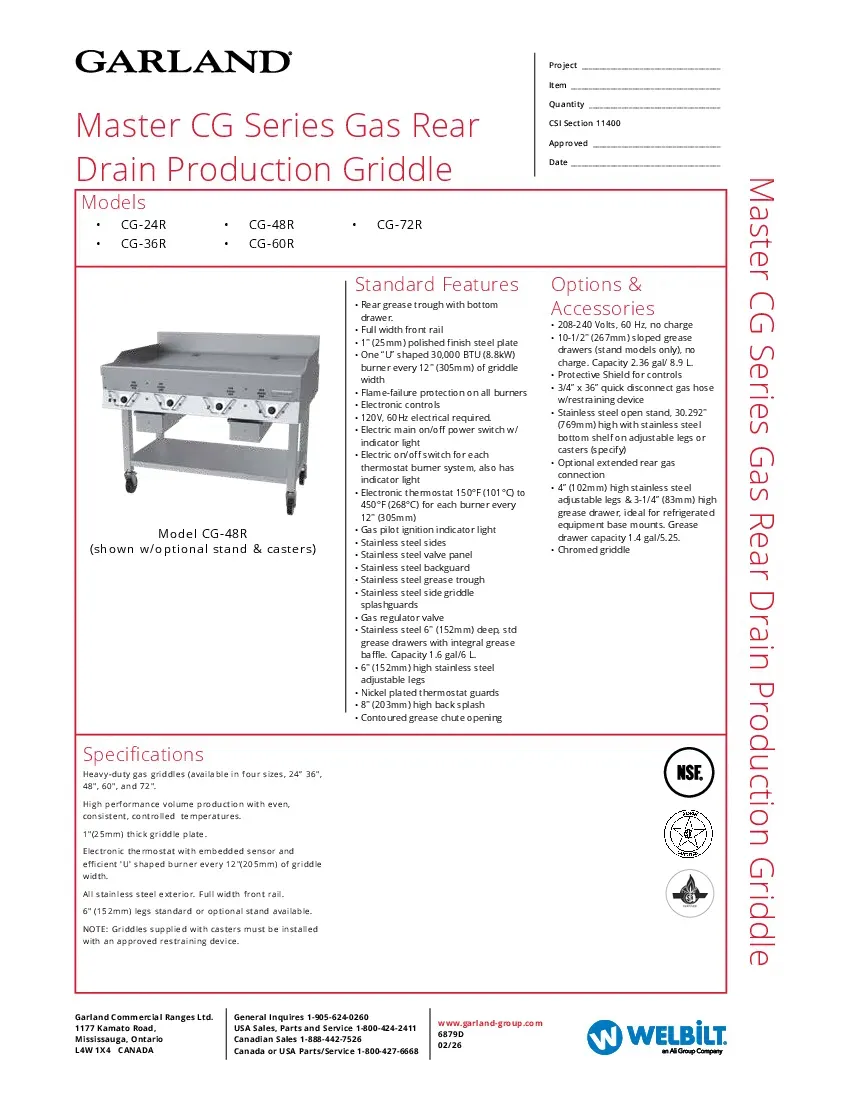

Additional Information on Garland US Range CG-72R

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Garland US Range CG-72R Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Garland US Range CG-72R Description

Master Griddle, countertop, gas, rear drain, 72" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, electronic ignition, stainless steel side & rear splash, stainless steel exterior, EnerLogic™ Technology, 180,000 BTU, (Garland) CSA, NSF
Master Griddle, countertop, gas, rear drain, 72" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, electronic ignition, stainless steel side & rear splash, stainless steel exterior, EnerLogic™ Technology, 180,000 BTU, (Garland) CSA, NSF

Standard Features:
  • Full width front rail
  • Electronic controls
  • Gas regulator valve
  • Stainless steel sides
  • Stainless steel backguard
  • Stainless steel valve panel
  • 8" (203mm) high back splash
  • Stainless steel grease trough
  • 120V, 60Hz electrical required
  • Gas pilot ignition indicator light
  • Nickel plated thermostat guards
  • Contoured grease chute opening
  • 1" (25mm) polished finish steel plate
  • Rear grease trough with bottom drawer.
  • Stainless steel side griddle splashguards
  • 6" (152mm) high stainless steel adjustable legs
  • Electric main on/off power switch w/ indicator light
  • Electric on/off switch for each thermostat burner system, also has indicator light
  • One “U” shaped 30,000 BTU (8.8kW) burner every 12" (305mm) of griddle width
  • Electronic thermostat 150°F (101°C) to 450°F (268°C) for each burner every 12" (305mm)
  • Stainless steel 6" (152mm) deep, std grease drawers with integral grease baffle. Capacity 1.6 gal/6 L.
    • NOTE: Commercial Griddles supplied with casters must be installed with an approved restraining device.
Optional Features:
  • Protective Shield for controls
  • 208-240 Volts, 60 Hz, no charge
  • Optional extended rear gas connection
  • 3/4” x 36” Quick Disconnect gas hose w/restraining device
  • 10-1/2" (267mm) sloped grease drawers (Stand Models Only), no charge. 1.4 gal/5.25 L
  • Stainless steel open stand, 30.292" (769mm) high with stainless steel bottom shelf on adjustable legs or casters (specify)
  • 4” (102mm) high stainless steel adjustable legs & 3-1/4” (83mm) high grease drawer, ideal for refrigerated equipment base mounts. Grease drawer capacity 2.36 gal/ 8.9 L.
Specifications:
Heavy duty gas griddles (available in four sizes, 24” 36", 48", 60", and 72". High performance volume production with even, consistent, controlled temperatures. 1"(25mm) thick griddle plate. Electronic thermostat with embedded sensor and efficient 'U' shaped burner every 12"(205mm) of griddle width All stainless steel exterior. Full width front rail. 6" (152mm) legs standard or optional stand available.

Options for Garland US Range CG-72R

Low-profle
Grease drawer
Control shield
Gas flex hose
Chrome griddle option
Gas type
What is included
  • Standard parts/labor warranty: One year limited parts and labor warranty, covers products purchased and installed in the USA only, standard
Voltage

Garland US Range CG-72R Accessories

Garland US Range SCG-72SS Griddle Stand SCG-72SS
$2,308.00
Garland US Range SCG-72SSC Griddle Stand SCG-72SSC
$2,786.00

Garland US Range CG-72R Parts

All Garland US Range CG-72R Parts
