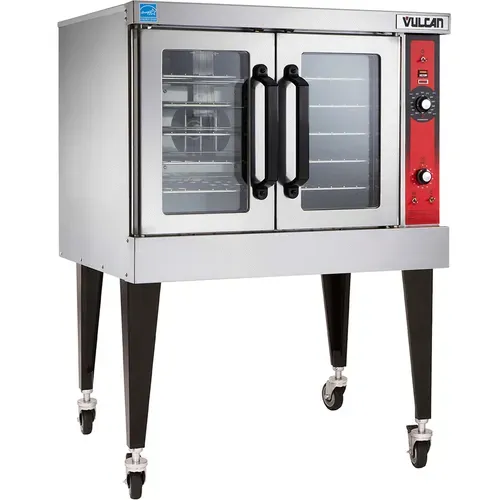

Vulcan VC4EC Single Deck Electric Convection Oven with Computer Contols, 208 Volts
MPN#: VC4EC
Free Freight?
Quick Ship
Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$15,918.00 /
Lowest Price Guarantee
Chat Now
Chat Now
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Vulcan VC4EC Specifications
Control Type | Computer |
---|---|
Installation Type | Freestanding |
Deck | Single |
Oven Interior Style | Standard Depth |
Brand | Vulcan |
Kw (per Deck) | 12.5 Kw |
Energy Efficiency | Energy Star |
Made in | USA |
Certifications | NSF |
Power Type | Electric |
Size | Half |
Interior Finish | Porcelain |
Exterior Finish | Stainless Steel Front & Sides |
Legs | With Legs |
Controls | Computer |
Timer | 99 Hour |
Door Type | Independent |
Heat | Electric |
Material | Stainless Steel |
Voltage | 208 Volts |
Wattage | 11.2 - 20.8 Kilowatts |
Width (in) | 40 |
Height (in) | 54.75 |
Depth (in) | 42.25 |
Weight | 440.00 |
Additional Information on Vulcan VC4EC
sell-sheet.pdf vulcan-vc4ec.specsheet.pdf owner-s-manual.pdf parts-manual.pdf warranty-sheet.pdf service-manual.pdf
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan VC4EC Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Vulcan VC4EC Description
Convection Commercial Oven, electric, single-deck, standard depth, computer controls, 99-hour timer, (5) nickel plated racks, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 1/2 HP, 12.5kW, NSF, cUL, UL, ENERGY STAR®
Convection Oven, electric, single-deck, standard depth, computer controls, 99-hour timer, (5) nickel plated racks, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 1/2 HP, 12.5kW, NSF, cUL, UL, ENERGY STAR®, Commercial Convection Ovens
Standard Features:
- Painted legs.
- 12.5 total KW.
- Moisture vent damper control.
- Stainless steel front, sides and top.
- Oven cool switch for rapid cool down.
- 1⁄2 H.P. two speed oven blower-motor.
- Porcelain enamel on steel oven interior.
- One year limited parts and labor warranty.
- Five nickel plated oven racks with eleven rack positions.
- Independently operated stainless steel doors with double pane windows.
- Casters.
- Stainless steel legs.
- 480V/60 Hz/1 or 3 phase.
- Simultaneous chain driven doors.
- Second year extended limited parts and labor warranty.
- Complete prison package.
- Security screws only.
- Rack hanger(s).
- Extra oven rack(s).
- Stainless steel drip pan.
- Stainless steel rear motor enclosure.
- Down draft flue diverter for direct vent connection.
- Oven/steamer accessory kit. Includes stainless steel marine edge top. Requires 8" legs in lieu of standard legs.
- Stainless steel open stand with adjustable rack supports, stainless steel shelf and choice of adjustable feet or casters.
Single section, electric convection oven, Vulcan-Hart Model No. (VC4ED) (VC4EC). Stainless steel front, sides and top. Painted legs. Independently operated stainless steel doors with double pane windows. Non-sag insulation applied to the top, rear, sides, bottom and doors. Porcelain enamel on steel oven interior measures 29"w x 22 1⁄8"d x 20"h. Two interior oven lights. Five nickel plated oven racks measure 28 1⁄4" x 20 1⁄2". Eleven position nickel plated rack guides with positive rack stops. Heated by electric solid sheath elements rated at 12 KW. Furnished with a two speed 1⁄2 H.P. oven blower-motor. Oven cool switch for rapid cool down. 208 or 240 volt, 60 Hz, 1 or 3 phase. NSF listed. UL listed. UL listed to Canadian safety standards.
Features | |
---|---|
■ : | Oven cool switch for rapid cool down. One year limited parts and labor warranty. Porcelain enamel on steel oven interior. Independently operated stainless steel doors with double pane windows. Stainless steel front, sides and top. 12.5 total KW. Painted legs. Five nickel plated oven racks with eleven rack positions. 1 / 2 H.P. two speed oven blower-motor. Moisture vent damper control. |
