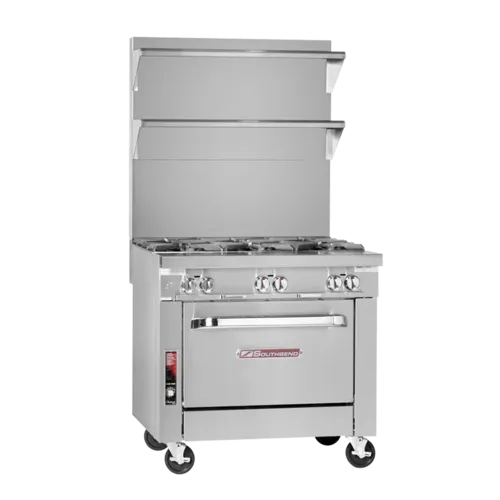

Southbend P48D-BBBB-SU Platinum Heavy Duty Range

MPN#: P48D-BBBB-SU
Southbend P48D-BBBB-SU Platinum Heavy Duty Range
Free Freight?
Quick Ship
$19,171.00 /
$17,210.77 /
or enjoy small payments $369.86/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 19171
  • Please see specification sheet for installation clearance requirements
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Southbend P48D-BBBB-SU Specifications

BTU 35,000 BTU
Total BTU225000 - 325000
Number of Burners3 - 5
Burner Type35,000 BTU open burners
Installation TypeFreestanding
Burner StyleGrates
Range Base StyleStandard Oven
BrandSouthbend
CertificationsNSF
Control TypeManual
HeatGas
Number of Ovens1
StyleStep-Up
Width (in)48
Height (in)41
Depth (in)37.5
Weight568.00

Additional Information on Southbend P48D-BBBB-SU

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend P48D-BBBB-SU Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Southbend P48D-BBBB-SU Description

Platinum Heavy Duty Range, gas, 48", (4) 35,000 BTU open burners, (4) 35,000 BTU step-up open burners, manual controls, standing pilot, (1) standard oven, (1) 12" cabinet, includes (2) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 325,000 BTU, CSA, NSF


This 48" heavy-duty commercial gas range fits eight (8) 35,000 BTU open burners, a standard oven, and a 12" cabinet in one 325,000 BTU unit. Designed to withstand the rigors of daily commercial use, the unit is stainless steel on the front, sides, exterior bottom, and 6" legs, which are also adjustable to suit uneven floors.

The four (4) rear open burners are placed higher than the front burners to facilitate a smoother, more streamlined workflow. The burners each have a welded steel top grate that serves as solid support for pots and pans. The non-clogging design of the burners ensures proper gas flow and optimal size and strength of the flame. A removable drip tray helps you maintain the entire open top. The front is a 9.5" deep rail.

The standard oven with a 45,000 BTU burner and a standing pilot bakes at a temperatures range of 175 degrees Fahrenheit to 550 degrees Fahrenheit. You can set the exact temperature using the thermostatic controls to achieve desired results for each recipe. There are two (2) racks supplied, which you can set on five (5) side rails to find the best cooking spot for the products. The oven interior is porcelain enamel for easy cleaning. This commercial range also has a stainless steel cabinet where you can store all your cooking supplies for instant access. The doors are removable and can be opened from the center.

This commercial gas range is made complete with the fully insulated lining and burner box and the 5" stainless steel flue riser, which helps remove the heat and smoke produced during cooking by diverting it away from the user and towards the ventilation hood.

This heavy-duty range meets all CSA and NSF standards. For more premium-quality restaurant and heavy-duty ranges and commercial cooking equipment, make sure to check out our full collection!

Options for Southbend P48D-BBBB-SU

Continuous front rail & belly bar
Range depth
Grate option
Open storage cabinet
Flame failure & spark ignition
Oven options
Gas types
Prison options
Stainless steel options
Extended warranty
Mounting options
What is included
  • Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
  • Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)
  • Factory note: NOTE: 5" flue riser, standard
