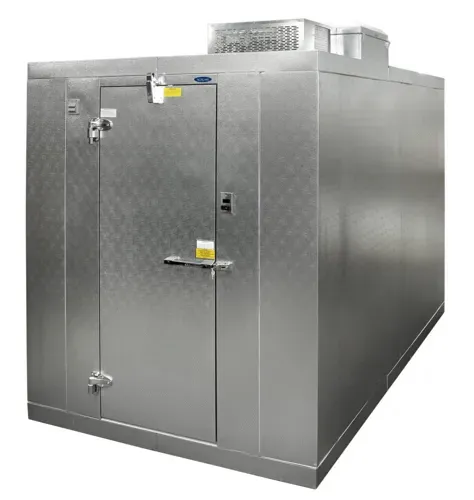

Nor-Lake KLB741014-C Walk-In Cooler & Top Mounted Compressor

SKU#: KLB741014-C
Made in USA
Free Freight?
Quick Ship
$16,651.60

for more information

$13,787.52
or enjoy small payments $296.29/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 16652
  • 2023 model, meets the newest EPA and DOE codes.
  • A refrigeration Technician is not required.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Free electronic controls and digital thermometer
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Nor-Lake KLB741014-C Specifications

Nominal Width10 Feet
Nominal Depth14 Feet
BrandNor-Lake
Refrigerant TypeR-290
Refrigeration MountedTop
Made inUSA
ShippingQuick Ship Model
CategoryWalk In Cooler, Modular, Self-Contained
Capacity860 Cubic Feet
Compressor LocationTop Mounted
Door TypeSolid
Door DesignSwing
With FloorFloor Included
Temperature Range35 - 38 Degrees F
UsageIndoor
Voltage208/230 Volts
Width (in)120
Height (in)88
Depth (in)168
Weight1985.00

Nor-Lake KLB741014-C Description

Kold Locker™, Indoor +35°F Cooler, 10' x 14' x 7'-4" H, floorless, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, CPB100PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

The KLB741014-C 10' x 14' x 7'-4" H Kold Locker from NorLake is an easy pick for anyone looking for a dependable 8'4" high indoor walk-in unit without a floor.

Each panel is 4” thick and comes with a corrosion-resistant embossed stucco finish on 26 gauge steel for durability. The interior of this walk-in coolers with top mounted compressor is filled with EPA-compliant polyurethane foamed-in-place insulation. Kold Locker walk-in units are easy to assemble, each panel has male and female mating rails that make alignment easy while foamed-in-place cam locking fasteners lock the panels together for an airtight seal. The corners feature panel gaskets that go around the exterior perimeter continuously without any breaks or cuts. Edge caps on ceiling panels are foamed-in-place that keep them in place through the life of the unit.

The standard 26” wide door has a stepped profile that acts as a barrier to airflow resulting in an energy-efficient door system. An upgraded 30” wide door kit that comes with a stainless steel kick plate is available at no extra cost. The door comes with two hinges that can be installed on the right or left to best fit your needs. The two cam-lift hinges are field-adjustable to compensate for settling and come with a locking set screw. To keep cooling costs low, a spring-loaded door closer is included. The door panel is 4’ wide with the door pre-hung from the factory. A replaceable perimeter heating wire is included as well as a vapor proof LED lighting fixture that is activated by a switch complete with an exterior indicator light, a digital thermometer, and magnetic stainless steel trim. The interior is secured with an NL 9800 deadbolt handle with an independent key/padlock feature. To keep workers safe, the interior has a safety release to make sure they are never locked in.

A temperature between 35°F and 38°F is efficiently maintained by the ceiling-mounted RCPB100JC-S-4-EV Capsule Pak Refrigeration System that produces 84 BTU/hr of heat rejection. The temperature inside the walk-in is adjusted with the Enviro-Control™ electronic controller system, it is also used to set the automatic defrost timer. Drain lines are not required thanks to the automatic condensate vaporizer included with the unit. The automatic condensate vaporizer is shipped loose and needs to be wired in the field.

Nor-Lake KLB741014-C Walk-In Cooler & Top Mounted Compressor

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB741014-C

Door width
Celsius thermometer, lights & trim
Non-skid strips
Lift gate delivery
NOTE:
Floor tread plate & shelving packages
Capsule Pak refrigeration
Freight
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
