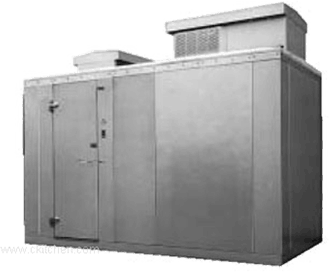

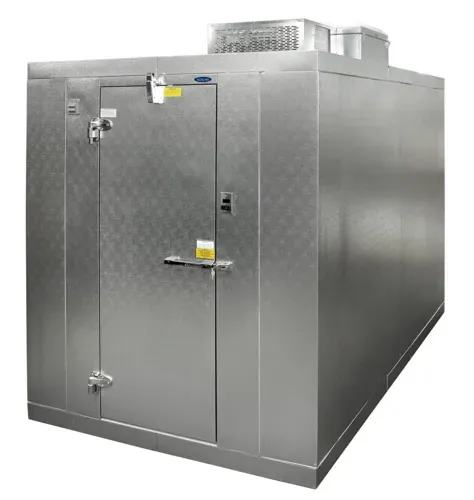

Nor-Lake KODB77610-C Walk-In Cooler & Top Mounted Compressor

SKU#: KODB77610-C
Made in USA
Free Freight?
Quick Ship
$14,707.90

for more information

$12,178.14
or enjoy small payments $261.71/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 14708
  • A refrigeration Technician is not required.
  • 2023 model, meets the newest EPA and DOE codes.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Outdoor boxes may have special requirements from your state or municipality (building dept. etc.) Please enquire.
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.

Nor-Lake KODB77610-C Specifications

Nominal Depth10 Feet
Nominal Width6 Feet
Refrigerant TypeR-449A
BrandNor-Lake
Refrigeration MountedTop
Made inUSA
ShippingQuick Ship Model
CategoryWalk In Cooler, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloor Included
UsageOutdoor
Voltage115 Volts
Width (in)72
Height (in)91
Depth (in)120
Weight1555.00

Nor-Lake KODB77610-C Description

Kold Locker™, Outdoor +35°F Cooler, 6' x 10' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, membrane roof, CPB075PC-E-0, R290 Capsule Pak ECO Refrigeration, 115v/60/1-ph

For enterprises that need to expand their refrigerated storage space but have limited indoor space, an outdoor walk-in cooler like the KODB77610-C 6' x 10' x 7'-7" H Kold Locker from NorLake is an excellent option. The interior of this walk-in coolers with top mounted compressor offers 344 cu. ft. of refrigerated space.

To assure durability the internal and exterior surfaces of the panels feature an embossed stucco coating to provide corrosion resistance to the 26 gauge steel. These panels are 4” thick with foamed-in-place insulation between the steel panels providing an R-value of 25. The panels have male and female rails that mate together to ensure proper alignment during installation. Foamed-in-place cam locking fasteners provide an air-tight seal while a continuous panel gasket goes around the outer perimeter without breaks or cuts at the corners. The ceiling and floor panels feature foamed-in-place edge caps that will stay in place for the life of the cooler.

By default, the door that comes with this unit is 26” wide with a stepped profile that impedes airflow for a more energy-efficient door. To accommodate wider loads the door can be upgraded to a 30” wide one that comes complete with a stainless steel kick plate. The door comes with two hinges that can be installed on the right or left to best fit your needs. The two cam-lift hinges are field-adjustable to compensate for settling and come with a locking set screw. To keep cooling costs low, a spring-loaded door closer is included. The door panel is 4’ wide with the door pre-hung from the factory. A replaceable perimeter heating wire is included as well as a vapor proof LED lighting fixture that is activated by a switch complete with an exterior indicator light, a digital thermometer, and magnetic stainless steel trim. The interior is secured with an NL 9800 deadbolt handle with an independent key/padlock feature. To keep workers safe, the interior has a safety release to make sure they are never locked in.

The ceiling-mounted refrigeration unit is an RCPB050JC-S-0-EV Capsule Pak unit that produces 4060 BTU/hr of efficient cooling that maintains temperatures between 35°F and 38°F. The refrigeration system is controlled by the Enviro-Control™ electronic control system which sets the temperature, defrost timer, and can be used to manually start a defrost cycle. To protect this outdoor model from the elements, Nor-Lake includes a white 35 mill membrane roof material that doesn’t require gluing or seaming. The membrane roof is held in place with metal trim to flash it to the side of the unit secured by self-drilling/tapping TEK screws.

Nor-Lake KODB77610-C Walk-In Cooler & Top Mounted Compressor

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KODB77610-C

Door width
Celsius thermometer, lights & trim
Door rain hood
Door ramp & non-skid strips
Flat freight program
Heater kit
Lift gate delivery
NOTE:
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • NOTE:: Outdoor walk-ins shipping to the state of Florida or any other area requiring hurricane wind load ratings are NOT INCLUDED in the Kold Locker™ program, please contact factory for pricing
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
