Nor-Lake KLB87814-C Walk-In Cooler & Top Mounted Compressor

Name: Nor-Lake KLB87814-C Walk-In Cooler & Top Mounted Compressor
Brand: Nor-Lake
SKU: KLB87814-C
Price: 17869.975 USD
Availability: InStock

SKU#: KLB87814-C

1/17

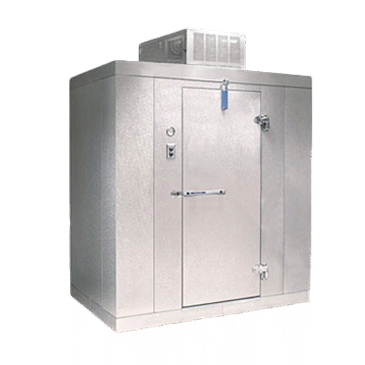

Nor-Lake KLB87814-C Walk-In Cooler & Top Mounted Compressor

OPTIONS
REVIEWS
Q & A
RECOMMENDED ITEMS

Free Freight?

Quick Ship

$17,869.98

Sign-In here for more information

$14,796.34

or enjoy small payments $317.97/mo.

Calculate

Product Protection

Starting at

Reward Points

You will earn 17870

$$$ View Nor-Lake Promos

2023 model, meets the newest EPA and DOE codes.

Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

View all Nor-Lake Walk-In Coolers

Nor-Lake KLB87814-C Specifications

Nominal Depth	12 Feet
Nominal Width	8 Feet
Brand	Nor-Lake
Refrigerant Type	R-290
Refrigeration Mounted	Top
Shipping	Standard Shipping
Category	Walk In Cooler, Modular, Self-Contained
Compressor Location	Top Mounted
With Floor	Floor Included
Usage	Indoor
Voltage	208/230 Volts
Width (in)	96
Height (in)	103
Depth (in)	144
Weight	2389.00

Additional Information on Nor-Lake KLB87814-C

nor-lake-klb87814-c.specsheet.pdf

warranty.pdf

owner-s-manual.pdf

flyer.pdf

capsule-pak-manual.pdf

capsule-pak-spec-sheet.pdf

nor-lake-klb87814-c.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Nor-Lake KLB87814-C Description

Kold Locker™, Indoor +35°F Cooler, 8' x 14' x 8'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, CPB100PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:

STANDARD MODELS SHIP THE SAME DAY
DOE compliant
USDA accepted
Magnetic gasket
15 year panel warranty
Cooler or freezer models
Indoor or outdoor models
26" wide, self-closing door
CN UL flame spread listed
Perimeter door heater wire
Floor double sweep gasket
Spring actuated door closer
Sizes from 4' x 6' to 10' x 14'
Two temperatures: +35°F, -10°F
18 months parts & labor warranty
Digital thermometer and light switch
Heavy duty adjustable cam-lift hinges
Three heights: 6'7" & 7'7" with floor; 7'4" floorless
Air-cooled condensing unit (wall mount - 10 day ship)
Smooth aluminum interior floor (on models with floor)
Floorless models supplied with NSF listed vinyl sealers
Oregon State listed, City of Houston listed & California State listed
Automatic condensate vaporizer. No drain line required on indoor units
Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
Deadbolt locking handle with independent key/padlock feature and inside safety release
Time clock or electronic control provided for automatic defrost on both coolers and freezers
26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
High output low profile LED light positioned above the door to prevent interference with shelving or product

Indoor Models

Hot gas condensate vaporizer available on many models

Outdoor Models

Refrigeration hood
-20°F ambient controls
White membrane roof and trim

Optional Features

Exterior ramp
Electric vaporizer
Floor tread plate kit
U-shaped shelving system
Door hood (outdoor models)
Five year compressor warranty
Condensing unit air deflector kit
Heights: 8'7" with floor, 8'4" without floor
Leak detector/alarm (may be a requirement in some areas)
Heater kit for outdoor use where ambient conditions may go below 32°F
Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB87814-C

Door width

Standard 26" door width Optional 30" door width, lead time may be affected (not available on 6' high Kold Lockers) +$73.31 Optional 36" door width, lead time may be affected (not available on 6' and 6'7" high Kold Lockers) +$73.31

Celsius thermometer, lights & trim

24" LED light fixture (shipped loose) +$263.93 48" LED light fixture (shipped loose) +$263.93 9" LED light fixture - 120 volt only (shipped loose) +$203.60 Trim Strip, 3" x 3" x 8'-7" angle, galvanized, for walk-in +$20.95 Trim Strip, 6" x 8'-7" flat, galvanized, for walk-in +$20.95

Door ramp & non-skid strips

Exterior Ramp, for walk-ins with floors +$437.81 Non-Skid Floor Strips, (shipped loose) price per strip +$4.61

Flat freight program

Freight Region: Canada Freight Region: Central Freight Region: Northeast Freight Region: South Freight Region: Southeast Freight Region: West

Lift gate delivery

Lift gate not applicable for panels. Panels to be hand off-loaded or forklift off-loaded +$98.00

NOTE:

Contact factory regarding walk-ins shipping to California, Washington or Oregon as these likely will require seismic restraints & Quick Ship LEAD TIME WILL NOT APPLY

Capsule Pak refrigeration

Capsule Pak™ Refrigeration System, cooler, ceiling mount, indoor, 100 series, R-449A (IN LIEU of R290 system included in Kold Locker model description)

What is included

Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
Panel warranty: 15 year original equipment panel warranty
Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
Compressor warranty: 18 Month Labor/Service and original equipment parts warranty

Door hinging

Door hinged on left Door hinged on right
