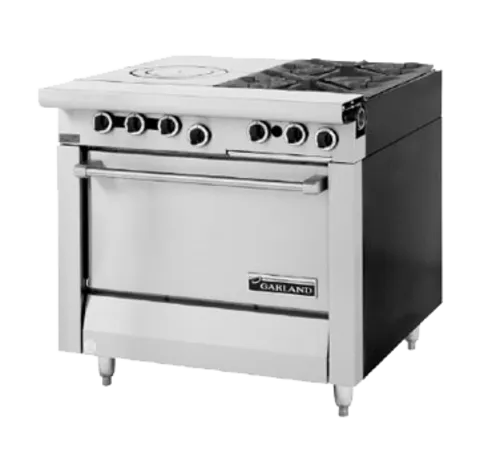

Garland US Range MST54S-E Master Sentry Series Heavy Duty Range

MPN#: MST54S-E
Garland US Range MST54S-E Master Sentry Series Heavy Duty Range
Free Freight?
Quick Ship
$8,162.00 /

Contact us for details

$6,678.00 /
or enjoy small payments $143.51/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 8162
  • Please see specification sheet for installation clearance requirements
  • Additional required flue riser sold separately

Garland US Range MST54S-E Specifications

BTU 35,000 BTU
Number of Burners1 - 2
Total BTU16000 - 130000
Burner Type35,000 BTU open burners
Installation TypeFreestanding
Burner StyleHot top
Range Base StyleStorage Base
BrandGarland/US Range
CertificationsCE
Exterior FinishStainless Steel Front & Sides
BaseStorage
Gas TypeLP
HeatGas
Number of OvensNone
Range ConfigurationBurners
StyleStandard
Width (in)34
Height (in)36.38
Depth (in)38
Weight375.00

Additional Information on Garland US Range MST54S-E

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Garland US Range MST54S-E Certifications

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Garland US Range MST54S-E Description

Master Series Heavy Duty Range, gas, 34", (2) 35,000 BTU open burners, (1) 17" front fired hot top, storage base, electric ignition & flame fail on burners, stainless steel front & sides, 6" legs, 115,000 BTU CE, CSA Flame, CSA Star, NSF (Garland),
This 115,000 BTU heavy-duty commercial gas range has two (2) open burners and a 17" front-fired hot top at the front and a storage cabinet at the base. With its stainless steel front and sides, this unit is extremely durable and easy to clean. The open burners come with cast-iron top grates that create a flat surface for pots and pans. The hot top packs three (3) individually controlled jet burners and removable cast-iron ring and lid to accommodate various cookware and simplify cleanups. All burners in this commercial range come with electric ignition and flame failure protection for safe operation.

This heavy-duty range is set on 6" chrome steel legs that are adjustable to a range of working heights. The unit meets all CE, CSA Flame, CSA Star, and NSF standards.

Need more restaurant and heavy-duty ranges or other commercial cooking equipment? We have a great selection here at CKitchen!

Standard Features:

  • Cast iron top grates
  • Piezo spark ignition for oven
  • 7-1/2" stainless steel front rail
  • 6" chrome steel adjustable legs
  • Fully porcelainized oven interior
  • Electric Spark ignition on all pilots
  • One piece stainless steel drip tray
  • Removable ring grate bowl over each burner
  • One heavy duty cast iron front‑fired top on left
  • Sentry total flame failure protection for all burners
  • Stainless steel front; black powder coat epoxy sides
  • 40,000 BTU natural gas, 35,000 BTU propane gas cast iron oven burner
  • Removable cast iron ring and lid with 3 individually controlled jet burners; 40,000 BTU total, 30,000 BTU for CSA approved propane models
  • Two (2), 2-piece Starfire open burners w/ removable heads rated 30,000 BTU CE approved or 35,000 BTU CSA approved models, (natural or propane gas)
Optional Features
  • Additional oven rack
  • End caps and cover
  • Convection oven base
  • Hot top section on right
  • Gas regulator 3/4" or 1-1/4"
  • Stainless steel oven interior
  • Celsius dial for oven thermostat
  • 6" stainless steel adjustable legs
  • Dais base (not for use with "RC" oven)
  • Gas shut off valve; 3/4", 1" or 1-1/4" NPT
  • Stainless steel backguard: 10", 17" or 33"
  • Stainless steel left, right, both sides or main back
  • Storage base shelf of aluminized or stainless steel
  • Stainless steel tubular high shelf, single or double deck
  • Polyurethane non-marking swivel casters (4) w/ front brakes
  • 230 volt, 50 cycle components, RC motor and/or electric ignition (export)
  • Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device
  • Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
  • Rear gas connection 3/4", 1" or 1-1/4" NPT, left or right mount add 5-1/4" to exterior range width

Options for Garland US Range MST54S-E

Range finishes
Common front rail
Electronic ignition voltage
Gas connection
Security options
Factory note
Extended warranty
Gas type
Mounting options
What is included
  • Standard parts/labor warranty: Two year limited parts and labor warranty, covers products purchased and installed in the USA only, standard
  • NOTE: Note: All Master Series Ranges, storage, modular, fryers, attachment & under-fired char broilers require a high shelf or back guard attachment

Videos

NOTE! This is a general product line video and does not necessarily reflect the listed model.

Garland US Range MST54S-E Master Sentry Series Heavy Duty Range

Garland US Range MST54S-E Accessories

Garland US Range MST54S-E Parts

All Garland US Range MST54S-E Parts

Garland US Range MST54S-E Reviews

There are no reviews yet for this product.
