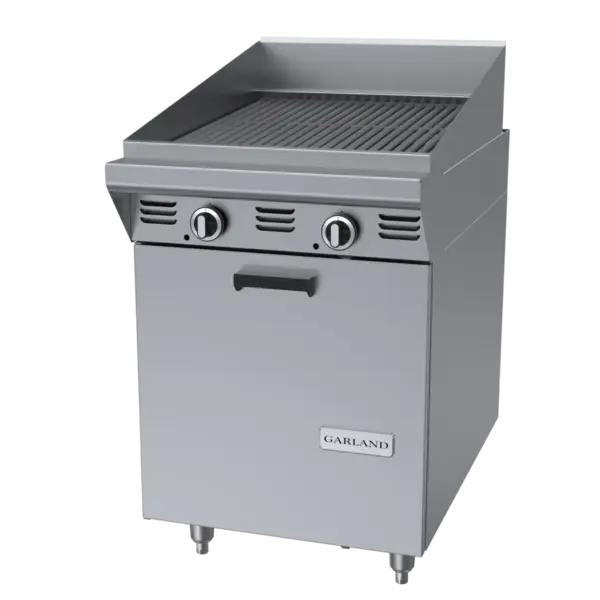

Garland US Range MST24BE Master Series Charbroiler
MPN#: MST24BE
Free Freight?
Quick Ship
$9,065.00 /
Contact us for details
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Garland US Range MST24BE Specifications
Total BTU | 56000 - 104000 |
---|---|
Installation Type | Freestanding |
Burner Style | Grates |
Heating Source | Lava Rocks |
Power Type | Natural Gas |
Range Base Style | Storage Base |
Brand | Garland/US Range |
Number of Burners | 4 |
Control Type | Electronic |
BTU | 60,000 BTU |
Base | Storage |
BTU per Burner | 15,000 BTU |
Heat | Gas |
Usage | Heavy Duty |
Width (in) | 24 |
Height (in) | 46.25 |
Depth (in) | 38 |
Weight | 330.00 |
Additional Information on Garland US Range MST24BE
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range MST24BE Description
Master Series Charbroiler, gas, 24" W x 23" D grill area, briquettes, flat/tilt grates, reversible grates, electric spark ignition, pilot valve with flame fail, storage base, stainless steel front and sides (stainless steel exposed sides on batteries), 6" legs, 60,000 BTU (Garland)
Master Series Charbroiler, gas, 24" W x 23" D grill area, briquettes, flat/tilt grates, reversible grates, electric spark ignition, pilot valve with flame fail, storage base, stainless steel front and sides (stainless steel exposed sides on batteries), 6" legs, 60,000 BTU (Garland)
Standard Features:
Master Series Char-broiler with stainless steel front and sides. Broiling area consists of heavy duty rack sections which are easily moved for flat or tilt position broiling. Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite side. 15,000 BTU (4.39 kW) burners controlled by individual Hi-Lo valves. Sentry total flame failure protection for all burners Large capacity full length grease drawers. Heavy-weight, long lasting briquettes. Cabinet, 17" (432mm), 24" (610mm), or 34" (864mm), wide by 34" (869mm) deep, with two stainless steel full-sized hinged doors and front. Natural gas or propane. Available in modular models, suffix BT.
Standard Features:
- Stainless steel front rail
- 1-1/4" NPT front manifold
- Stainless steel front doors
- Stainless steel front and sides
- 15,000 BTU (4.39 kW) burners
- Storage base interior of aluminized steel
- 6" (152mm) chromed steel adjustable legs
- Piezo spark ignition with constant burning pilots
- Sentry total flame failure protection for all burners
- Electric Spark ignition on all pilots Suffix -E models
- Modular top broilers (suffix "BT"), modular broiler is 14-1/2" (368mm) from broiler base to working height
- Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite sides
- Dais base
- Stainless steel main back
- Gas regulator 3/4" or 1-1/4"
- Rear gas connection; 3/4" NPT
- End caps and cover (NC, specify)
- Gas shut off valve; 3/4", 1" or 1-1/4" NPT
- 6" (152mm) stainless steel adjustable legs
- 230 volt, 50 cycle components, electric ignition, (export)
- Dual-sided, steel diamond, (fine) in lieu of cast iron grate
- Polyurethane non‑marking swivel casters (4) w/front brakes
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/ restraining device, please specify
Master Series Char-broiler with stainless steel front and sides. Broiling area consists of heavy duty rack sections which are easily moved for flat or tilt position broiling. Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite side. 15,000 BTU (4.39 kW) burners controlled by individual Hi-Lo valves. Sentry total flame failure protection for all burners Large capacity full length grease drawers. Heavy-weight, long lasting briquettes. Cabinet, 17" (432mm), 24" (610mm), or 34" (864mm), wide by 34" (869mm) deep, with two stainless steel full-sized hinged doors and front. Natural gas or propane. Available in modular models, suffix BT.
Garland US Range MST24BE Accessories
Garland US Range MST24BE Reviews
There are no reviews yet for this product.
Questions and Answers
Compare Garland US Range MST24BE to Other Products
Rating
Price
Width (in)
Depth (in)
Height (in)
Number of Burners
Range Base Style
BTU
Price
$9,065.00 24
38
46.25
4
Storage Base
60,000 BTU
Price
$8,300.50 24
37.5
41
3 - 5
Storage Base
64,000 BTU
Price
$8,219.50 24
37.5
41
1 - 2
Storage Base
35,000 BTU
Price
$8,946.00 24
38
46.25
4
Storage Base
60,000 BTU
Price
$9,717.00 240
36.75
360
Price
$7,536.66 24.00
36.25
36.50
