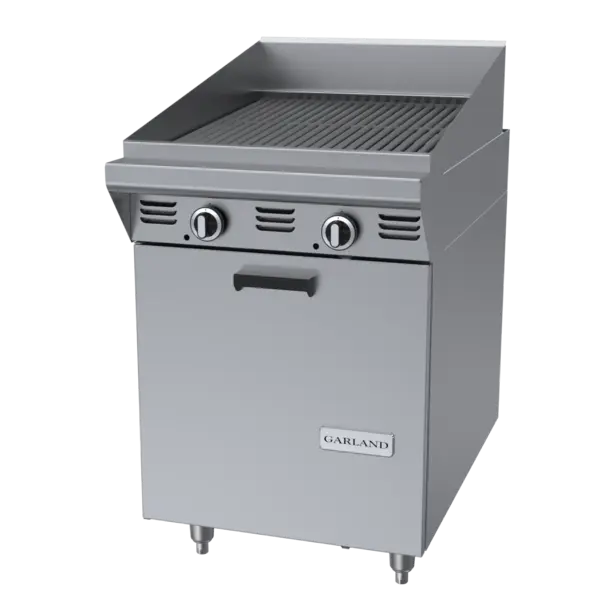

Garland US Range MST24B Master Series Charbroiler

• Stainless steel front rail
• 1-1/4" NPT front manifold
• Stainless steel front doors
• Stainless steel front and sides
• 15,000 BTU (4.39 kW) burners
• Storage base interior of aluminized steel
• 6" (152mm) chromed steel adjustable legs
• Piezo spark ignition with constant burning pilots
• Sentry total flame failure protection for all burners
• Electric Spark ignition on all pilots Suffix -E models
• Modular top broilers (suffix "BT"), modular broiler is 14-1/2" (368mm) from broiler base to working height
• Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite sides

Optional Features:

• Dais base
• Stainless steel main back
• Gas regulator 3/4" or 1-1/4"
• Rear gas connection; 3/4" NPT
• End caps and cover (NC, specify)
• Gas shut off valve; 3/4", 1" or 1-1/4" NPT
• 6" (152mm) stainless steel adjustable legs
• 230 volt, 50 cycle components, electric ignition, (export)
• Dual-sided, steel diamond, (fine) in lieu of cast iron grate
• Polyurethane non‑marking swivel casters (4) w/front brakes
• Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
• Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/ restraining device, please specify

Specifications:
Master Series Char-broiler with stainless steel front and sides. Broiling area consists of heavy duty rack sections which are easily moved for flat or tilt position broiling. Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite side. 15,000 BTU (4.39 kW) burners controlled by individual Hi-Lo valves. Sentry total flame failure protection for all burners Large capacity full length grease drawers. Heavy-weight, long lasting briquettes. Cabinet, 17" (432mm), 24" (610mm), or 34" (864mm), wide by 34" (869mm) deep, with two stainless steel full-sized hinged doors and front. Natural gas or propane. Available in modular models, suffix BT.
