Garland US Range Garland/US Range HEEGM24CL 24" Gas Countertop Standard Duty Radiant Charbroiler with Infinite Control - 58,000 BTU
MPN#: HEEGM24CL
Free Freight?
Quick Ship
$6,937.00 /
Contact us for details
Calculate
Product Protection
Starting at
- Free after installation performance check
- Please see specification sheet for installation clearance requirements
Garland US Range HEEGM24CL Specifications
| Total BTU | 56000 - 104000 |
|---|---|
| Burner Type | Cast iron burners |
| Installation Type | Countertop |
| Burner Style | Grates |
| Power Type | Natural Gas |
| With Griddle | No |
| Heating Source | Radiant |
| Brand | Garland/US Range |
| Certifications | 5-15P |
| Number of Burners | 4 |
| Burner | 4 |
| Control Type | Infinite |
| Exterior Finish | Stainless Steel |
| BTU | 58,000 BTU |
| BTU per Burner | 14,500 BTU |
| Heat | Gas |
| Usage | Standard Duty |
| Voltage | 120 Volts |
| Width (in) | 24 |
| Height (in) | 18.06 |
| Depth (in) | 38.06 |
| Weight | 280.00 |
Additional Information on Garland US Range HEEGM24CL
garland-performance-check.pdf

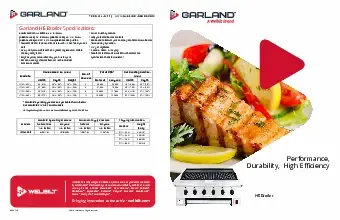

brochure.pdf
parts-manual.pdf
owner-s-manual.pdf
garland-us-range-heegm24cl.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range HEEGM24CL Certifications
5-15P
Two-pole with ground pin plug
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range HEEGM24CL Description
Broiler, 3/4" gas regulator, generic version, 24" W x 38-1/16" D x 18-1/16" H, (4) cast iron burners with individual cast iron radiants, cast iron grates, spark ignition, front rail with removable 1/3 size food pan cut-outs, large capacity removable drip pans/water pans, power switch, stainless steel exterior, 58,000 BTU, 9 ft cord & NEMA 5-15P, NSF, CSABroiler, 3/4" gas regulator, generic version, 24" W x 38-1/16" D x 18-1/16" H, (4) cast iron burners with individual cast iron radiants, cast iron grates, spark ignition, front rail with removable 1/3 size food pan cut-outs, large capacity removable drip pans/water pans, power switch, stainless steel exterior, 58,000 BTU, 9 ft cord & NEMA 5-15P, NSF, CSAStandard Features:
- 3/4" gas regulator
- Large capacity, removable grease trays
- 9' cord & NEMA 5-15P plug standard for 120V models
- Cast iron energy efficient burners with each burner having a cast iron radiant
- Combination wire broiler rack cleaning brush and scraper for cleaning cooking grates
- Stainless steel construction and front rail with cut outs to hold 1/3 size food pans (pans not included)
- Heavy duty removable cast iron grates, reversible with wide brand edge on one side & fine edge on the other
- Each burner, rated 14,500 BTU for natural gas &13,000 BTU for propane gas, and is individually controlled by a two position hi-lo valve
- Complete system on/off power switch(s), which operate main gas burner ignition & main burner shut down: HEEGM-24CL & 36CL models have one switch HEEGM-48CL and 60CL have two
- 220-240V model available (comes without cord & plug)
- 2 1/8" (54mm) stub solid front rail in lieu of 1/3 front rail
- Fajita pan rack holder in lieu of two broiler rack sections, N/C. Using only one fajita pan rack holder per broiler is recommended
- Stainless steel stands with or without casters. See form HEMST. Broiler may be required to be silicone sealed onto non-combustible surfaces to meet NSF agency approvals
Garland High Efficiency (HE) Char-Broiler with natural gas. Finish is to be stainless steel construction and front rail with 1/3 size food pan cut-outs. Available in 24" (610mm) [HEEGM-24CL], 34" (864mm) [HEEGM-36CL], 48" (1219mm) [HEEGM-48CL] and 58" (1473mm) [HEEGM-60CL] widths.
