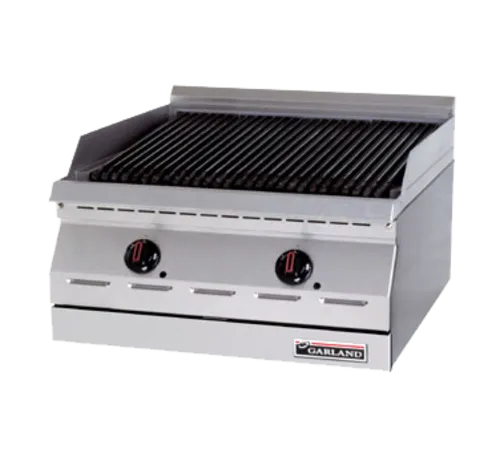

Garland US Range Garland/US Range GD-18RBFF 18" Gas Countertop Standard Duty Radiant Charbroiler with Manual Control - 45,000 BTU
MPN#: GD-18RBFF
1/2
Free Freight?
Quick Ship
$4,369.00 /
Contact us for details
Calculate
Product Protection
Starting at
- Free after installation performance check
- Please see specification sheet for installation clearance requirements
Garland US Range GD-18RBFF Specifications
| Total BTU | 12000 - 55000 |
|---|---|
| Installation Type | Countertop |
| Power Type | Natural or Propane Gas |
| With Griddle | No |
| Heating Source | Radiant |
| Brand | Garland/US Range |
| Number of Burners | 1 |
| Certifications | CE |
| Control Type | Manual |
| BTU | 45,000 BTU |
| BTU per Burner | 45,000 BTU |
| Controls | Valve |
| Heat | Gas |
| Usage | Standard Duty |
| Width (in) | 18 |
| Height (in) | 15 |
| Depth (in) | 24 |
| Weight | 110.00 |
Additional Information on Garland US Range GD-18RBFF
owner-s-manual.pdf
gar1079a.pdf
parts-manual.pdf
brochure.pdf
garland-performance-check.pdf
garland-us-range-gd-18rbff.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range GD-18RBFF Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range GD-18RBFF Description
Designer Series Charbroiler, countertop, gas, 18" W, cast iron radiants, (1) high/low valve control, piezo spark ignition, flame failure protection, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs, 45,000 BTU (Garland), CSA, NSF, CE
Designer Series Charbroiler, countertop, gas, 18" W, cast iron radiants, (1) high/low valve control, piezo spark ignition, flame failure protection, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs, 45,000 BTU (Garland), CSA, NSF, CE
Standard Features:
Gas designer series broilers in four widths; models GD-18RB 18" (460mm) wide GD-24RB 24"(610mm) wide GD-30RB 30" (760mm wide) and GD-36RB 36" (914mm) wide. Designed as free standing or to be banked with other GD series equipment. 24" (610mm) deep x 15" (381mm) high, easy clean design with stainless steel front and sides, cast iron radiants, and optional broiler splatter shield. Hi-Lo valve controlled, piezo spark ignition, natural or propane gas, 45,000, 60,000, 75,000 and 90,000 BTU. "CE" approved models are equipped with Flame-Failure protection and have suffix "FF".
Standard Features:
- Easy clean design
- Cast iron radiants
- Hi-Lo control valve
- Piezo spark ignition
- Natural or propane gas
- 4" (102mm) Sanitary legs
- Stainless steel front and sides
- 18" (457mm) deep cooking surface
- Rear gas connection w/pressure regulator
- 45,000, 60,000, 75,000 or 90,000 BTU total input
- "CE" approved models are equipped with Flame-Failure protection and have suffix "FF"
- Stainless steel back and bottom
- Removable stainless steel 3-piece broiler splatter guard specify width. Shield will add 10" height around top section of broiler. Note : Stands are available see form # CS24/CSD
Gas designer series broilers in four widths; models GD-18RB 18" (460mm) wide GD-24RB 24"(610mm) wide GD-30RB 30" (760mm wide) and GD-36RB 36" (914mm) wide. Designed as free standing or to be banked with other GD series equipment. 24" (610mm) deep x 15" (381mm) high, easy clean design with stainless steel front and sides, cast iron radiants, and optional broiler splatter shield. Hi-Lo valve controlled, piezo spark ignition, natural or propane gas, 45,000, 60,000, 75,000 and 90,000 BTU. "CE" approved models are equipped with Flame-Failure protection and have suffix "FF".
