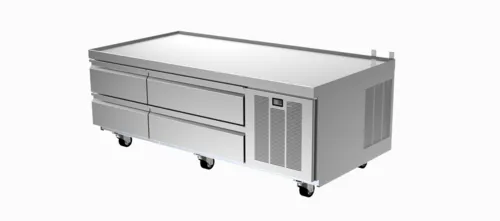

Delfield F2960CP 60.25" 2 Drawer Refrigerated Chef Base with Marine Edge Top - 115 Volts
Contact us for details
- 2023 model, meets the newest EPA and DOE codes.
Delfield F2960CP Specifications
Width Range | 36 to 60 Inches |
---|---|
Top Style | Marine Edge |
Construction | Stainless Steel |
Brand | Delfield |
Refrigerant Type | R-290 |
Certifications | NSF |
Capacity | 6 Full Size Food Pans |
Compressor Location | Remote |
Number of Drawers | 2 |
Sections | 1 |
Voltage | 115 Volts |
Width (in) | 60.25 |
Height (in) | 24 |
Depth (in) | 31.94 |
Weight | 464.00 |
Additional Information on Delfield F2960CP
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Delfield F2960CP Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Delfield F2960CP Description
Do more in a single part of your kitchen by adding this 60" wide single-section F2960P refrigerated low-profile equipment stand with stainless steel top and two (2) refrigerated drawers to your lineup. This 24" tall, 31 47/50" deep all-in-one solution features 4" casters to add mobility during cleaning and setup. A wall bracket is also available out of the box if you wish to set up the unit against a solid surface. Each drawer can accommodate six (6) 12 x 12 x 4" hotel pans or a combination of smaller fractional pans!
This refrigerated equipment stand features an all-stainless steel drawer system, drawer fronts, ends, and exterior sides, making this unit highly durable and very easy to clean! The Delrin-constructed drawer tracks are sturdy and anti-friction and do not need grease to operate.
The cold base on this commercial chef base keeps products fresh and chilled at 36 to 40 degrees Fahrenheit using an environmentally friendly R290 refrigerant. It is fully insulated with foamed-in-place high-density polyurethane while an ABS thermoformed plastic holds the snap-in, easy-to-remove drawer gaskets for a structurally sound build!
This commercial chef base is powered by a 1/5 hp compressor. It uses electric controls to maintain ideal cooling conditions for products. Mullion-style coated blower coils are installed to achieve even temperature and air control. All refrigeration components are mounted together on the side of the unit including an electric condensate evaporator to eliminate condensation.
This Delfield low-profile refrigerator and equipment stand combo has NSF 7, cUL, and UL certifications. It is rated at 2.9 amps and uses a 115/60/1 electrical connection. An 8' cord with NEMA 5-15P plug is supplied.
We have a full line of premium-quality commercial refrigerators & freezers to complete your kitchen!
Standard Features:
- Digital thermometer
- Mounted on casters
- 8' cord and plug supplied
- Standard stainless steel ends
- Wall-mounted bracket to prevent tipping
- Exterior drawer fronts are stainless steel
- Snap-in drawer gaskets for easy removal
- Environmentally friendly R290 refrigerant
- Height of surface for setting equipment is 25.50"
- Top is heavy duty stainless steel, with full perimeter marine edge
- Interior refrigerated base cabinet section to maintain 36° to 40° meeting NSF7
- Three year parts and labor warranty and an additional two year compressor parts warranty.
- When ordering, specify make, model and depth of cooking equipment sitting on the equipment stand
- Base interior cabinet is cooled with mullion style coated blower coil(s) mounted between each door/drawer section for even air and
- temperature control
- High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam insulation throughout unit
- Full Extension Plus Drawer system is a complete drawer system. Drawer system is sized to hold 12" x 20" x 4" deep hotel pans (by
- others). The drawer system is all stainless steel construction for maximum durability
- Drawer locks
- Stainless steel back
- Plastic laminate end
- Plastic laminate front
- Plastic laminate back
- 6" casters in lieu of 4"
- Mechanical housing left side
- Doors in lieu of drawers (except 32")
- Celsius readout for electronic control
- 6.12" adjustable full stainless steel legs and bullet feet
- Single drawer in lieu of two high drawers (8" deep pans)
- Remote refrigeration available in R404A (contact factory)
- 8" deep clear polycarbonate pans in full, 1/2 and 1/3 size dimensions available
