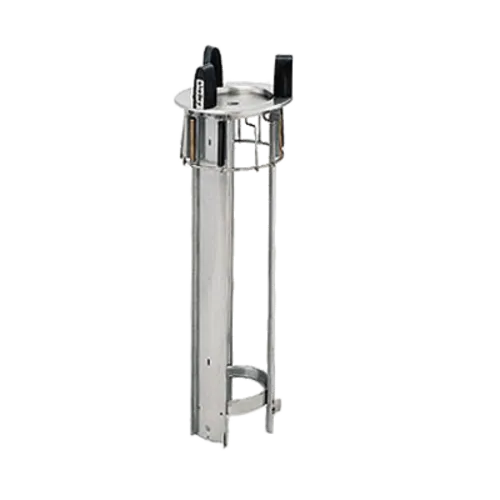

Delfield DIS-1200-ET Heated Shielded Round Drop-In Dish Dispenser for 10-1/8 to 12" Dishes
MPN#: DIS-1200-ET
Call us for price
1-800-555-0666
Delfield DIS-1200-ET Specifications
| Brand | Delfield |
|---|---|
| Certifications | NSF |
| Type | Heated |
| Dish Diameter | for 10-1/8 to 12" Dishes |
| Shape | Round |
| Style | Shielded |
| Voltage | 120 Volts |
| Height (in) | 28 |
| Weight | 32 |
Additional Information on Delfield DIS-1200-ET
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Delfield DIS-1200-ET Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Delfield DIS-1200-ET Description
Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 12" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 14-3/4", flange diameter 15.38", 7.0 kW, cUL, UL, NSF (contact factory for price)
Even Temp Heated Dish Dispenser, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 12" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 14-3/4", flange diameter 15.38", 7.0 kW, cUL, UL, NSF (more food holding and warming equipment available)
Standard Features:
Standard Features:
- Spring supports to be stainless steel
- High impact plastic guide posts mounted to flange
- One year parts and 90 day labor standard warranty
- Flange, channels and bottom to be integrally welded
- Carrier head made of welded rods with a removable top plate
- Top flange, bottom brace and vertical side channels are stainless steel
- Self-leveling mechanism, field adjustable by adding or removing springs
- DIS-ET/QT Series Only
- 4’ cord and plug
- Filtered air intake
- Outer stainless steel jacket
- QT- Shall have a stainless steel cover
- On/off switch and adjustable thermostat
- Convection heating module and fan motor
- ET temperature range is 120-140°F (49-60°C)
- QT temperature range is 150-170°F (66-77°C)
Options & Accessories
- Special voltages
- Hold-down rod for dispenser tubes
- Shorten dispenser tubes to special length
- Stainless steel tube cover (500-725 sizes only)
- Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
- Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
- Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
- 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET, and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.
