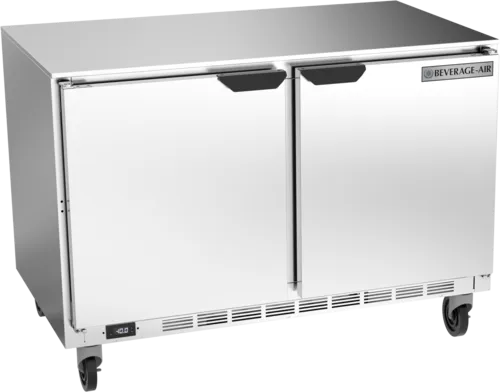

Beverage Air UCF48AHC 48'' 2 Section Undercounter Freezer with 2 Left/Right Hinged Solid Doors and Front Breathing Compressor

SKU#: UCF48AHC
Made in USA
Free Freight?
Quick Ship
$4,081.28
$3,561.34
or enjoy small payments $76.53/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 4081
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air UCF48AHC Specifications

Access TypeDoors
Compressor StyleFront Breathing
Hinge LocationLeft/Right
Door HingeLeft/Right Hinged
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Number of Doors2
Refrigeration SystemSelf-contained
Capacity11 - 30 cu. ft.
Door TypeSolid
Sections2
StyleCounter Height
Voltage115 Volts
Width (in)48
Height (in)34.63
Depth (in)32
Weight272.00

Additional Information on Beverage Air UCF48AHC

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air UCF48AHC Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air UCF48AHC Description

Undercounter Freezer, two-section, 48"W, 11.04 cu. ft., (2) doors, (4) shelves, stainless steel top with turned down edges, stainless steel exterior top, front, sides, doors & grille, aluminum interior, rear-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/2 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

Easy access to frozen storage is a major benefit, it can reduce response times to get customers what they need as quickly as possible. The UCF48AHC Undercounter Freezer from Beverage Air is a compact unit that stays out of the way while providing plenty of frozen storage. With 11.04 cu. ft. of storage this model might be the key to quicker response times and happier customers at your establishment.

The reach-in sections are easy to access through stainless steel doors that are self-closing to save on power costs. A total of four epoxy-coated wire shelves are included to maximize the usable space. To free up users’ hands when accessing multiple items from the freezer, the doors have a stay-open feature that is activated when the door is opened to 120˚. Magnetic door gaskets are included to make sure when the doors are closed the seal is airtight.

The refrigeration system is self-contained and located at the bottom of the unit to save space.  A ½ HP compressor that produces 1865 BTU/hr provides plenty of cooling to efficiently maintain a safe temperature. The epoxy-coated evaporator in this unit makes sure efficient cooling is provided in a reliable manner for many years with minimal service. Full electric controls keep the temperature below 0ºF while consuming as little electricity as possible. To keep the refrigeration system running as efficiently as possible while minimizing downtime an automatic electric defrost cycle is used by this unit. R290 Hydrocarbon refrigerant is used for efficient and environmentally responsible cooling. The unit ships from the factory with 6” casters allowing the unit to be moved for service or cleaning. Locking casters at the front of the unit secure it in place when in use. Power is provided to the unit with the 8’ power cord that comes prewired from the factory with a NEMA 5-15P plug set for use with a standard outlet with 115v/60/1-ph power at 7.0 amps.

Beverage Air UCF48AHC 48'' 2 Section Undercounter Freezer with 2 Left/Right Hinged Solid Doors and Front Breathing Compressor

Undercounter Freezer, two-section, 48" W, 13.9 cu. ft., (2) doors, (4) shelves, stainless steel top with turned down edges, stainless steel exterior, aluminum interior, rear-mounted self-contained refrigeration, 6" casters, R290 Hydrocarbon refrigerant, 1/3 hp, UL, cUL, UL EPH, MADE IN USA

Standard Features:
  • Cabinet Construction
    • Full electronic control
    • Field reversible door(s)
    • Interior thermometer is standard
    • Painted aluminum door handle(s)
    • 6” Casters, two (2) with brakes standard
    • Undercounter feature a 1/2” thick sub-top
    • Easy door removal for service and cleaning
    • Freezer temperatures is held at or 0ºF of below
    • Interior liner is made of corrosion resistant aluminum
    • Magnetic gasket attached to each door for positive seal
    • Two epoxy-coated steel wire shelves per section standard
    • Self-closing doors with 120˚ stay-open feature, on cartridge style hinges
    • Stainless steel front, sides, top, door(s), (galvanized steel back & bottom)
  • Refrigeration System
    • Epoxy coated evaporator coil
    • System is serviceable from rear
    • Automatic, non-electric evaporator
    • Refrigeration system uses R290 refrigerant to comply with all environmental concerns
  • Options & Accessories
    • 6” Legs
    • 3” Casters
    • Shelf dividers
    • Low profile casters
    • Stainless steel back
    • Solid door(s) with locks
    • Foot pedal door opener
    • Glass door(s) with locks
    • Cutting board top option
    • Stainless steel interior available

Options for Beverage Air UCF48AHC

Stainless steel interior
Legs & Casters
Stainless steel back
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 7.0 amps, cord with NEMA 5-15P
  • Door construction: Solid hinged stainless steel doors, standard
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
Door hinging
16 gauge top
