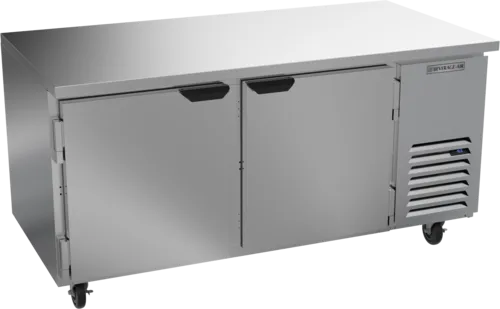

Beverage Air UCF67AHC 67'' 2 Section Undercounter Freezer with 2 Left/Right Hinged Solid Doors and Side / Rear Breathing Compressor
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air UCF67AHC Specifications
Access Type | Doors |
---|---|
Hinge Location | Left/Right |
Door Hinge | Left/Right Hinged |
Compressor Style | Side / Rear Breathing |
Construction | Stainless and Galvanized Steel |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Made in | USA |
Certifications | cULus |
Number of Doors | 2 |
Refrigeration System | Self-contained |
Capacity | 11 - 30 cu. ft. |
Door Type | Solid |
Sections | 2 |
Style | Counter Height |
Voltage | 115 Volts |
Width (in) | 67 |
Height (in) | 34.5 |
Depth (in) | 34.75 |
Weight | 266.00 |
Additional Information on Beverage Air UCF67AHC
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air UCF67AHC Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air UCF67AHC Description
If your establishment needs a compact undercounter freezer the Beverage Air UCF67AHC Undercounter Freezer is an excellent solution that provides plenty of storage space in a compact package. The 20.08 cu. ft. this freezer offers is plenty of capacity for a unit of its size.
The reach-in cabinets each have two epoxy-coated shelves to organize items and maximize the usability of the space. Sturdy stainless steel doors provide convenient access and are self-closing to reduce power consumption. To free up users’ hands when accessing multiple items from the freezer, the doors have a stay-open feature that is activated when a door is opened to 120˚. Magnetic door gaskets are included to make sure when the doors are closed the seal is airtight.
2312 BTU/hr of cooling potential is provided by the refrigeration system at the right side of this unit with a ¾ HP compressor. The epoxy-coated evaporator in this unit makes sure efficient cooling is provided in a reliable manner for many years with minimal service. Full electric controls keep the interior temperature below 0ºF while consuming as little electricity as possible. To keep the refrigeration system running as efficiently as possible while minimizing downtime an automatic electric defrost cycle is used by this unit. R290 Hydrocarbon refrigerant is used for efficient cooling that has a minimal negative impact on the environment.
For convenience, this freezer is mounted on 6” casters allowing it to be easily moved when necessary. To keep it fixed in place the front casters are locking. The unit is easy to attach to a standard 115v/60/1-ph power source with its factory wired 8’ power cord with NEMA 5-15P plug set.
Standard Features:
- Cabinet Construction
- Full electronic control
- Field reversible door(s)
- Interior thermometer is standard
- Painted aluminum door handle(s)
- 6” Casters, two (2) with brakes standard
- Undercounter feature a 1/2” thick sub-top
- Easy door removal for service and cleaning
- Freezer temperatures is held at or 0ºF of below
- Interior liner is made of corrosion resistant aluminum
- Magnetic gasket attached to each door for positive seal
- Two epoxy-coated steel wire shelves per section standard
- Self-closing doors with 120˚ stay-open feature, on cam-lift hinges
- Stainless steel front, sides, top, door(s), (galvanized steel back & bottom)
- Refrigeration System
- Epoxy coated evaporator coil
- System is serviceable from front
- Automatic, non-electric evaporator
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- 6” Legs
- 3” Casters
- Low profile casters
- Stainless steel back
- Foot pedal door opener
- Stainless steel interior available
