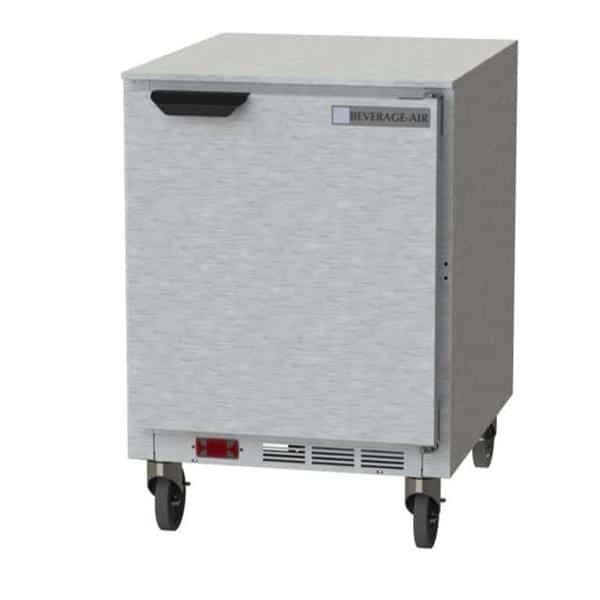

Beverage Air UCF24AHC 24'' 1 Section Undercounter Freezer with 1 Right Hinged Solid Door and Front Breathing Compressor

SKU#: UCF24AHC
Made in USA
Free Freight?
Quick Ship
$2,625.70
$2,291.19
or enjoy small payments $49.24/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 2626
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air UCF24AHC Specifications

Access TypeDoors
Compressor StyleFront Breathing
Hinge LocationRight
Door HingeRight Hinged
ConstructionStainless and Galvanized Steel
BrandBeverage Air
Refrigerant TypeR-290
Number of Doors1
Made inUSA
CertificationscULus
Refrigeration SystemSelf-contained
Capacity1 - 10 cu. ft.
Door TypeSolid
Sections1
StyleCounter Height
Voltage115 Volts
Width (in)24
Height (in)34.63
Depth (in)32
Weight182.00

Additional Information on Beverage Air UCF24AHC

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air UCF24AHC Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air UCF24AHC Description

Undercounter Freezer, one-section, 24"W, 4.9 cu. ft. capacity, (1) door, (2) shelves, stainless steel top with turned down edges, stainless steel exterior top, front, sides, door & grille, galvanized steel exterior bottom and back, aluminum interior, rear-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

A compact freezer like the Beverage Air UCF24AHC Undercounter Freezer is extremely useful in establishments that have limited space or need quick access to frozen products from a counter. This freezer has 5.16 cu. ft. of cold storage in a simple compact package that stays out of the way.

The self-closing door on this model prevents excessive power draw while maintaining a sub-zero temperature inside. Two epoxy-coated shelves inside the unit provide users with storage options. To make accessing multiple items as simple as possible the door can be opened to 120˚ to keep it open allowing users to use both hands. When the door is closed a magnetic gasket makes sure that an airtight seal is maintained.

The refrigeration system is self-contained and located at the bottom of the unit to save space.  A ¼ HP compressor producing 857 BTU/hr of cooling efficiently maintains a safe temperature. To keep food safe, the temperature inside is maintained below 0ºF by the fully electronic controls. An epoxy-coated evaporator coil makes sure efficient cooling will be provided for many years with minimal service. The unit features an automatic electric defrost cycle for convenience. R290 refrigerant is eco-friendly and provides efficient cooling while meeting all regulations.

To make cleaning and maintenance simple 6” casters are included, the front casters are locking to provide a stable platform when in use. The unit is prewired from the factory with an eight-foot power cord that terminates in a NEMA 5-15P plug set to connect to a standard outlet with 115v/60/1-ph power at 2.5 amps.

Beverage Air UCF24AHC 24'' 1 Section Undercounter Freezer with 1 Right Hinged Solid Door and Front Breathing Compressor

Undercounter Freezer, (1) Door, 6" Casters, (2) Shelves, One-section, 24" W, 7.0 cu. ft., Aluminum interior, Stainless steel exterior, R290 Hydrocarbon refrigerant, 1/6 hp, UL, cUL, UL EPH, MADE IN USA, Rear-mounted self-contained refrigeration, Stainless steel top with turned down edges


Standard Features:
  • Cabinet Construction
    • Field reversible door
    • Full electronic control
    • Painted aluminum door handle
    • Interior thermometer is standard
    • 6” Casters, two (2) with brakes standard
    • Undercounter feature a 1/2” thick sub-top
    • Easy door removal for service and cleaning
    • Two epoxy-coated steel wire shelves standard
    • Freezer temperatures is held at or 0ºF of below
    • Interior liner is made of corrosion resistant aluminum
    • Magnetic gasket attached to each door for positive seal
    • Stainless steel front, sides, top, door, (galvanized steel back & bottom)
    • Self-closing doors with 120˚ stay-open feature, on cartridge style hinges
  • Refrigeration System
    • Epoxy coated evaporator coil
    • System is serviceable from rear
    • Automatic, non-electric evaporator
    • Refrigeration system uses R290 refrigerant to comply with all environmental concerns
  • Options & Accessories
    • 6” Legs
    • 3” Casters
    • Foot pedal opener
    • Low profile casters
    • Solid door with lock
    • Stainless steel interior
    • Stainless steel back and grille

Options for Beverage Air UCF24AHC

Stainless steel interior
Legs & Casters
Stainless steel back
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 2.5 amps, cord with NEMA 5-15P
  • Door construction: Solid hinged stainless steel door, standard
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
Door hinging
16 gauge top

Beverage Air UCF24AHC Accessories

Beverage Air UCF24AHC Parts

All Beverage Air UCF24AHC Parts
