Beverage Air HBF23HC-1 27.25'' 22.5 cu. ft. Bottom Mounted 1 Section Solid Door Reach-In Freezer

MPN#: HBF23HC-1
Made in USA
Free Freight?
Quick Ship
$4,991.89
$4,355.93
or enjoy small payments $93.61/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 4992
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air HBF23HC-1 Specifications

Freezer Capacity22.5 cu. ft.
Half DoorsNo
Hinge LocationRight
ConstructionStainless and Galvanized Steel
BrandBeverage Air
Refrigerant TypeR-290
Number of Doors1
Made inUSA
CertificationscULus
Capacity11 - 30 cu. ft.
Compressor LocationBottom Mounted
Door TypeSolid
Sections1
Temperature Range0 Degrees F
Voltage115 Volts
Width (in)27.25
Height (in)84.25
Depth (in)33.75
Weight412.00

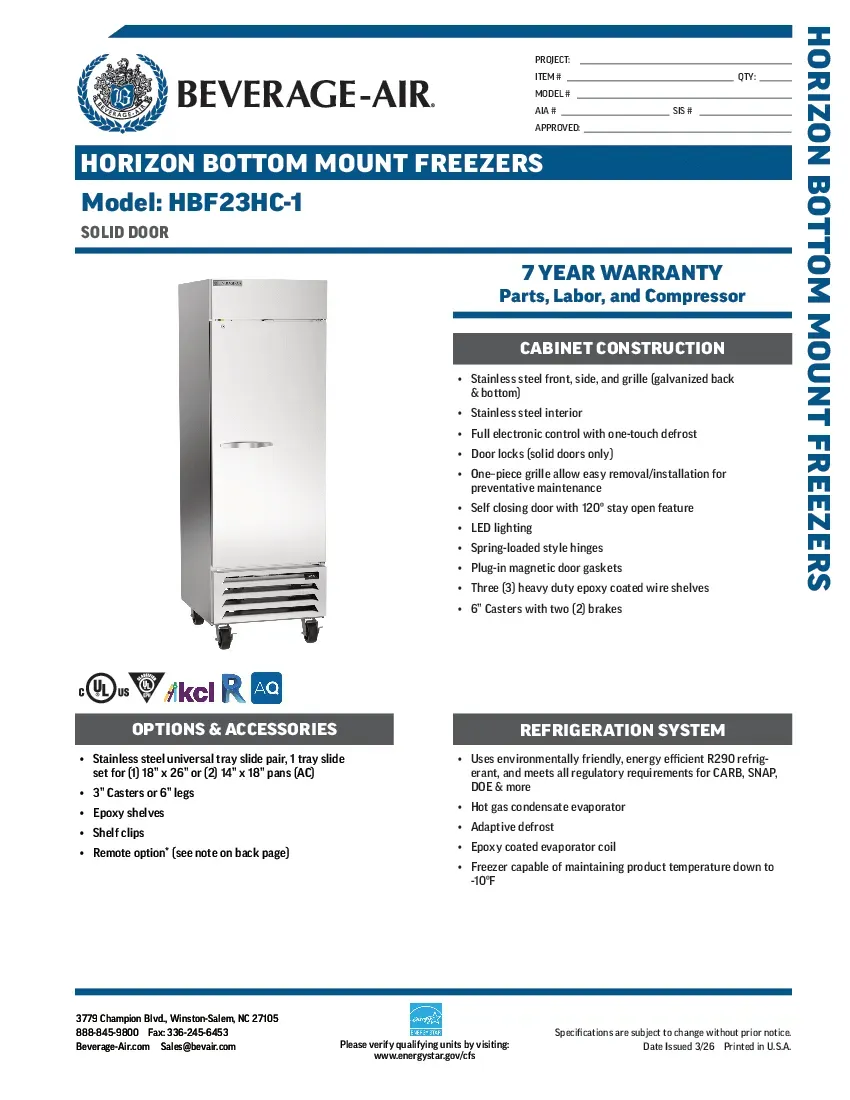

Additional Information on Beverage Air HBF23HC-1

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air HBF23HC-1 Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air HBF23HC-1 Description

Horizon Series Freezer, reach-in, one-section, 27-1/4"W, 84-1/8"H, 23.3 cu. ft. capacity, (1) right-hand hinged solid door (lockable), (3) adjustable shelves, electronic control, LED interior lighting, digital display, expansion valve technology, adaptive defrost, bottom mounted self-contained refrigeration, stainless steel interior, stainless steel exterior front, sides & grill, galvanized back & bottom, R290 Hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The Beverage Air HBF23HC-1 Horizon Series Freezer is an excellent choice for any operator that wants a dependable unit that will last for many years. This unit is configured to keep up to 22.5 cu. ft. of food frozen.

The stainless steel interior is easy to clean and maintain. Food items are easily organized with three heavy-duty epoxy-coated wire shelves. The door is easily opened with an anti-microbial handle and is self-closing to prevent it from being left open accidentally. When accessing multiple items users can open the door to 120º and it will remain open allowing them to use both hands.

Cooling is provided by a bottom-mounted self-contained refrigeration system with a ¾ HP compressor offering 1927 BTU/hr of cooling potential. To keep food frozen the temperature inside is kept below 0ºF by the full electronic control. An epoxy-coated evaporator coil makes sure efficient cooling will be provided for many years with minimal service. This unit defrosts automatically with an electric system to eliminate downtime to maintain cooling efficiency. To meet all environmental regulations R290 hydrocarbon refrigerant is used.

For convenience Beverage Air normally ships this unit on 6” casters allowing it to be moved easily. It can also be ordered with 3” casters or 6” legs without an increase to its price. Connecting this unit to a standard outlet supplying 115v/60/1-ph power at 7.5 amps is simple with the factory-provided 8-foot power cable with a NEMA 5-15P plug set.

Beverage Air HBF23HC-1 27.25'' 22.5 cu. ft. Bottom Mounted 1 Section Solid Door Stainless Steel Reach-In Freezer

Options for Beverage Air HBF23HC-1

Refrigeration
Tray slides
What is included
  • Voltage: 115v/60/1-ph, 7.5 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
Door hinging
Legs & casters

Beverage Air HBF23HC-1 Accessories

Beverage Air 403-900D-02 Shelf 403-900D-02
$78.51
Beverage Air 00C31-055A Legs 00C31-055A
$196.11
Beverage Air 403-169A Shelf clip 403-169A
$1.97

Beverage Air HBF23HC-1 Parts

All Beverage Air HBF23HC-1 Parts

Beverage Air HBF23HC-1 Reviews

There are no reviews yet for this product.

Questions and Answers

Compare Beverage Air HBF23HC-1 to Other Products

Rating
Price
Width (in)
Depth (in)
Height (in)
Freezer Capacity
Compressor Location
Refrigerant Type
Sections
Number of Doors
Door Type
Half Doors
Hinge Location
Rating

Price
$4,991.89 $4,355.93
27.25
33.75
84.25
22.5 cu. ft.
Bottom Mounted
R-290
1
1
Solid
No
Right
Rating

Price
$4,604.26 $4,388.01
53.93
32.67
82.99
49 cu. ft.
Bottom Mounted
R-290
2
2
Solid
No
Left/Right
Rating

Price
$5,041.16 $4,398.93
26
33.63
84.5
24 cu. ft.
Top Mounted
R-290
1
1
Solid
No
Right
Rating
  • 5 1
(1)
Price
$5,042.80 $4,400.36
26
33.63
84.5
24 cu. ft.
Top Mounted
R-290
1
1
Solid
No
Right
Rating

Price
$4,613.00 $4,456.61
39.38
33.13
82
33 cu. ft.
Bottom Mounted
R-290
2
2
Solid
No
Left/Right
Rating

Price
$5,254.00 $4,475.15
52.25
36.84
83
48 cu. ft.
Top Mounted
R-448A
2
2
Solid
No
Left/Right
