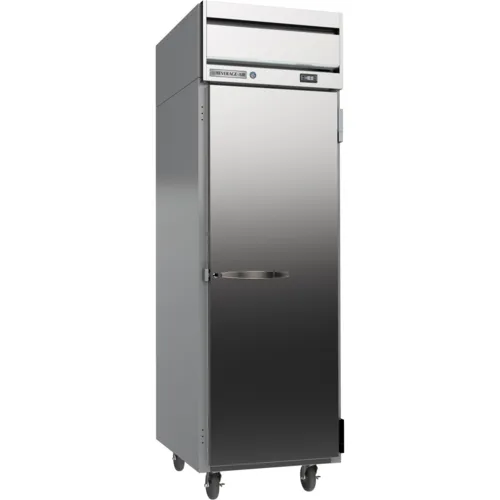

Beverage Air HF1HC-1S 26'' 24.0 cu. ft. Top Mounted 1 Section Solid Door Reach-In Freezer

Beverage Air HF1HC-1S Description

Horizon Series Freezer, reach-in, one-section, 21.06 cu. ft., (1) right-hand solid hinged door with locks, (3) adjustable shelves, electronic control, LED interior lighting, digital display, expansion valve technology, automatic defrost, top-mounted self-contained refrigeration, stainless steel front, gray painted sides, aluminum interior, R290 Hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The HF1HC-1S Horizon Series Freezer from Beverage Air is an excellent choice for a back-of-house freeze that just works. This unit was specifically designed for use in commercial establishments for reliable frozen storage that users can depend on for years. The interior of this freezer can hold up to 21.06 cu. ft. to keep food frozen for extended periods.

This unit comes with three durable epoxy-coated shelves that maximizes the use of space while keeping items well organized. Everything inside the corrosion-resistant aluminum lined interior is easy to see thanks to the cool LED lighting that will outlast other forms of lighting while consuming less energy. An anti-microbial door handle allows the door to open with minimal effort while providing an extra level of sanitation. To keep the interior nice and cool as efficiently as possible the doors are self-closing. When users need to use both hands to access multiple items the doors can be opened to 120º to activate the stay-open feature.

The self-contained refrigeration system is housed at the top of the unit keeping it far away from dust and debris on the floor. This configuration also allows heat to rise out of the unit efficiently. The refrigeration system uses a ¾ HP compressor unit putting out 1997 BTU/hr of cooling. The epoxy-coated evaporator in this model makes sure that a temperature below 0ºF is maintained efficiently and reliably. Fully electronic controls keep power consumption and stress on the refrigeration system to a minimum. The automatic electric defrost cycle keeps the unit running efficiently without downtime. R290 refrigerant is eco-friendly and provides efficient cooling while meeting all regulations.

The unit can be configured with 3” casters or 6” legs at no extra cost but come standard with 6” casters allowing it to be easily moved into and out of place for cleaning or maintenance. An 8-foot power cable comes from the factory prewired with a NEMA 5-15P plug set for use with standard 115v/60/1-ph power.

A key part of any successful kitchen, the Beverage Air HF1HC-1S Horizon Series Freezer is well worth your time. This item is 78.50 inches tall, 26 inches wide, and 32 inches deep.

• Cabinet Construction
  • Interior - Aluminum interior with curved corners standard.
  • Insulation - 2” foamed-in-place CFC and HCFC-free polyurethane insulation.
  • Exterior - Stainless steel exterior front and gray painted sides standard (Additional exterior finish options available - see right).
• Electronic Control
  • Electronic thermostat with manual defrost button provides a digital display of cabinet temperatures, which includes status indicators and key pad for any necessary temperature adjustments.
• Refrigeration System
  • Expansion Valve technology.
  • Automatic evaporation system for energy efficiency.
  • Automatic defrost system is fully automatic, time-initiated and temperature terminated operation.
  • Top mount balanced refrigeration system with evaporator positioned out of the food zone to maximize capacity.
  • Factory engineered, self-contained refrigeration system uses environmentally friendly (CFC and HCFC-free) R404A refrigerant.
  • Unique down draft airflow system ensures uniform distribution of airflow throughout the entire cabinet to ensure even product temperatures; maintains product temperatures at or near –10°F.
• Doors
  • Choose from solid door or half-solid door configuration.
  • Anti-microbial door handles and door locks are standard.
  • Plug-in magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
  • Field reversible doors and cam lift hinges standard. Positive seal self-closing door(s) with 120° stay open feature.
• Shelving
  • Shelves are adjustable in ½” increments. Four (4) interior pan slide kits available for field installation (see catalog).
  • Three (3) heavy duty epoxy coated wire shelves per section standard. Four (4) shelf clips included per shelf (field installed).
• Model Features
  • Incandescent interior light.
  • Certified to 100°F ambient.
  • UL-EPH and CUL for open food product.
  • ENERGY STAR® Qualified - See applicable model list at right.
  • Epoxy coated evaporator to eliminate the potential of corrosion.
  • 6” heavy-duty casters included, two with brakes. HFPS Spec Series standard with 6” legs.
  • Cord and plug pre-wired – 115/60/1 phase. Freezers powered by 115/208-230 volts are designed for field wiring (requires 4-wire electrical circuit, hard-wired).
• 1 Great Design, 4 Finish Options
  • HFP Series: S/S front, S/S sides, aluminum interior
  • HFS Series: S/S front, gray painted sides, s/s interior
  • HFPS Spec Series: Complete S/S exterior and interior
  • HF Standard Series: S/S front, gray painted sides, aluminum interior
