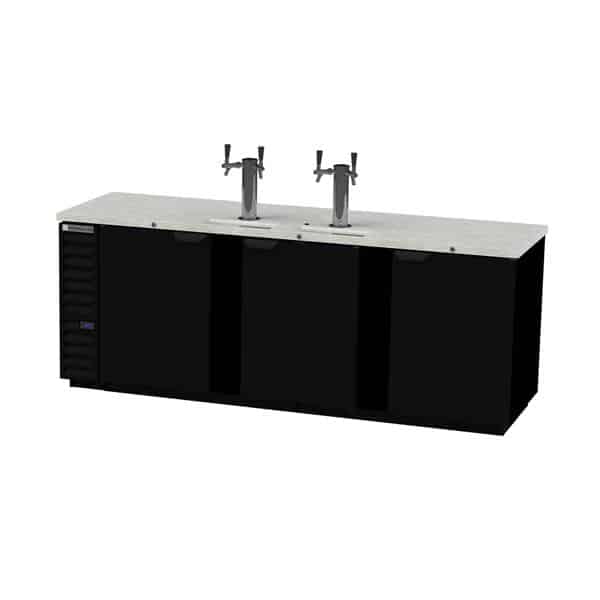

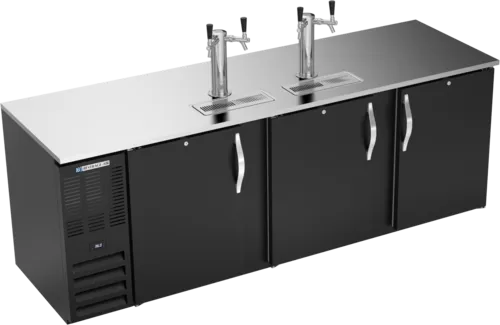

Beverage Air DD94HC-1-B 4 Taps 1/2 Barrel Draft Beer Cooler - Black, 5 Kegs Capacity, 115 Volts
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air DD94HC-1-B Specifications
Number of Taps | 4 Taps |
---|---|
Number of Kegs | 5 Kegs |
Amps | 5.5 Amps |
Installation Type | Built-In |
Construction | Stainless and Galvanized Steel |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Made in | USA |
Type | Beer Dispensers |
Certifications | cULus |
Number of Doors | 3 |
Exterior Finish | Black |
Door Type | Solid |
Sections | 3 |
Style | 1/2 Barrel |
Voltage | 115 Volts |
Width (in) | 95 |
Height (in) | 52.5 |
Depth (in) | 29 |
Weight | 458.00 |
Additional Information on Beverage Air DD94HC-1-B
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air DD94HC-1-B Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air DD94HC-1-B Description
Draft Beer Cooler, 95"W, 29"D, 37.82 cu. ft., (3) doors, (5) keg capacity, door locks, (2) dual faucet columns, black exterior, stainless steel top, galvanized interior with reinforced stainless steel floor, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USAIf your establishment needs a large draft beer serving station the DD94HC-1-B Draft Beer Cooler from Beverage Air is a great option. The interior has 37.82 cu. ft. of refrigerated storage that holds up to five ½ kegs.
The self-closing doors and magnetic door gaskets on this unit prevent excessive power draw while keeping kegs as cold as possible. Door locks come standard for security. The interior features galvanized steel construction for the walls and ceiling and the floor and door sill are made from durable stainless steel. The 3" stainless steel dispensing towers on this unit are insulated to prevent beer from foaming and make sure each glass is served as cold as possible. The top is made from durable stainless steel and comes with built-in drip tray.s that connect to a floor drain through internal routing. This unit features a 3-in-1 draft solution that allows different beverages to be served from a single tap. Silver-lined tubing is 100% effective at preventing the growth of the top four beverage spoiling bacteria.
At the heart of the refrigeration system is a ⅓ HP compressor producing 2392 BTU/hr, the compressor can be installed on the right or left side of the unit. Kegs are kept between 36ºF to 38ºF reliably with an epoxy-coated evaporator and the refrigeration system features fully electronic controls for efficiency. This unit defrosts automatically with a non-electric system to reduce downtime while maintaining peak efficiency. To meet all environmental regulations R290 hydrocarbon refrigerant is used.
An 8’ power cord is provided with a NEMA 5-15-P plug set to connect it to a standard outlet with 115/60/1-ph power at 5.5 amps.
Draft Beer Cooler, 95" W, 28-3/16" D, 39.7 cu. ft., (3) doors, (5) keg capacity, door locks, (2) dual faucet columns, black exterior, stainless steel top, galvanized interior, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 hp, cULus, UL EPH Classified, UL-Sanitation, MADE IN USAStandard Features:
- Cabinet Construction
- Full electronic control
- Field reversible doors
- Two (2) dual tap towers
- Self-closing doors with locks
- 3” Insulated dispensing tower(s)
- Magnetic gaskets provide positive door seal
- Top and drip tray are heavy-duty stainless steel
- Compressor available on left or right, specify at time of unit order
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Drain tube located at bottom front of cooler or connection to floor drain
- Interior is galvanized steel on walls and ceiling, reinforced floor is heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Models feature forced air refrigeration to keep beer in kegs ice cold for dispensing
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine taps
- Turbo taps
- Glass rinser
- Faucet locks
- Wine models
- 1-5 Tap tower
- Low profile casters
- Special 6/pan option
- 2,3 & 4 way manifolds
- Foot pedal door opener
- No draft/hole cover options
- Epoxy coated wire shelves
- Stainless steel interior available
- 3”-6” casters or 6” legs with adjustable plate
