Beverage Air DD58HC-1-C-S 2 Taps 1/2 Barrel Draft Beer Cooler - Stainless Steel, 3 Kegs Capacity, 115 Volts
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air DD58HC-1-C-S Specifications
Number of Taps | 2 Taps |
---|---|
Number of Kegs | 3 Kegs |
Amps | 7.4 Amps |
Installation Type | Built-In |
Construction | Stainless and Galvanized Steel |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Made in | USA |
Type | Beer Dispensers |
Certifications | cULus |
Number of Doors | 2 |
Exterior Finish | Stainless Steel |
Door Type | Solid |
Sections | 2 |
Style | 1/2 Barrel |
Voltage | 115 Volts |
Width (in) | 59 |
Height (in) | 52.5 |
Depth (in) | 29 |
Weight | 376.00 |
Additional Information on Beverage Air DD58HC-1-C-S
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air DD58HC-1-C-S Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air DD58HC-1-C-S Description

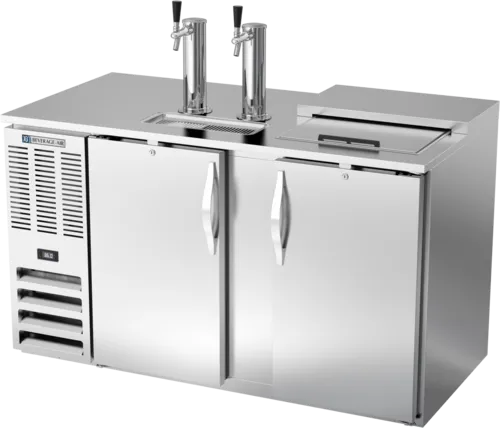

If your establishment needs a reliable draft beer dispenser that also offers storage for glasses, bottles or cans the DD58HC-1-C-S Draft Beer Cooler might be what you need. With its stainless steel exterior finish, it’s sure to maintain its looks for years to come. This unit provides 21.8 cu. ft. of refrigerated space for three ½ kegs.
This unit features self-closing doors that come standard with locks for security. The interior walls and ceiling are made from galvanized steel while the floor and door sill are reinforced with durable stainless steel to handle kegs. This unit has a stainless steel top with a built-in drip tray to catch spills. The drip tray connects to a drain tube at the bottom of the unit to empty into a floor drain. Beer served from this unit is always nice and cool without too much foam thanks to the insulated 3" stainless steel dispensing tower.
Two sliding stainless steel lids provide quick access to glasses, bottles or cans for fast service. Both taps feature the 3-in-1 solution that allows each of them to serve different beverages. This system uses silver-lined tubing that prevents the growth of the top 4 beverage spoiling bacteria.
At the heart of the refrigeration system is a ¼ HP compressor producing 1702 BTU/hr, the compressor can be installed on the right or left side of the unit. The unit's epoxy-coated evaporator keeps the interior between 36ºF and 38ºF reliably with minimal maintenance while fully electronic controls keeps power consumption and stress on the refrigeration system to a minimum. To minimize downtime, this unit features an automatic non-electric defrost cycle. R290 Hydrocarbon refrigerant is used for efficient cooling that has a reduced negative effect on the environment
Power is supplied to the unit with a factory wired 8-foot power cord with a NEMA 5-15P plug set to connect it to a standard outlet that provides 115v/60/1-ph power at 2.5 amps.
Standard Features:
- Cabinet Construction
- Field reversible doors
- Full electronic control
- Self-closing doors with locks
- Two (2) single faucets standard
- 3” Insulated dispensing tower(s)
- Magnetic gaskets provide positive door seal
- Top and drip tray are heavy-duty stainless steel
- Compressor available on left or right, specify at time of unit order
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Drain tube located at bottom front of cooler or connection to floor drain
- Club top, easy glide stainless steel lid for additional storage of glasses, cans or bottles
- Interior is galvanized steel on walls and ceiling, reinforced floor and doorsills are heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Models feature forced air refrigeration to keep beer in kegs ice cold for dispensing
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine taps
- Turbo taps
- Glass rinser
- Faucet locks
- Wine models
- 1- 5 Tap tower
- Low profile casters
- 2,3 & 4 way manifolds
- Foot pedal door opener
- No draft/hole cover options
- Stainless steel exterior & interior available
- 3”-6” casters or 6” legs with adjustable plate
