Beverage Air DD58HC-1-C-B 2 Taps 1/2 Barrel Draft Beer Cooler - Black, 3 Kegs Capacity, 115 Volts
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air DD58HC-1-C-B Specifications
| Number of Taps | 2 Taps |
|---|---|
| Number of Kegs | 3 Kegs |
| Amps | 7.4 Amps |
| Installation Type | Built-In |
| Construction | Stainless and Galvanized Steel |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Made in | USA |
| Type | Beer Dispensers |
| Certifications | cULus |
| Number of Doors | 2 |
| Exterior Finish | Black |
| Door Type | Solid |
| Sections | 2 |
| Style | 1/2 Barrel |
| Voltage | 115 Volts |
| Width (in) | 59 |
| Height (in) | 52.5 |
| Depth (in) | 29 |
| Weight | 353.00 |
Additional Information on Beverage Air DD58HC-1-C-B
manual.pdf
warranty-sheet.pdf
warranty-update.pdf

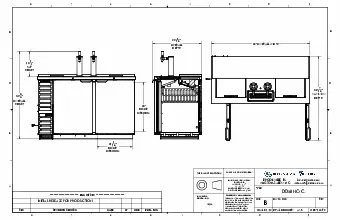

diagram.pdf
beverage-air-dd58hc-1-c-b.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air DD58HC-1-C-B Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air DD58HC-1-C-B Description
Draft Beer Cooler, Club Top, 59"W, 29"D, 21.86 cu. ft., (2) doors, (2) slide back lids - (1) with shelf & (1) with basket, (3) keg capacity, door locks, (2) single faucet columns, black exterior, stainless steel top, galvanized interior with reinforced stainless steel floor, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USAThe Beverage Air DD58HC-1-C-B Draft Beer Cooler is a dual tower club top model for a one-stop-shop for serving perfect frosty glasses of beer. This dispenser is designed to hold three ½ kegs in its 21.86 cu. ft. interior.
The unit features self-closing doors and magnetic door gaskets to prevent excessive power draw while keeping kegs as cold as possible. Door locks come standard for security. The interior features galvanized steel construction for the walls and ceiling and the floor and door sill are made from durable stainless steel. The durable stainless steel top provides the ideal place to serve beverages and comes with a built-in drip tray that connects to a drain tube at the bottom of the unit to empty out into a floor drain. To prevent foaming and make sure beer is always nice and cool the 3” dispensing tower made from stainless steel is insulated.
This club top model has two sliding lids made from stainless steel that easily glide open. Each one has a basket with an epoxy-coated wire shelf to store glasses, cans, or bottles that need to be quickly accessed. Both of the stainless steel taps feature the 3-in-1 Draft Solution from Beverage Air that allows the serving of different beverages without worrying about bacterial growth. This is accomplished with silver-lined tubing that prevents the growth of the top 4 beverage spoiling bacteria.
This unit features a side-mounted refrigeration system with a ¼ HP compressor producing 1702 BTU/hr of cooling. The compressor can be mounted on the left or right to best fit your needs. The fully electronic controls keep the interior between 36ºF and 38ºF as efficiently as possible while an epoxy-coated evaporator makes sure heat is exchanged reliably with minimal service. Eco-friendly R290 hydrocarbon refrigerant has a low impact on the environment and it meets all regulations while proving safe sustainable cooling. The non-electric defrost cycle is extremely convenient and reduces downtime.
The unit is prewired from the factory with an eight-foot power cord that terminates in a NEMA 5-15P plug set to connect to a standard outlet with 115v/60/1-ph power at 2.5 amps.
Standard Features:
- Cabinet Construction
- Field reversible doors
- Full electronic control
- Self-closing doors with locks
- Two (2) single faucets standard
- 3” Insulated dispensing tower(s)
- Magnetic gaskets provide positive door seal
- Top and drip tray are heavy-duty stainless steel
- Compressor available on left or right, specify at time of unit order
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Drain tube located at bottom front of cooler or connection to floor drain
- Club top, easy glide stainless steel lid for additional storage of glasses, cans or bottles
- Interior is galvanized steel on walls and ceiling, reinforced floor and doorsills are heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Models feature forced air refrigeration to keep beer in kegs ice cold for dispensing
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine taps
- Turbo taps
- Glass rinser
- Faucet locks
- Wine models
- 1- 5 Tap tower
- Low profile casters
- 2,3 & 4 way manifolds
- Foot pedal door opener
- No draft/hole cover options
- Stainless steel exterior & interior available
- 3”-6” casters or 6” legs with adjustable plate
