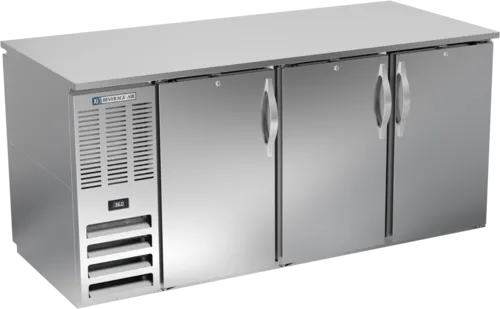

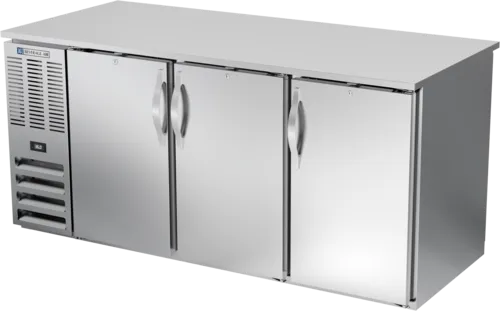

Beverage Air BB72HC-1-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet

Refrigerated Back Bar Pass-Thru Storage Cabinet, three-section, 72"W, 34" H, 22.1 cu. ft. capacity, (6) solid doors with locks, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, galvanized sub-top, galvanized interior with stainless steel floor, stainless steel exterior, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The Beverage Air BB72HC-1-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet is a great solution for establishments that require refrigerated back bar storage that can be accessed from both sides. With three doors on either side, items can be clearly seen and easily accessed. With 22.1 cu. ft. this unit has plenty of storage capacity, it can also hold three ½ kegs.

The doors are self-closing to prevent them from being left ajar. Two epoxy-coated wire shelves are included in each section to maximize the use of space while organizing items. In a busy kitchen, users will often need to access multiple items from a refrigerator. To simplify this the doors have a stay-open feature. When the doors are closed magnetic gaskets make sure the seals are always airtight. This back bar refrigerator features a balanced forced-air refrigeration system that can rapidly cool products inside.

This back bar refrigerator has a side-mounted self-contained refrigeration system that provides efficient cooling with a ⅓ HP compressor that produces 1942 BTU/hr of cooling. The refrigeration system can be on the left or right based on your installation needs. The interior is kept at a temperature between 36ºF and 38ºF by the fully electronic controls. An epoxy-coated evaporator coil will make sure reliable refrigeration with minimal maintenance can be provided for years to come. Defrosting is accomplished automatically with a non-electric system to reduce downtime while keeping the interior free of frost. The refrigerant used is R290, an environmentally-friendly hydrocarbon that meets all environmental regulations.

Power is supplied by a factory-installed 8-foot power cable with a NEMA 5-15P plug set for use with standard 115v/60/1-ph at 3.1 amps.

Add the Beverage Air BB72HC-1-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet to your bar and reap the benefits of having storage cabinets behind the bar. This backbar storage cabinet is 34 inches tall, 72 inches wide, and 25 inches deep.

• BB Hinged Solid Doors - Pass-Thru Back Bar Refrigerators
  • 23” base Pass-Thru, self-contained refrigerators come in two widths of 48” and 72.”
  • 23” base shallow depth units are available in two heights: 34” height with standard galvanized steel top for under shelf application and 36” height when adapted with a 2” stainless steel top (specify –27). Depth is 23 1/2” from face of door to opposite side of cabinet. Handle projects 1/2.”
• Cabinet Construction
  • Galvanized sub top standard.
  • Interior, incandescent lighting standard.
  • 2” Stainless steel top optional (specify –27).
  • Two (2) epoxy-coated shelves per section standard.
  • Stainless steel exterior option available (-S models).
  • Field-reversible doors with 90° stay-open feature standard.
  • Standard, cabinet exterior construction includes black steel finish.
  • Standard interior construction utilizes galvanized steel walls and ceiling.
  • Hinged solid doors are self-closing and include a stay-open feature and lock.
  • Reinforced floor made from heavy-duty stainless steel to provide long lasting service.
  • Environmentally friendly foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
• Refrigeration System
  • Remote refrigeration models available.
  • Evaporator located above condensing unit permits full use of interior spaces.
  • Refrigeration is fully accessible behind grille to right side of cabinet and is 100% front breathing.
  • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
• Available Options
  • Wire shelf dividers
  • 3” or 6” casters; 6” legs
  • Open-Food Rated models available
  • WINE models available (40°-60°F models)
• Electrical
  • Units are pre- wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.
