Beverage Air BB72HC-1-F-PT-B Refrigerated Open Food Rated Back Bar Pass-Thru

SKU#: BB72HC-1-F-PT-B
Made in USA
Beverage Air BB72HC-1-F-PT-B Refrigerated Open Food Rated Back Bar Pass-Thru
Free Freight?
Quick Ship
$7,738.80
$6,752.90
or enjoy small payments $145.12/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 7739
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air BB72HC-1-F-PT-B Specifications

Number of Kegs3 Kegs
ConstructionStainless and Galvanized Steel
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Door StyleSwing
Number of Doors6
Capacity22.1 cu. ft.
Door TypeSolid
Sections3
Voltage115 Volts
Width (in)72
Height (in)34
Depth (in)27.38
Weight366.00

Additional Information on Beverage Air BB72HC-1-F-PT-B

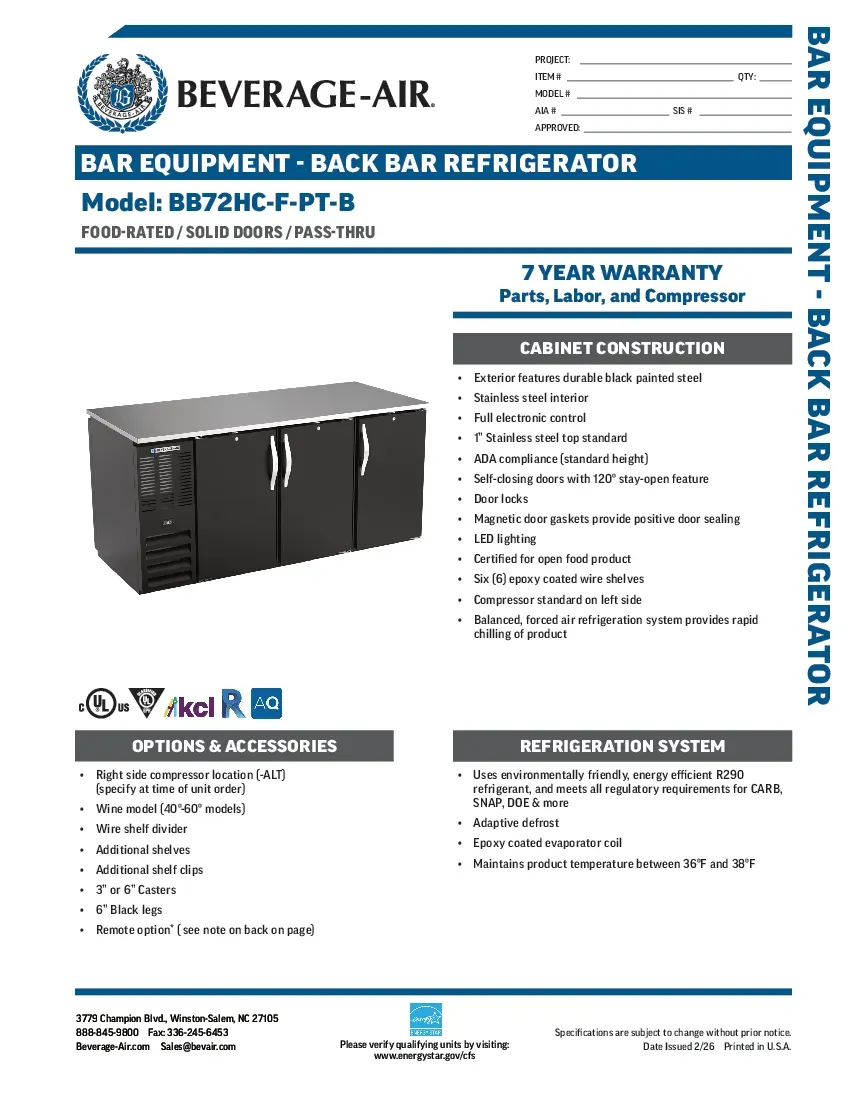

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air BB72HC-1-F-PT-B Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air BB72HC-1-F-PT-B Description

Refrigerated Open Food Rated Back Bar Pass-Thru Storage Cabinet, three-section, 72"W, 34" H, 22.1 cu. ft. capacity, (6) solid doors with locks, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, galvanized sub-top, stainless steel interior, meets NSF-Standard 7 for open food container, black exterior finish, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The Beverage Air BB72HC-1-F-PT-B Refrigerated Open Food Rated Back Bar Pass-Thru provides you with more than enough space to store your bar items. This backbar storage cabinet is 34 inches tall, 72 inches wide, and 25 inches deep.

Standard Features:
  • BB Hinged Solid Doors - Pass-Thru Back Bar Refrigerators Open Food Rated
    • Food Rated models are certified for bottled beverages, packaged food, and open food.
    • 23” base Pass-Thru, self-contained refrigerators come in two widths of 48” and 72.”
    • 23” base shallow depth units are available in two heights: 34” height with standard galvanized steel top for under shelf application and 36” height when adapted with a 2” stainless steel top (specify –27). Depth is 23 1/2” from face of door to opposite side of cabinet. Handle projects 1/2.”
  • Cabinet Construction
    • Interior, incandescent lighting standard.
    • Two (2) epoxy-coated shelves per section standard.
    • Field-reversible doors with 90° stay-open feature standard.
    • Galvanized sub top standard. 2” stainless steel top optional (specify –27).
    • Hinged solid doors are self-closing and include a stay-open feature and lock.
    • All stainless steel interior with radius corners is easy to keep clean and meets NSF
    • Standard, cabinet exterior construction includes black steel finish. Stainless steel exterior option available (-S models).
    • Standard 7 for open food containers. Reinforced floor made from heavy-duty stainless steel to provide long lasting service.
    • Environmentally friendly foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
  • Refrigeration System
    • Remote refrigeration models available.
    • Evaporator located above condensing unit permits full use of interior spaces.
    • Refrigeration is fully accessible behind grille to right side of cabinet and is 100% front breathing.
    • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
  • Electrical Connection
    • Units are pre- wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.
  • Available Options
    • Wire shelf dividers
    • 3” or 6” casters; 6” legs
    • WINE models available (40°-60°F models)

Options for Beverage Air BB72HC-1-F-PT-B

Export crating
Wine thermostat
Stainless steel options
Delivery
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 3.1 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
