  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air BB48HC-1-FG-PT-S Specifications

Number of Kegs2 Kegs
ConstructionStainless and Galvanized Steel
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Door StyleSwing
Number of Doors4
Capacity13.6 cu. ft.
ColorStainless Steel
Door TypeGlass
Sections2
Voltage115 Volts
Width (in)48
Height (in)34
Depth (in)27.38
Weight320.00

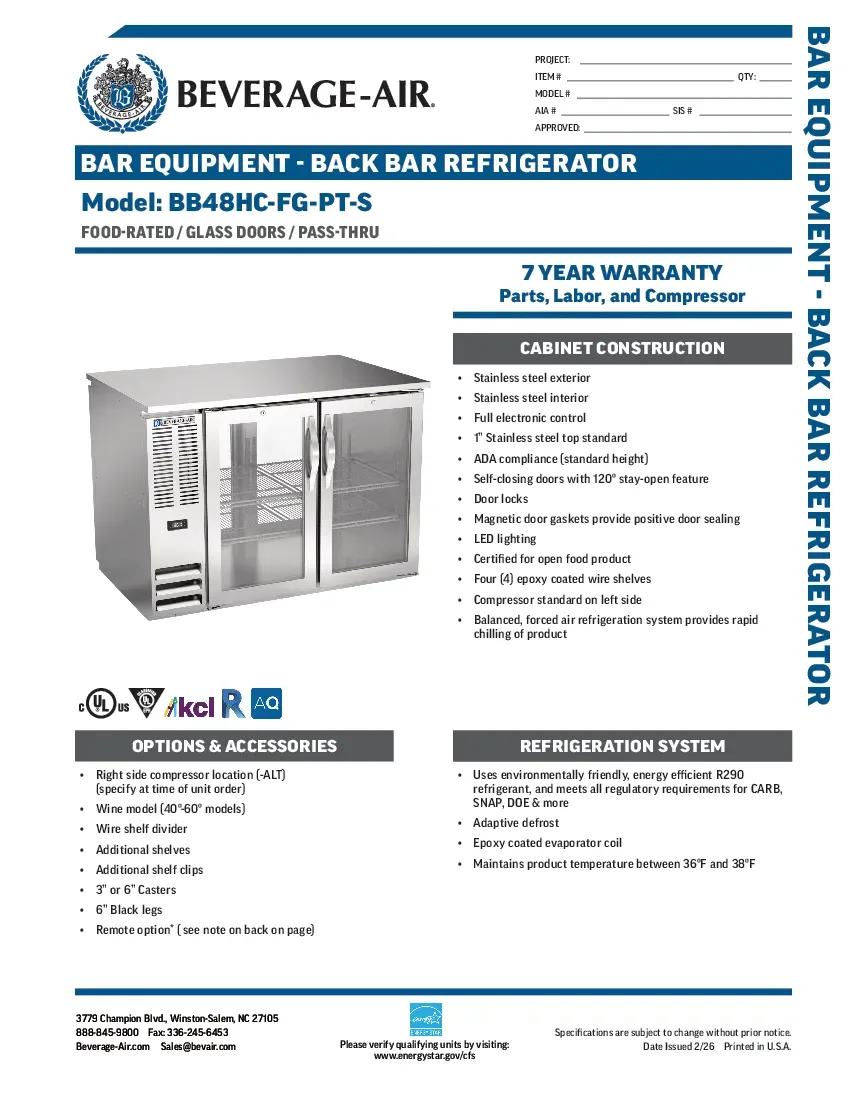

Additional Information on Beverage Air BB48HC-1-FG-PT-S

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air BB48HC-1-FG-PT-S Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air BB48HC-1-FG-PT-S Description

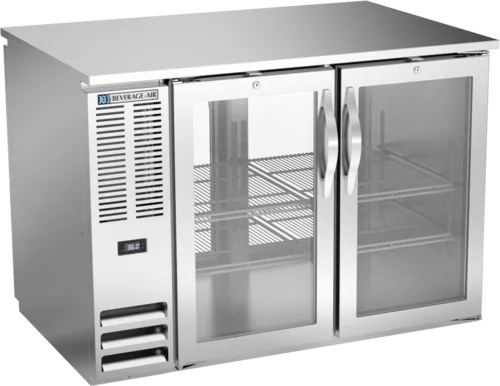

Refrigerated Pass-Thru Back Bar Open Food Rated Refrigerator, two-section, 48"W, 34" H, 13.6 cu. ft. capacity, (4) glass doors with locks, (4) epoxy coated steel shelves, (2) 1/2 barrel keg, LED interior lighting, stainless steel exterior, galvanized sub top, stainless steel interior, meets NSF-Standard 7 for open food container, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

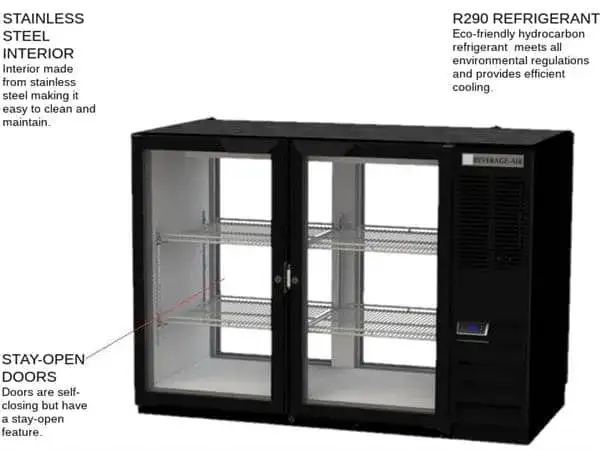

For busy establishments having the ability to quickly access items from either side of the bar is a major benefit. The Beverage Air BB48HC-1-FG-PT-S Refrigerated Pass-Thru Back Bar Open Food Rated provides this ability with glass doors on either side that allow workers and customers to easily see what’s available. The exterior is stainless steel for a durable finish that is easy to clean and will maintain its appearance. This back bar refrigerator has 13.6 cu. ft. of food rated refrigerated space and can hold two ½ kegs.

The refrigerated cabinets have self-closing doors to prevent excessive power draw while maintaining the temperature inside. Two epoxy-coated steel shelves inside each cabinet provide plenty of options for arranging items. When users need to access multiple items the doors have a stay-open feature. To ensure an airtight seal, the doors feature magnetic gaskets. The forced-air refrigeration system provides balanced cooling that can quickly make the mercury plummet.

The side-mounted refrigeration system provides efficient cooling and can be located on either the left or right of the unit based on your needs. The ⅓ HP compressor produces 1942 BTU/hr of cooling. A temperature between 36ºF and 38ºF is maintained efficiently by the unit’s fully electronic controls. For additional durability, the evaporator features an epoxy coating. The non-electric automatic defrost cycle keeps the unit running efficiently while keeping downtime to a minimum. R290 refrigerant is eco-friendly and provides efficient cooling while meeting all regulations.

The unit is prewired from the factory with an eight-foot power cord that terminates in a NEMA 5-15P plug set to connect to a standard outlet with 115v/60/1-ph power at 3.1 amps.

Beverage Air BB48HC-1-FG-PT-S Refrigerated Pass-Thru Back Bar Open Food Rated

Give your bar area the upgrade it deserves with the stylish Beverage Air BB48HC-1-FG-PT-S Refrigerated Pass-Thru Back Bar Open Food Rated. This backbar storage cabinet is 34 inches tall, 48 inches wide, and 25 inches deep.

Standard Features:
  • BB Pass-Thru Glass Door
  • Back Bar Refrigerator Open Food Rated Series
    • Food Rated models are certified for bottled beverages, packaged food, and open food.
    • Pass-thru back bar storage cabinets come in four basic, self-contained models up to 95” wide.
    • Handles project 1 3/4.” One size self-contained, end mount model (BB78E) and two remote models (BB58R and BB78R) complete the 27” base series of back bars.
    • Overall height is 37 1/4.” Depth is 27” from face of door to back of cabinet. Depth is 23 1/2” from face of door to back of cabinet on Shallow Depth models (BB48 & BB72).
  • Cabinet Construction
    • Stainless exterior options available.
    • Glass doors are self-closing and include key locks.
    • Magnetic door gaskets provide positive door sealing.
    • Glass doors are field reversible with hinge kit accessory.
    • Equipped with 2” stainless steel top, BB48 and BB72 is optional.
    • Standard, cabinet exterior construction is made of a black steel finish.
    • Reinforced floor and door sills are made from heavy-duty stainless steel to provide long lasting service.
    • All stainless steel interior with radius corners is easy to keep clean and meets NSF Standard 7 for open food containers.
    • Environmentally friendly foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
  • Refrigeration System
    • Remote refrigeration models include expansion valve installed.
    • Condensate elimination is automatic and non-electric (except remotes).
    • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
  • Special Features
    • Keg storage is maximized in lieu of shelf storage when required.
  • Electrical Connection
    • Units wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.

Options for Beverage Air BB48HC-1-FG-PT-S

Export crating
Wine thermostat
Stainless steel options
Delivery
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 3.1 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
